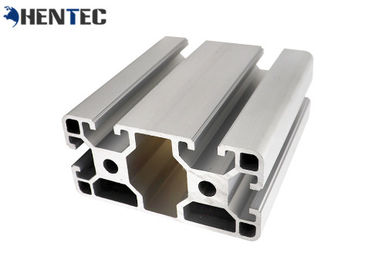

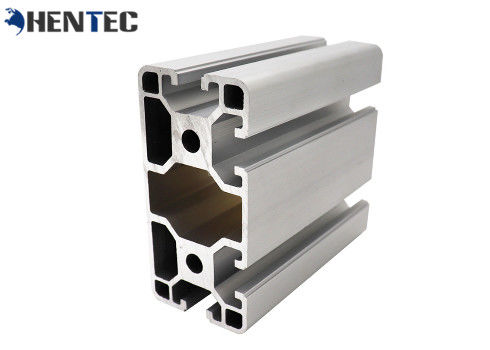

OEM Aluminium Profile System Construction Aluminium Profiles For Assembly Line

China OEM Aluminium Profile System Construction Aluminium Profiles For Assembly Line supplier
OEM Aluminium Profile System Construction Aluminium Profiles For Assembly Line supplier OEM Aluminium Profile System Construction Aluminium Profiles For Assembly Line supplier

Large Image :  OEM Aluminium Profile System Construction Aluminium Profiles For Assembly Line

Product Details:

Place of Origin: China
Brand Name: HENTEC
Certification: CA ,CE ,ISO14001:2004, ISO9001:2000

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Contact Now
Detailed Product Description
Product Name: Industrial Aluminium Profile Alloy: 6063,6061
Material: Aluminum Suface Treatment: Mill Finished,Anodized Powder Coated,Drawbench,Steel Polished
Deep Process: Milling, Drilling, Cutting Temper: T5, T6
High Light:

modular aluminium profile system

,

aluminium extrusion frame system

OEM Industrial Aluminum Extrusion Profiles For Assembly Line





We have Germany imported machines and professional engineers.In this case,we can do high technics customized aluminium alloy extrusion and profile as per your drawings or samples.



Product Specification





Item Aluminum industry profile
Material 6061-T6,6063-T6,6082-T6 etc.
Size / Thickness General profiles thickness from 0.8 to 5.0mm, length from 3m-6m or customized available;
Anodized protection film thickness from 8~25 um, powder coating from 40 ~ 120 um.
Shape square, round, t shaped, rectangular, customized
Surface treatment Mill finishes;Anodized; Powder coated;Wooden grain, Machine/Acid polished and etc .
Colors silver, black, blue, wood color, RAL powder coating color and so on
MOQ 500kgs for each item
FOB Port Shanghai
payment terms T/T 30% for deposit, balance before shipping.
settlement term Charge by final actual weight or by drawing theoretical weight.
Certificate and
Standard
EN755, ASTMB221, DIN Standard













TABLE OF CHEMICAL COMPOSITION OF ALUMINUM ALLOY

Alloy

Si

Mg

Fe

Cu

Mn

Zn

Cr

Ti

Al

6063

0.2-0.6

0.45-0.9

< 0.35

< 0.1

< 0.1

< 0.1

< 0.1

< 0.1

Surplus

6061

0.4-0.8

0.8-1.2

< 0.7

0.15-0.4

< 0.15

< 0.25

0.04-0.35

< 0.15

Surplus
6005 0.5-0.9 0.4-0.7 0.35 0.3 0.50 0.2 0.3 0.1 Surplus

6082
0.7-1.3 0.6-1.2
0.5

≤0.1
0.4-1.0
≤0.2

≤0.25

< 0.1

Surplus






ADODIZINMG QUALITY

Grade

corrosion resistance

abrasive resistance

CASS test

alkaline dropping test

sandtrial
Abrasion coefficient
f,g/um

hours

grade

AA10

16

≥ 9

≥ 50

≥ 300

AA15

32

≥ 9

≥ 75

≥ 300

AA20

56

≥ 9

≥ 100

≥ 300

AA25

72

≥ 9

≥ 125

≥ 300


OEM Aluminium Profile System Construction Aluminium Profiles For Assembly Line 0


Introduction Of Constmart Profile:
1. Material: 6063,6061,6060,etc.
2. Temper: T5 or T6
3. Finish: Mill finish, anodizing, powder coating, electrophoresis, wooden transfer or pvdf/carbon-flouride coated, polishing, brushing, sand blasting
4. Various colors: Silver, bronze, black, gold, blue,grey, champagne, bright, etc.
5. Machining: Cutting, punching, drilling, tapping, milling, bending, welding, CNC etc.
6. Various in styles and sizes:
A) Aluminum alloy bars: 6000 series, normal material such as 6063,6005,6061,6060, special materials such as 6082 etc.
B) Aluminum profiles:
---General aluminum profiles (various shapes of pipes/tubes, angles, T or U shapes etc.)
--- Industrial aluminum profiles ( TV frames, Rim for bicycles and motorcycles, Heat sink profiles, Furniture, Ladder, Guide Rail, Leisure materials, Shower Room, Solar Module Frame, Motor Shell, Pipeline Integration etc.)
--- Construction aluminum profiles
7. Certification: ISO9001,SGS,ROHS,TUV
8. Strong technical development ability, can provide high intensity and high ductility aluminum profiles, to meet customers' different requirements.
9. OEM service available, customized design available







Applications:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.





OEM Aluminium Profile System Construction Aluminium Profiles For Assembly Line 1





Specifications:



1. Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%





OEM Aluminium Profile System Construction Aluminium Profiles For Assembly Line 2





Competitive Advantage:



1) Engineering design and support.

2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3) High Quality system, strictly inspection during production and whole inspection before package.

4) Good performance, product warranty for 15 years.





           OEM Aluminium Profile System Construction Aluminium Profiles For Assembly Line 3
