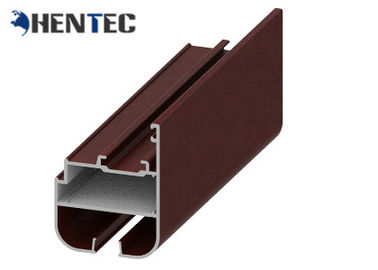

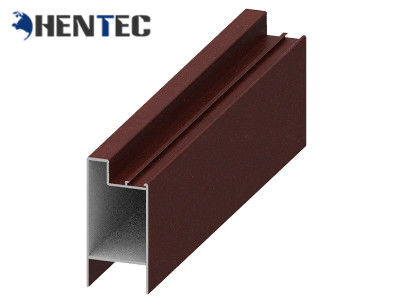

6063 6061 Standard Aluminum Window Extrusion Profiles CA CE Certified

China 6063 6061 Standard Aluminum Window Extrusion Profiles CA CE Certified supplier
6063 6061 Standard Aluminum Window Extrusion Profiles CA CE Certified supplier 6063 6061 Standard Aluminum Window Extrusion Profiles CA CE Certified supplier

Large Image :  6063 6061 Standard Aluminum Window Extrusion Profiles CA CE Certified

Product Details:

Place of Origin: China
Brand Name: HENTEC,KUNTAI
Certification: CA ,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Packaging Details: EP Paper ,kraft and pallet
Delivery Time: 20days
Payment Terms: T/T or L/C
Supply Ability: 100 000 ton each month
Contact Now
Detailed Product Description
Product Name: Aluminum Window Extrusion Profiles Alloy: 6063,6061
Material: Aluminum Alloy Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T4, T5, T6



Powder Painted Aluminum Window Extrusion Profiles / Standard Aluminum Extrusion Profiles



Description :

(1). Product: aluminium profile

(2). 20 years warranty.
(3). High corrosion resistance.
(4). 5-10 years weather resistance.
(5). Good wear resistance & anti-scratch.
(6). Size customized.

More Information:
1. Material: Aluminium alloy 6063, 6061.
2. Temper: T5, T6.
3. Quality standard: DIN; AAMA; AS/NZS; CHINAGB.
4. Surface treatment: Mill finish, anodized, powder coated, wood grain, polished, brushed, electrophoresis, etc.
5. Color avalilable: Anyone is available based on your color samples.
6. Packing details: Shrinking film; Plastic & kraft paper; Wooden pallet
Carton packing; By customer's requirements.
7. Samples Time: Normally, 2-3 weeks.
8. Delivery: 25-30 days for mass production.
9. Production Capacity: 6000MT/Month
10. MOQ: It's based on the drawings. Basically, it's 1 ton.
11. Port:  Shanghai;   As per requested.





Applications:



Hotel | Home | Commercial Building | Closet | Bathroom| Curtain Wall | Industry | And Others



Specifications:



1.Primary Technical Data



1) Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%







Competitive Advantage:



1. 22 years' experiences of manufacturing, 12 years' exporting experiences .
2. STRONG R&D: Help customers finalize the design, strong tool design ability,excellent pressing and surface treament technology.
3.Strict quality management: ISO Administration system.
4. 24 hours on-line communication.Professional, Patient, Flexible.
5. High capacity of manufaturing and wide range of products.
6. Be able to provide secondary fabricating.
7. Small order isaccepted.
8. Be able to provide one-stop supply solution.
9. Multiple payment methods: TT, LC.
