Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Surface: | Bright Anodize |
|---|---|---|---|
| Warranty: | 15 Years | Alloy: | 6063/6060/6005/6061 |
| Water Proof: | Water Proof | Logo: | Silk Screen |
| High Light: | aluminum electrical enclosures,extruded aluminum housing |
||

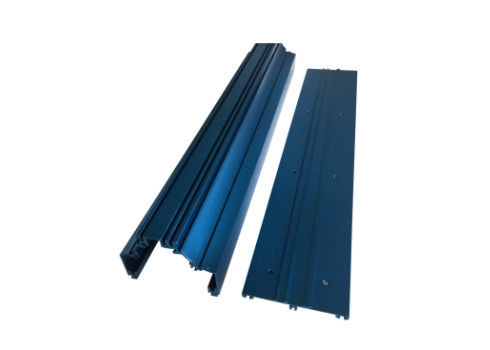

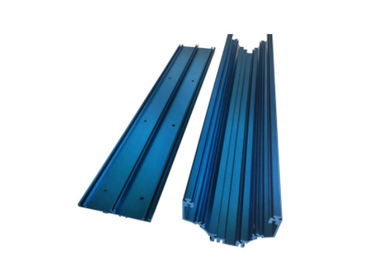

Bright Blue Anodizing Aluminum Electrical Shell / 6063 / 6061
Hentec Industry ,established in 2004 ,locates in Jiangyin China Aluminum Industrial City,over past 15 years, professional manufacturing of aluminum enclosure ,very good at customized design , cutout , finish treatment and silkscreen .
Advance:
| Our Advance |
| (1). Direct from factory |
| (2). Low(1-2%)scrap rate |
| (3). All kinds of metal&plastic material is available |
| (4). High Tolerance: +/- 0.02mm(Metal shaft), +/-0.03mm(plastic) |
| (5). 100% inspection(offer QC report) |
| (6). Sample is available |
| (7). Short lead time (5-20 days). |
| (8). One-stop customized service |
Description:
| Raw material: | Aluminum alloy 6000 series |
| Surface treatment: | mill-finished, anodized, electrophoresis, powder coating, polishing , sand blasting , and fluorocarbon painting. |
| Stylish designs: | per drawing, re-design as requested or market needs. |
| Credible quality: | ISO9001 |
| Use: | doors and windows, kitchen, equipment frame, industry, curtain wall, solar, decorations, transportation tools, and other constructions or building area. |
| Delivery detail: | 15-20days after received payment |
Surface treatment
| Surface treatment | Mill-finish,Anodized,Powder coated,Electropheresis,Wood grain,Brushed, Polishing |
| Anodized thickness | 8 - 25um |
| Anodized Color | Silver,black,chanpagne,bronze,gold or customized |
| Electropheresis Color | Silver,black,chanpagne,bronze,gold or customized |
| Powder coated Color | All color by RAL ,or customer's color sample |
| Powder coated thickness | 40 - 120um |
| Wood grain | customized |
| Guarantee | surface Brightly can be stable for 10 - 20years |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2)Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
