6061 Alloy Anodized Aluminum Heatsink Extrusion Profiles

China Hentec Industry Co.,Ltd certification
China Hentec Industry Co.,Ltd certification
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

Le succès de ce nouveau projet dépend du support de l’équipe HENTEC en termes de technologie de traitement. Merci à HENTEC de nous aider à contrôler les coûts de manière efficace et à répondre à nos exigences en termes de haute qualité. Nous nous réjouissons de notre future collaboration!

—— Yann Pauwels

I'm Online Chat Now

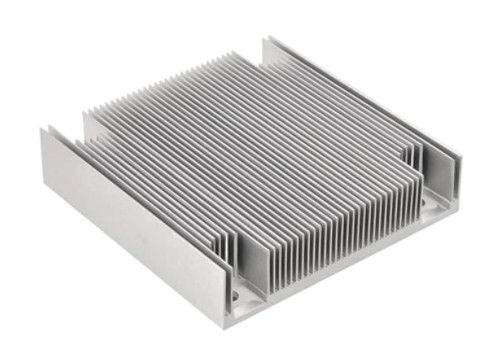

6061 Alloy Anodized Aluminum Heatsink Extrusion Profiles

6061 Alloy Anodized Aluminum Heatsink Extrusion Profiles
6061 Alloy Anodized Aluminum Heatsink Extrusion Profiles 6061 Alloy Anodized Aluminum Heatsink Extrusion Profiles

Large Image :  6061 Alloy Anodized Aluminum Heatsink Extrusion Profiles

Product Details:
Place of Origin: China
Brand Name: HENTEC
Certification: CA ,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Aluminum Heatsink Extrusion Profiles Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T4, T5, T6 ,T66
High Light:

heatsink extrusion profiles

,

extruded heat sink profiles

Anodized Aluminum Heatsink Extrusion Profiles , Silvery / Black




 Our Advantages:
1. 17+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to 40+ countries;
2. ISO: 9001:2008,  RoHS, SGS, Reach, D&B

4. 100% new material
5. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
6. Effective and strong technical support (30+ engineers) and excellent sales services .
7. Sufficient production capacity (22 extrusion lines; 3+ CNC machines).
8. Efficient communication (48-hour quote lead time).





Production Information




Alloy:
6063 6061 6060 6005 6082
Temper : T5 T6 T4
Standard: DIN AAMA AS CHINAGB
Certification: ISO9001: 2008.
Surface Finish: Mill finish Anodizing Powder Coating Wood Grain Electrophoresis Polished Brushed
Color: Anodizing: Silver, bronze, champagne,  golden , etc.
Anodizing thickness is up to 25um.
Powder Coating: White, black, bronze, grey, green, etc .
Powder coating thickness is more than 60um.
Electrophoresis: Silver, nickel, golden yellow, black, champagne, etc
Polishing Silver, nickel, golden yellow, black, etc
Brushing: Silver, nickel, golden yellow, black, bronze, etc
Machining: Cutting, punching, drilling, bending, weld, mill, CNC, etc.
OEM customized aluminium profiles are available.


Technology Supports

  1. Engineering Design.
  2. Quality Standard: China GB, according to the Drawing and the Customer's Details.
  3. Auto CAD.




Specifications:
1. Primary Technical Data
1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest


2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%

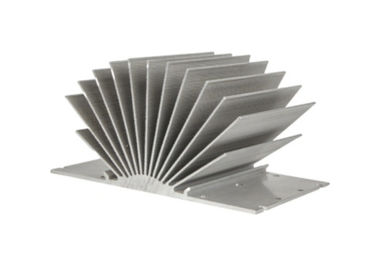

6060 6061 extruded aluminum heatsink for Led Light ROHS / SGS
Competitive Advantage:
We can offer professional Manufacturing and exporting service, OEM/ODM for Metal & Plastic parts in China. All the parts manufactured by CNC Lathe & Milling Machine Center.
     6061 Alloy Anodized Aluminum Heatsink Extrusion Profiles 1
