Product Details:
Payment & Shipping Terms:
|
Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
---|---|---|---|
Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 ,T66 |
Highlight: | audio aluminum heatsink extrusion profiles,mill finished heatsink extrusion profiles,aluminum heatsink extrusion profiles T4 |

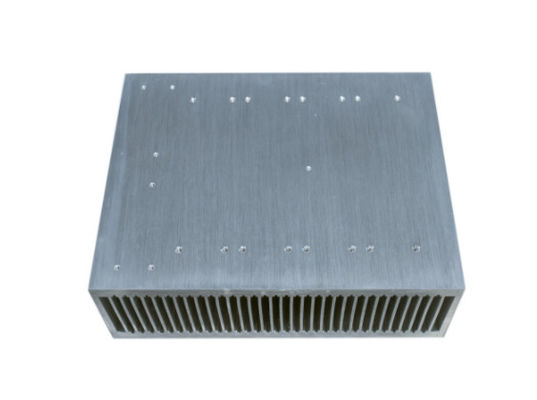

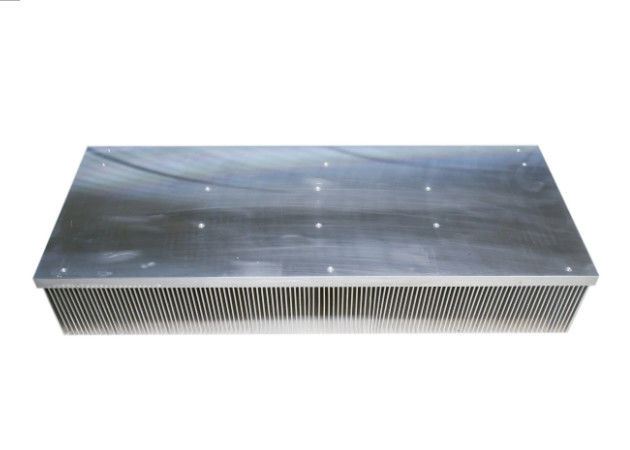

Anodised Standard Aluminium Extrusion Heat Sink For Audio / Audio Heat Sink
Our Advantages:
1. 17+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to 40+ countries;
2. ISO: 9001:2008, RoHS, SGS, Reach, D&B
3. 100% new material
4. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
5. Effective and strong technical support (30+ engineers) and excellent sales services .
6. Sufficient production capacity (44 extrusion lines; 3+ CNC machines).
7. Efficient communication (48-hour quote lead time).
Production Information
Product type | Audio Heat Sink |
Material | Aluminum 6063 |
Sizes | Have more than 1000 existing modes, also can be customized design. |
Production Process | Profile extrusion, Cutting,Deburring, CNC Processing, Stamping,(drilling holes, tapping,Chamfering,Milling),(Brushing, Sandblasting, soda boiling,polish)Surface Treatment(Anodization, Painting, E-coating, Nickel plating), 100%Inspection , Assembly,Package, etc. |
Surface oxidation | Black anodizing, Clear anodization,Painting,E-coating |
Devices | extrusion lines,Cutting machines, CNC machines, Stamping machines,milling machines, drilling machines,polish machine,laser machines,anodization line,assembly lines. etc. |
Certificates &Standard | ISO9001:2015, SGS, ROHS |
MOQ | There is no MOQ requirements if we keep stock for existing models, MOQ can be negotiated. |
Packing | Foam, Carton, Wooden case, which is suitable for. |
Payment Term | T/T, L/C |
Lead Time | Normally 7-20 working days after deposit received. |
Technology Supports
Specifications:
1. Primary Technical Data
1)Chemical composition
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
We can offer professional Manufacturing and exporting service, OEM/ODM for Metal & Plastic parts in China. All the parts manufactured by CNC Lathe & Milling Machine Center.
