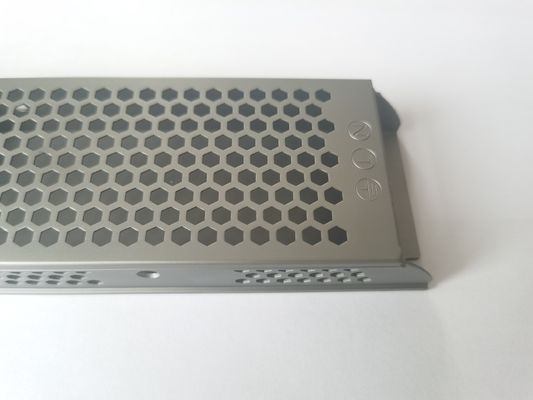

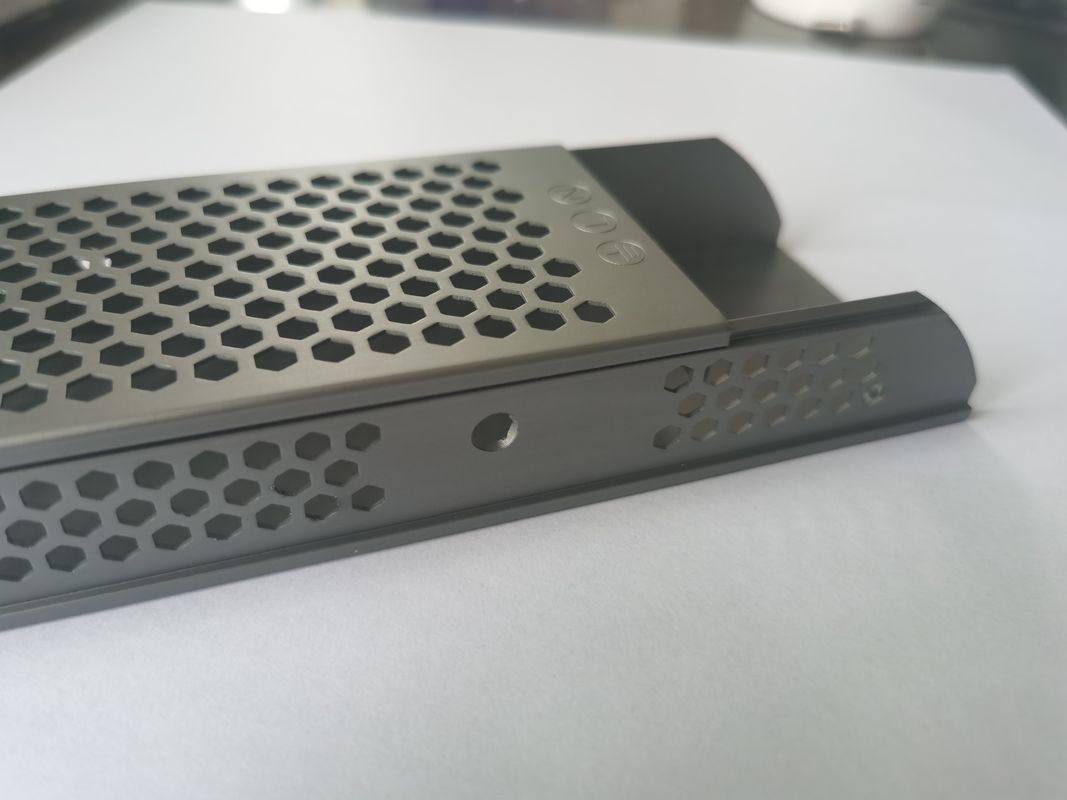

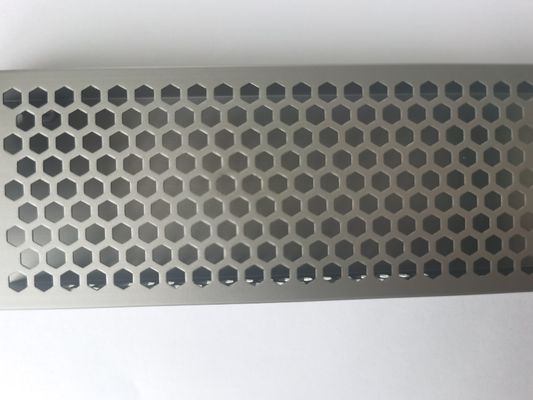

T5 T6 Custom Aluminum Enclosures Electronics Compliant RoHS

T5 T6 Custom Aluminum Enclosures Electronics Compliant RoHS
T5 T6 Custom Aluminum Enclosures Electronics Compliant RoHS T5 T6 Custom Aluminum Enclosures Electronics Compliant RoHS T5 T6 Custom Aluminum Enclosures Electronics Compliant RoHS

Large Image :  T5 T6 Custom Aluminum Enclosures Electronics Compliant RoHS

Product Details:
Place of Origin: China
Brand Name: HENTEC
Certification: CA ,CE
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Aluminum Heatsink Extrusion Profile Alloy: 6063,6061
Material: Aluminium Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T5, T6
High Light:

T6 Custom Aluminum Enclosures Electronics

,

T5 Custom Aluminum Enclosures Electronics

,

Custom Aluminum Enclosures Electronics Compliant RoHS

Electrical Enclosure Aluminium Extruded Profiles For Electrical , Compliant With RoHS



1. Reliable quality (ISO9001:2008  certified).

2. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house.

3. Effective and strong technical support and excellent sales services.

4. Sufficient production capacity (only 65% occupied).

5. Efficient communication (48-hour quote lead time).

6. Compliant with RoHS Test.



Product Description

Material 6000 series Aluminium Alloy
Temper T4, T5, T6
Shape Square, round, rectangular, special shape customized
Size / Thickness Profiles thickness : 0.8 to 5.0mm
Anodize film thickness : 8~15 um
Powder coating thickness : 40 ~ 120 um
Length : ≤6000mm / customized available
Deep process CNC, machining, drilling, milling, cutting, punching, bending, assembling
Surface finishing Sand blasting, Polished, Brushed ,Powder coating, Wood grain , Anodized etc.
Colors Color sheet / Customized color available
Application - For Heat sinks for car amplifier enclosure
- For Heat sinks for LED lighting, high-power LED street lighting, stage lighting, LED tunnel lighting etc
- For motor shell
- For LED lighting/TV frame
- For hook of LED stage lighting
- For industry assembly lines equipment
- For other OEM design size and dimension



Warranty :
1. GB5237-2008 equal to EN12020-1.2(2001);
2. GB6892-2006 equal to DIN 1725
3. Within 15 years without color changing, all life without surface peeling off;

Moulding :
 we open the new die within 10days






Applications:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.





Specifications:



1. Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%



2. Specifications:



Excellent material for smooth and subtle edges.

Elegant appearance.

Surface treatment: colorful anodized or electrostatic powder coated.

Suitable for constructions and other industrial purposes.

Customized surface finishes are welcome.





Competitive Advantage:



1) Engineering design and support.

2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3) High Quality system, strictly inspection during production and whole inspection before package.

4) Good performance, product warranty for 15 years.
