| Material: | Aluminum | Color: | Customized |
|---|---|---|---|
| Surface: | Powder Painted | Logal Printing: | OEM |
| Type: | Aluminum Shell | Waterproof: | Waterproof |
| High Light: | 6082 extruded aluminum box,aluminium extrusion enclosure powder painted,extruded aluminum box powder painted |
||

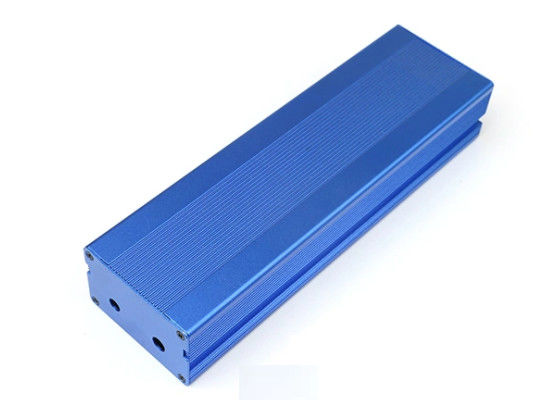

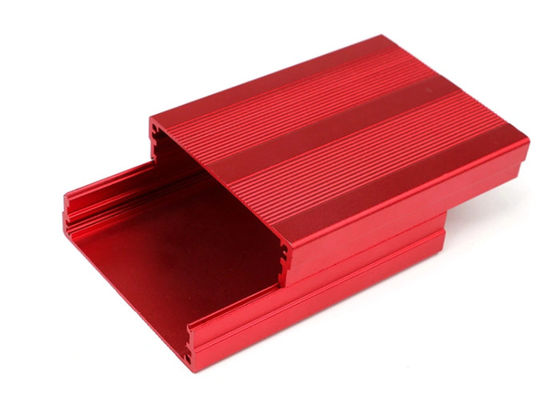

Wateproof Aluminum Electrical Shell / Electrical Junction Box / Powder Painted
MetalPlus manufacture a wide range of high quality and customized standardized enclosures. We offer a variety of electronic industrial enclosures: aluminum profile housing, , die-cast aluminum box , standard aluminum chassis, rack mount housing, CNC precision machined parts, etc...
One of our special advantages is the custom aluminum profile housing. Use state-of-the-art CNC processing equipment to manufacture enclosures based on customer's exact specifications. We can deliver finished products on time and in a timely manner.
Product Details
| Aluminum alloy | General alloy:6063, 6061,6005, 6060,6082 etc. |
| Temper | T4,T5,T6,T66 etc |
| Standard | GB5237-2017 Chinese Standard |
| Surface Finish | Mill finish |
| Sandblasting | |
| Polishing | |
| Brushing | |
| Anodizing:Normal Color , Customized Color | |
| Electrophoresis:Normal Color , Customized Color | |
| Power coating: Normal Color , Customized Color | |
| Wood Imitation: Normal Color, Special Color,3D wooden grain | |
| Fabrication Abilities | Precious Cutting,Drilling,Tapping,Milling,Punching,Bending,Welding.etc |
| Payment terms | 30% deposit before starting order,70% Balance before shipping by TT. |
| Packing | EPE,Kraft Paper,Protect film,Shrink film |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2)Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
