Anodized OEM 6000 T4 Aluminum Extrusion Enclosure Housing

large.img.alt
large.img.alt
video play

Large Image :  Anodized OEM 6000 T4 Aluminum Extrusion Enclosure Housing

Product Details:
Place of Origin: China
Brand Name: Hentec
Payment & Shipping Terms:
Minimum Order Quantity: 500KG
Packaging Details: wooden case , pallet
Detailed Product Description
Material: Aluminum Warranty: 15years
Application: Electrical Cover Surface: Sandblasting / Anodizing
Color: Customized Logo: Silk Screen
High Light:

OEM Aluminum Extrusion Enclosure

,

6000 t4 Aluminum Extrusion Enclosure

,

6000 t4 Aluminium Extrusion Enclosure

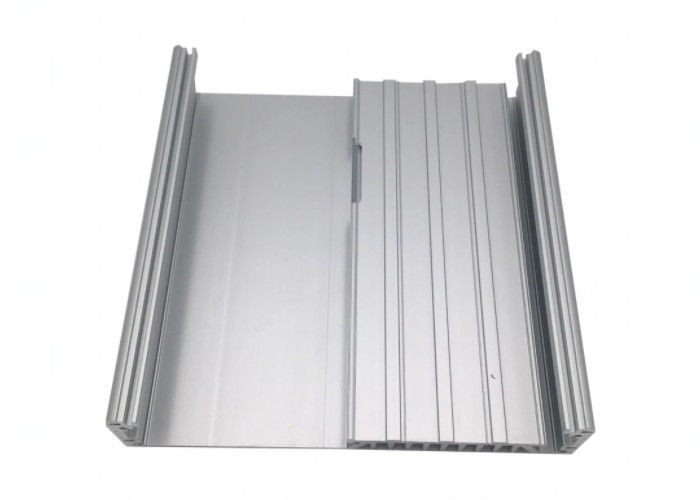

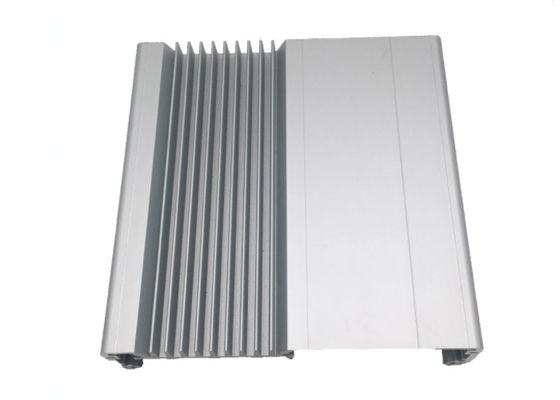

Anodized Extruded Aluminum Enclosure / OEM Aluminum Housing



MetalPlus manufacture a wide range of high quality and customized standardized enclosures. We offer a variety of electronic industrial enclosures: aluminum profile housing, , die-cast aluminum box , standard aluminum chassis, rack mount housing, CNC precision machined parts, etc...


One of our special advantages is the custom aluminum profile housing. Use state-of-the-art CNC processing equipment to manufacture enclosures based on customer's exact specifications. We can deliver finished products on time and in a timely manner.



Advantage :



1. Reliable quality (ISO9001:2008 & TS16949:2002 certified).

2. Competitive prices with short lead-time for both tooling and parts, because we do every production process in-house.

3. Effective and strong technical support and excellent sales services.

4. Sufficient production capacity .

5. Compliant with RoHS Test.








Products discription:



Item Aluminum Case
Material 6000 series Aluminium T4, T5, T6
Shape square, round, t shaped, rectangular, customized
Surface treatment Mill finish, anodized , powder coating , sand blasting , and so on
Colors It’s usually black, you can also order other colors .
Packing Carton and wooden case







Applications:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.





Specifications:



1. Primary Technical Data



1)Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest



2) Mechanical property

Alloy Temper Tensile strength Yield strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%



2. Specifications:



Excellent material for smooth and subtle edges.

Elegant appearance.

Surface treatment: colorful anodized or powder coated,customized surface finishes are welcome.

Suitable for constructions and other industrial purposes.





 Anodized OEM 6000 T4 Aluminum Extrusion Enclosure Housing 0
