Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Alloy: | 6060 6061 |
|---|---|---|---|
| Temper: | T5 T6 | Surface: | Anodizing |
| Color: | Silvery , Black | Logo: | Printing |
| High Light: | T5 extruded aluminum enclosure,T5 extruded aluminium enclosure,6060 extruded aluminum enclosure |
||

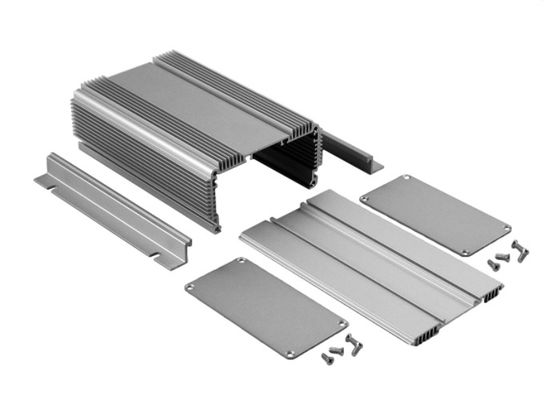

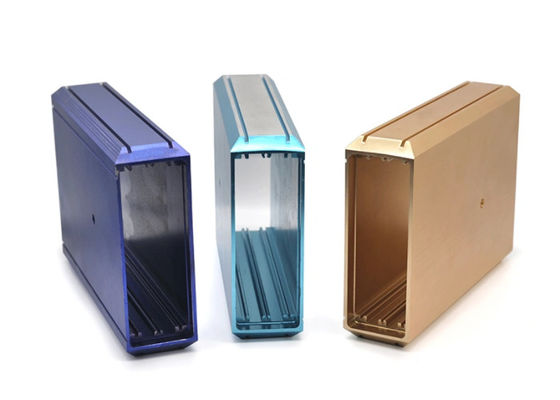

Colored Anodizing Extruded Aluminum Enclosure / Aluminum Audio Amplifier Housing Shell
Description:
| Size | Customized | |
| Material | Main Box Aluminum Alloy 6063 + End Panel | |
| Finish Treatment | Finish : Brush & Sandblast | |
| Anodizing: Silver, Champagne, Black, Gold, Blue , Gray , Red | ||
| Spraying : White , Black , Blue , Yellow | ||
| Process Ability | Design , Drill , Punch , Line Cutting , Milling | |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2)Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
2.Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Competitive Advantage:
1. 15 years experience in providing ONE-STOP customized aluminium extrusion and doors&windows finish product solution; 14+ years of exporting to 46+ countries;
2. ISO: 9001:2008, TUV, RoHS, SGS, Reach, D&B
3. 100% new aluminum material
4. Competitive prices with short lead-time
5. Effective and strong technical support (40+ engineers) and excellent sales services (80+ sales representatives).
6. Sufficient production capacity:
65 extruding lines with capacity 600tons to 7000tons;
15 environment-friendly casting rod lines;
8 lines of anodic oxidation and electrophoresis each;
7 powder spraying lines;
3fluorocarbon spraying line;
18 heat-insulating lines;
5 wood-grain line.
