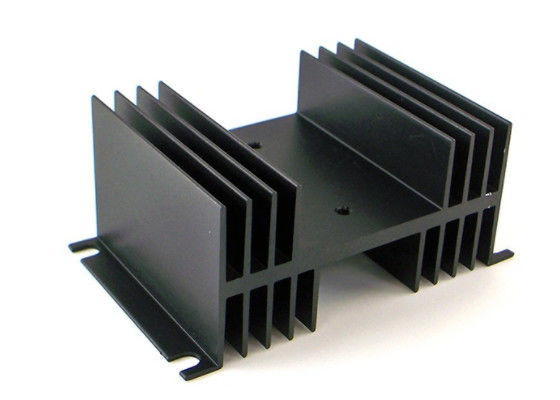

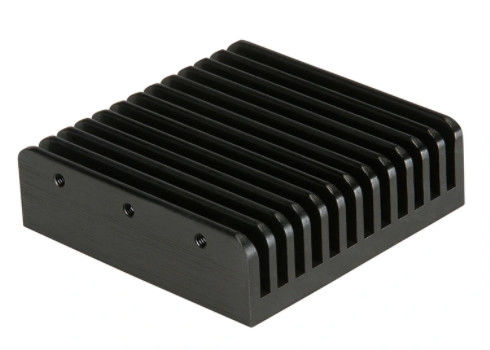

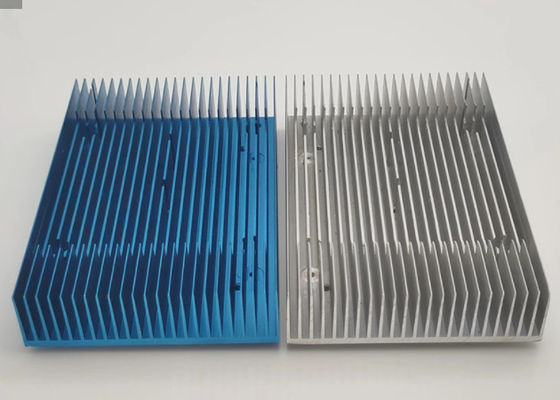

Electronic Appliance Quickly Cooling 6063 Aluminium Extrusion Heat Sink Profiles

China Hentec Industry Co.,Ltd certification
China Hentec Industry Co.,Ltd certification
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

Le succès de ce nouveau projet dépend du support de l’équipe HENTEC en termes de technologie de traitement. Merci à HENTEC de nous aider à contrôler les coûts de manière efficace et à répondre à nos exigences en termes de haute qualité. Nous nous réjouissons de notre future collaboration!

—— Yann Pauwels

I'm Online Chat Now

Electronic Appliance Quickly Cooling 6063 Aluminium Extrusion Heat Sink Profiles

Electronic Appliance Quickly Cooling 6063 Aluminium Extrusion Heat Sink Profiles
Electronic Appliance Quickly Cooling 6063 Aluminium Extrusion Heat Sink Profiles
video play

Large Image :  Electronic Appliance Quickly Cooling 6063 Aluminium Extrusion Heat Sink Profiles

Product Details:
Place of Origin: China
Brand Name: HENTEC
Certification: CA ,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Aluminum Heatsink Extrusion Profiles Alloy: 6063,6061
Material: Aluminium Suface Treatment: Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T5, T6
High Light:

6063 aluminium extrusion heat sink profiles

,

6063 extruded heat sink profiles

,

T6 Aluminium Extrusion Heat Sink Profiles

Electronic Appliance Quickly Cooling Aluminum Heat Sink Extrusion Profiles

Description :



Surface Treatment Anodized or Customized
Alloy Material AL6063
Certification ROHS, ISO9001
Molding 1. Free of charge if using our mold
2.Customized new drawing, creation of new mold:the mold fee can be refunded if the quantity of sales up to 4-50tons
MOQ For our existing products ,minimum of quanity is 500pcs
Advantage 1.We have years of experience in CNC machine service
2.We can design the drawings according to the samples provided by the customer, or based on the AOTO CAD,PDF information ,
3.We provide samples
4.100% inspection before shipment


Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...

Specifications:
1. Primary Technical Data
1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest


2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%


Our Advantages:
1. 17+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to 40+ countries;
2. ISO: 9001:2008,RoHS, SGS, Reach, D&B
4. 100% new material
5. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
6. Effective and strong technical support (30+ engineers) and excellent sales services .
7. Sufficient production capacity (22 extrusion lines; 3+ CNC machines).
8. Efficient communication (48-hour quote lead time).


      Electronic Appliance Quickly Cooling 6063 Aluminium Extrusion Heat Sink Profiles 0
