Product Details:
Payment & Shipping Terms:
|
Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
---|---|---|---|
Material: | Aluminum | Suface Treatment: | Electrophoretic Coated,Powder Spray Coated |
Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 |
Highlight: | 6005 aluminum heatsink extrusion profiles,cnc machining aluminum heatsink extrusion profiles,6005 aluminium heatsink extrusion |
Descrition:

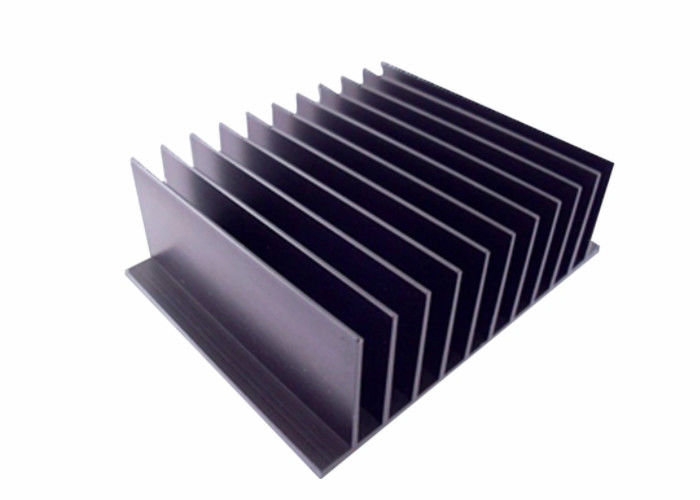

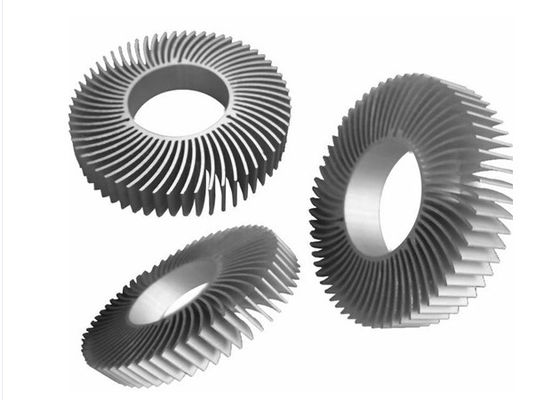

Alodine Extruded Aluminum Heatsink Customized Shape / With CNC Machining
Our Advantages:
1. 15+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to 40+ countries;
2. ISO: 9001:2008, RoHS, SGS, Reach.
4. 100% new material
5. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
6. Effective and strong technical support (30+ engineers) and excellent sales services (20+ sales representatives).
7. Sufficient production capacity (20 extrusion lines; 2+ CNC machines; only 65% occupied).
8. Efficient communication (48-hour quote lead time).
Description :
1.Material: Aluminium alloy 6063, 6061.
Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...
Specifications:
1. Primary Technical Data
1)Chemical composition
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1, This aluminum extraction profile for heat sink offers excellent engineering design and technical support .
2, With the deep processing ,it will be cut ,punched ,drilled ,milled and then fabricated into the finished product .
3, It is guaranteed on the excellent performance for as long as 15 years .
