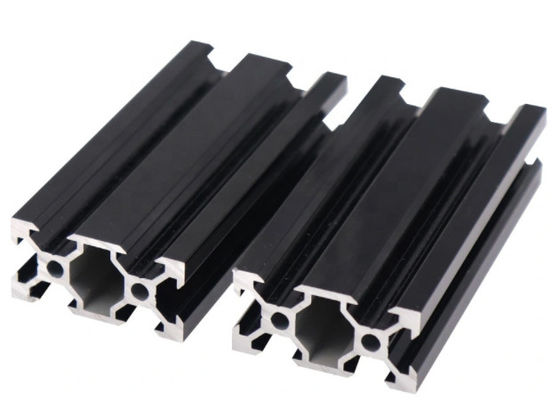

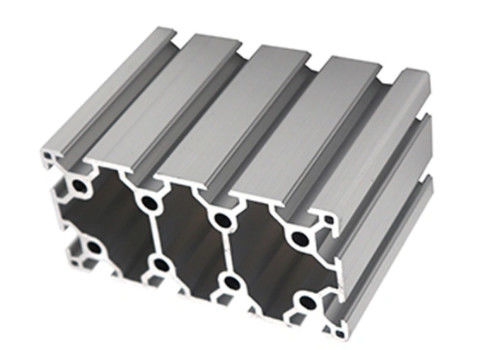

Silvery Black Anodized 6063 T4 Aluminium Extrusion System T Slot Assembly Stage

large.img.alt
large.img.alt
video play

Large Image :  Silvery Black Anodized 6063 T4 Aluminium Extrusion System T Slot Assembly Stage

Product Details:
Place of Origin: China
Brand Name: Hentec
Certification: CA ,CE ,ISO14001:2004, ISO9001:2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Industrial Aluminium Profile Alloy: 6063
Material: Aluminum Suface Treatment: Fluorocarbon Powder Spray Coated /PVDF Paint, Drawbench,Steel Polished
Deep Process: Milling, Drilling, Bending,Cutting Temper: T4, T5, T6
High Light:

6063 t4 aluminium extrusion system

,

CA passed aluminium extrusion system

,

6063 t4 aluminum extrusion framing systems

Silvery / Black Anodized Industrial Aluminum Profile System T - Solt Assembly Stage



(1).Suitable for industry,architecture,transportation and so on.
(2).20 years warranty.
(3).High corrosion resistance.
(4).5-10 years weather resistance.
(5).Good wear resistance & anti-scratch.
(6).Size customized.

More Information:



Profile Material: 6063 aluminium alloy T5
Surface treatment: Mill finish, powder coating, anodizing,  polishing, eletrophoresis, PVDF, sand blasting, etc.
Slot width: 6mm, v slot
Color Natural silver anodised, black, can be customised.
Surface: Mill finish, Anodizeding, Sand Blasting, Powder coating, etc.
Deep processing: Cutting, Drilling, Treading, Bending, etc.
Electrical & Energy, Machinery, Radial profiles for LED cooling, Non-standard Automation, Structure Framing, etc
Certification:ISO9001OEM & ODM
Acceptable Shipping Term : EXW, FOB, C&F or others can be discussed.







Applications:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.









Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%





Silvery Black Anodized 6063 T4 Aluminium Extrusion System T Slot Assembly Stage 0





Competitive Advantage:



1)Engineering design and support.

2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.



Silvery Black Anodized 6063 T4 Aluminium Extrusion System T Slot Assembly Stage 1
