Customized Extruded Aluminum Pcb Enclosure / Barrier Protective Housing

Customized Extruded Aluminum Pcb Enclosure / Barrier Protective Housing
Customized Extruded Aluminum Pcb Enclosure / Barrier Protective Housing Customized Extruded Aluminum Pcb Enclosure / Barrier Protective Housing Customized Extruded Aluminum Pcb Enclosure / Barrier Protective Housing

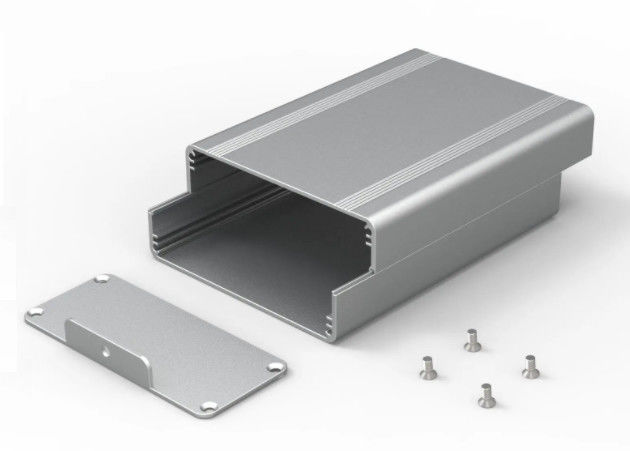

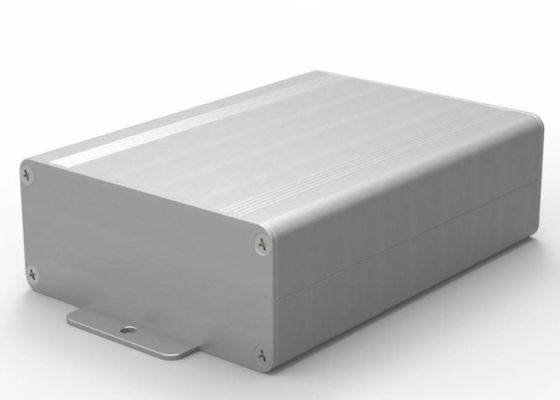

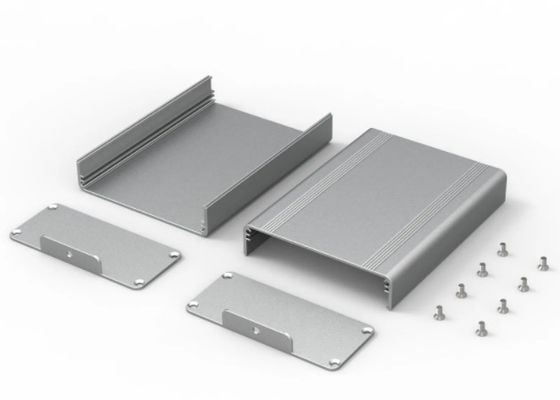

Large Image :  Customized Extruded Aluminum Pcb Enclosure / Barrier Protective Housing

Product Details:
Place of Origin: China
Certification: CA ,CE
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Aluminum Extrusion Profiles Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T4, T5, T6 ,T66

Customized Extruded Aluminum Pcb Enclosure / Barrier Protective Housing

1. Material:  Aluminum Alloy 6063 / 6005 / 6060 /6082/6061 alloy etc , optional by customer
2. Processing: cutting, punch,stamp, bending,welding,etching,laser cutting,CNC,wire-cut..etc
3. Surface treatment: Mill finish, powder coating, anodizing, wooden grain coating, polishing, eletrophoresis, PVDF, sanding blasting, etc.
4. Equipment:extrusion machine , laser cutting machine, welding machine, bore machine,stamping machine, punching machine, bending machine.CNC
5.Competitive price, high quality,quick delivery.
6.Deep processing:Cutting, Drilling, Treading, Bending, etc.
7.Application:Building & Construction, Industry, Machinery, Transportation, Electrical & Energy, Machinery, Radial profiles for LED cooling,
Non-standard Automation, Structure Framing, etc
8.OEM & ODM:Acceptable,customized Logo silkscreen accepted .
9.Shipping Term:EXW, FOB, C&F or others can be discussed.

Applications:

Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.


Specifications:

1. Primary Technical Data

1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest


2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%


2. Specifications:

Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.


Competitive Advantage:

1) Engineering design and support.
2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
5)OEM or ODM is welcome. Except our existing products we can arrange production according to customer's requirements. If you have your own designs or samples we can make molds and arrange production according to your product information.

Customized Extruded Aluminum Pcb Enclosure / Barrier Protective Housing 0
