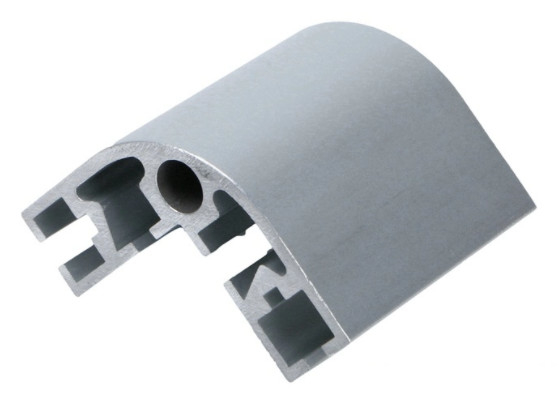

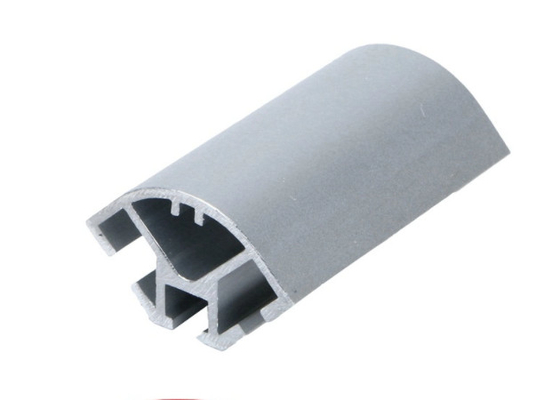

Customized Assembly Line Aluminium Profile System 6061 T5 T Slot

Customized Assembly Line Aluminium Profile System 6061 T5 T Slot
Customized Assembly Line Aluminium Profile System 6061 T5 T Slot Customized Assembly Line Aluminium Profile System 6061 T5 T Slot

Large Image :  Customized Assembly Line Aluminium Profile System 6061 T5 T Slot

Product Details:
Place of Origin: China
Brand Name: MetalPlus
Certification: ISO14001:2004, ISO9001:2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Aluminum Profile System Alloy: 6063 6061
Material: Aluminium Suface Treatment: Anodized , Mill Finished
Deep Process: Cutting, Drilling Temper: T5, T6
High Light:

customized assembly line aluminium profile system

,

aluminium profile system 6061 t5

,

t slot extruded aluminum framing systems

Customized Assembly Line 6061 T5 Aluminium Profile System /Aluminium T Slot Profile



(1). Suitable for industry,architecture,transportation and so on.
(2). 20 years warranty.
(3). High corrosion resistance.
(4). 5-10 years weather resistance.
(5). Good wear resistance & anti-scratch.
(6). Size customized.





Product Name Aluminum Profile System
Profile Material 6063 aluminium alloy
Temper T5 T6
Surface treatment Mill finish, powder coating, anodizing, wooden grain coating, polishing, eletrophoresis, PVDF, sanding blasting, etc.
The option of Profile 15/20/30/40/60/80/90/100 series etc.
Slot width 6MM,8MM,10MM
Color Silver, bronze, champagne, titanium, nickel, golden yellow, etc.
Surface Mill finish, Anodizeding, Sand Blasting, Powder coating, etc.
Deep Processing Cutting, punching, drilling, bending, weld, mill, CNC, etc.
Application Building, Industry, Machinery
Certification ISO9001
OEM & ODM Acceptable



1. Company with rich manufacturing experience
Hentec is one of the leading aluminum manufacturer in China, with 16years experience.

2. Production Management
We made complete quality management program and system, Monitor the process from product development, purchasement, production, sales and aftersale service.

3. Quality Supervision
We own complete testing equipment from raw material to finished products. We own the most powerful curtain wall testing base in China,.


 Customized Assembly Line Aluminium Profile System 6061 T5 T Slot 0









Applications:



Stock Aluminum Extrusions aluminum extrusion profile mainly used for industrial production , such as automation equipment , enclosure of the skeleton and the companies according to their own customized mold machinery and equipment , such as assembly line conveyor , hoist, dispenser, testing equipment, shelves , etc., electronic machinery industries and clean room with a gain majority.





Customized Assembly Line Aluminium Profile System 6061 T5 T Slot 1



Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%





Customized Assembly Line Aluminium Profile System 6061 T5 T Slot 2





Competitive Advantage:



1)Engineering design and support.

2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.



           Customized Assembly Line Aluminium Profile System 6061 T5 T Slot 3
