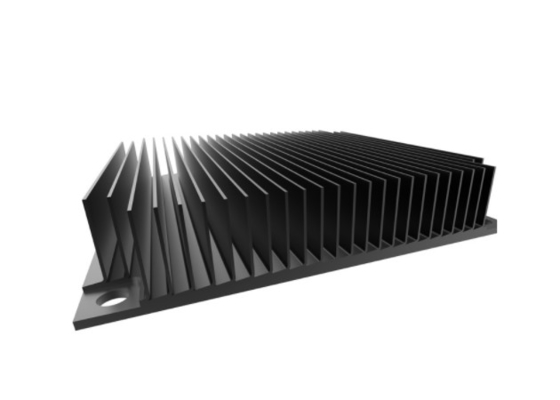

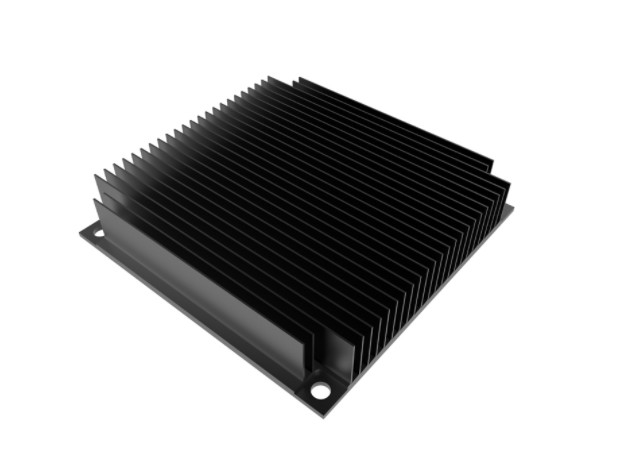

Black Anodized Extruded Heat Sink Profiles 6005 T66 For Industrial Computer

Large Image : Black Anodized Extruded Heat Sink Profiles 6005 T66 For Industrial Computer

Product Details:

Place of Origin:	China
Brand Name:	HENTEC
Certification:	CA ,CE
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 ton
Packaging Details:	Ep paper ,kraft ,pallet
Delivery Time:	20days
Payment Terms:	T/T ,L/C
Supply Ability:	100 000ton each month

Contact Now

Detailed Product Description

Product Name:	Aluminum Heatsink Extrusion Profiles	Alloy:	6063,6061,6005
Material:	Aluminum	Suface Treatment:	Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process:	Milling, Drilling, Bending,Cutting	Temper:	T4, T5, T6 ,T66
Highlight:	Black Anodized Extruded Heat Sink Profiles , Extruded Heat Sink Profiles 6005 , T66 Industrial Aluminum Extrusion Profile

Black Anodized Aluminum Heatsink Extrusion Profiles For Audio Equipment

Description :

Name	Aluminum Heat Sink
Material	According to customers demand
Temper	T4 ,T5 ,T6 ,T66
Profile type	Industry Aluminum profile used in cars, trains machinery ,trailers ,electronics, medical and other industrial filed
Machining	Cutting, punching, drilling, tapping, milling, bending, welding, CNC etc
Finish	Mill finish, anodizing, powder coating, electrophoresis, wooden transfer or pvdf/carbon-flouride coated, polishing, brushing, sand blasting
Usage	Widely used in Construction and industry
One stop service	Design-Making mold-Extruding-Machining-Packing-Delivery
Payment Terms	T/T , L/C
Packing	Protective film + Compound paper/Shrink film

Applications:

Aluminum heat sink is widely used on Machines ,lED light , Audio Equipment , CPU , Inverter ...

Specifications:

1. Primary Technical Data

1)Chemical composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest
6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	-	0.15	0.1	0.15	Rest
6005	0.6-0.9	0.35	0.1	0.1	0.40-0.6	0.1	0.1	0.1	0.15	Rest

2) Mechanical property

Alloy	Temper	Tensile strength	Yield strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

Competitive Advantage:

1, This aluminum extraction profile for heat sink offers excellent engineering design and technical support .

2, With the deep processing ,it will be cut ,punched ,drilled ,milled and then fabricated into the finished product .

3, It is guaranteed on the excellent performance for as long as 15 years .
