Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Hand Railings | Alloy: | 6063 |
|---|---|---|---|
| Material: | Aluminium | Suface Treatment: | Anodized |
| Temper: | T5 | Application: | Buildings,commercial,industrial |
| High Light: | Anodized Aluminum Hand Railing,Alloy 6063 Aluminum Hand Railing,T5 Alloy Aluminum Hand Railing |
||

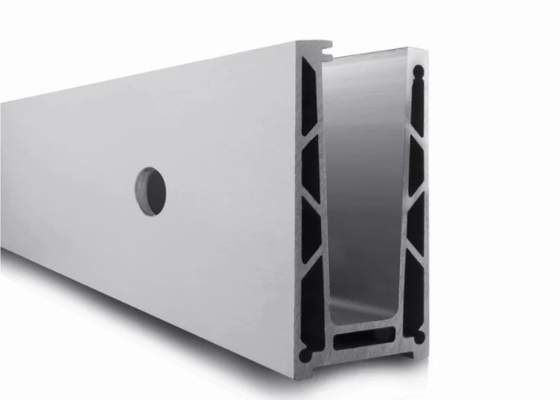

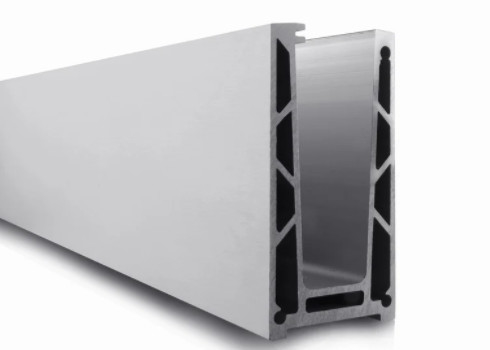

Anodized Aluminum Hand Railing , U Channel Glass Railing
Our company MetalPlus was found in 2004, we own a staircase factory which focus on the staircase, railing item design and manufacture we also take a share in a window&door factory, so we can supply various types of item such as staircase handrails , balustrade , window&door etc.
Now you find us , everything will become easy , just send us your idea , our team will provide one stop solution for you.
Our aluminum railings are made by high strength aluminum alloy profiles, widely used as aluminum handrail, aluminum stair baluster, aluminum balcony baluster, and architectural aluminum railing.We can make aluminum railing in different styles according to customers' special request .
|
Item |
U Channel Glass Railing |
|
Material |
Aluminum Alloy 6063, 6061 or according to customer’ s choice |
|
Temper |
T4, T5, T6 |
|
Surface |
Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc. |
|
Installation |
Wall mounted/ Floor mounted/ Embeded way |
|
Profile type |
Industry Aluminum profile used in cars, trains machinery ,trailers ,electronics, medical and other industrial filed . |
|
Machining |
1. milling; 2. Drilling; 3. Bending; 4. Cutting ... |
|
Moulding |
1. Using our moulds , free; 2. Using customer’ s drawing, opening mould fee need to be paid . |
|
Certificate |
ISO14001:2004, ISO9001:2000 |
|
Standard |
Our products can be customized in accordance with the building codes and standards of your country |
Features:
A) Aluminum Fence and Hand Rails embody novel and reasonable structure, various installation (full aluminum Bar, round or square and so on).
B) Aluminum Fence and Hand Rails can install any point of view rotatable connection.
C) Aluminum Fence and Hand Rails' surface color is just unlimited, also wood grain imitation color can be made, comparable to wooden, but more intension and endurable than wood.
D) Aluminum Fence and hand Rails' cost is less than wood and stainless.
Applications:
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1. Our aluminum railing is anti-corrosion, anti-aging, rustless and fastness. It saves maintenance cost after installation.
2. Beautiful and unique appearance, as well as graceful and soft color.
3. Our aluminum railings feature toughness, high resistance and security, and environmentally friendly.
4. Our team of Hented will supply the Engineering design and technic support.
5. We have the ability of aluminum profiles deeply processing: cutting, punching, drilling, milling, and fabrication.
6. We have high quality system, strictly inspection during production and whole inspection before package.
7. Product warranty for 15years.
