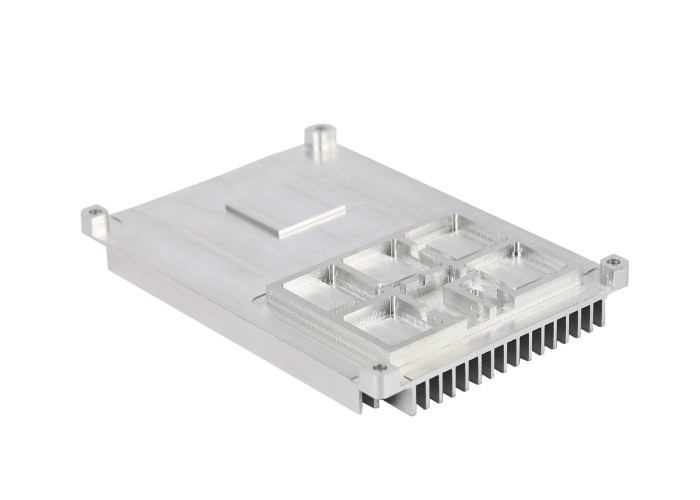

6063 Aluminium Extrusion Heatsink Profiles For Electronic Radiator

6063 Aluminium Extrusion Heatsink Profiles For Electronic Radiator
6063 Aluminium Extrusion Heatsink Profiles For Electronic Radiator
video play

Large Image :  6063 Aluminium Extrusion Heatsink Profiles For Electronic Radiator

Product Details:
Place of Origin: China
Brand Name: MetalPlus
Certification: CA ,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Aluminum Heatsink Extrusion Profiles Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T4, T5, T6 ,T66
High Light:

6063 aluminium extrusion heatsink


electronic radiator aluminium extrusion heatsink


electronic radiator aluminium heat sink extrusion

 6063 Aluminum Heatsink Extrusion Profiles For Water Cooler / Electronic Radiator / Automatic Industry

Aluminum can be very popular in the radiator industry, and can shine here, thanks to its excellent performance. MetalPlus Industrial adopts superior quality aluminum materials on the radiator casting road, which can lay a solid foundation for product quality from the source, and then use professional and exquisite craftsmanship to produce aluminum radiators that can be adapted to various fields and exert practical effects. , To solve the heat dissipation problem of various industries.



Description :


Material 6061,6063 ,6005  ,6082 etc
Temper T4 T5 T6 T66
Surface treatment Mill Finish,Anodized,Eletropharesis,Powder Coated, Paiting,Polish,Sandblasting,brushed
Length Customeized
Shape Round,Square,Rectangle,Triangle,Hexagon,Octagon,Oval,or as per the drawings and samples
Deep Process cutting,drilling,punching,milling,deburring,clearing,tapping etc
Section size

 ≤ ∅650mm

Package inner plastic paper interleaving each tube,outer fixed by plywood or pallets,or as required
Certification ISO9001,ISO14001

Process: Die design--Die making-Extruding--Cutting-- CNC Machining--Surface treatment --Packing

Packing: Packed with plastic film and wooden case with is suitable for Sea Shipment or Air Shipment


Technology Supports :

Our company has more than 600 employees, 50 R & D and structural design personnel, we are able to arrange the initial design drawing and the heat sink specification within the shortest time .

Once the design has been signed off, the quotation and actual lead me can be informed to the client.

Then move to the sample stage, Metalplus will extrude the profiles and CNC machine sample to test . And once approved , the prototype can be sent to the client .
After the prototype has been confirmed , we will follow the production

It is the cheapest customisation method to achieve high performance of a heat sink.



It is believed that as long as people who have used electronic products know that heat dissipation problems will be involved in such products as video card, CPU, chassis power supply, etc., such products will have a radiator, generally aluminum alloy electronic radiator, which is only the application of radiator in ordinary civil products.

In addition, there are many industrial high-power devices that we don't pay much attention to, but are very important. They will also be used in electronic radiators. The main applications of high-power electronic radiator: Audio Equipment ,UPS power supply, EPS power supply, inverter, transformer, monocrystalline silicon, polycrystalline silicon, battery pack, new energy electronic controller, charging pile, inverter power supply, switching power supply,IP power supply, welding machine, communication transmitter, base station, control cabinet, power regulator, thyristor, etc.


Standard of heat sink

1. The quality of material (purity, thickness, processing accuracy, etc.) and
manufacturing process (cracks, shrinkage cavities, etc. caused by casting), poor
material and rough and defective process will directly affect the thermal conductivity
of the radiator;

2. The surface roughness and flatness of the electronic heat sink
contact table directly affect the contact thermal resistance and pressure drop;


Our aluminum profile is made of pure aluminum or aluminum alloy. Through smelting, cutting, extrusion and other processes, metal panels with different cross-sectional shapes can be formed, and then can be processed under surface treatment processes such as wire drawing, sandblasting, electroplating, laser screen printing, and anodizing. It can be cast into a radiator shell with exquisite surface, superior and stable performance. As a raw material, aluminum profiles mainly have the following characteristics

   1. Light weight

   2. Corrosion resistance

   3. Thermal conductivity

   4. Non-magnetic

   5. Plasticity




1. Primary Technical Data
1) Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest

2) Mechanical property

Alloy Temper Tensile strength Yield strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%
