Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Enclosure | Alloy: | 6063 6005 6061 |
|---|---|---|---|
| Material: | Aluminium | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 ,T66 |

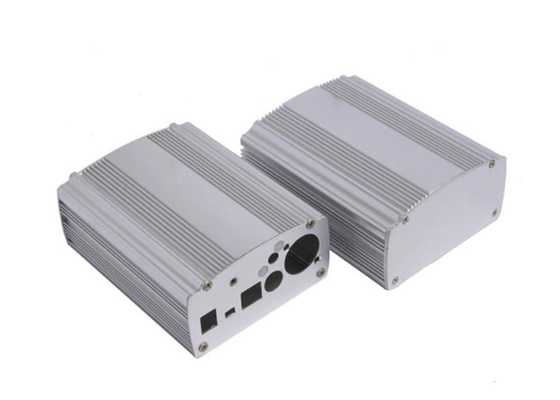

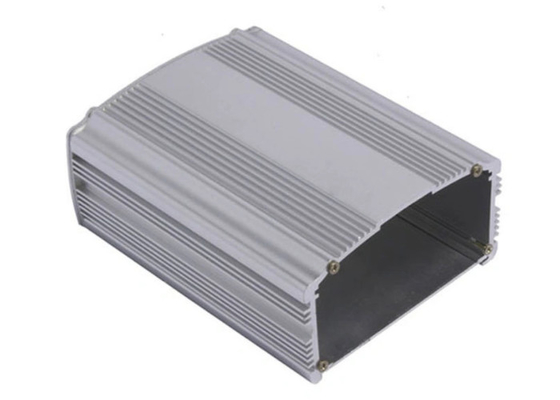

Silkscreen Printing Aluminum Extrusions For Electronics / Customized Power AMP Box / OEM Circuit Enclosure
MetalPlus manufacture a wide range of high quality and customized standardized enclosures. We offer a variety of electronic industrial enclosures: aluminum profile housing, , die-cast aluminum box , standard aluminum chassis, rack mount housing, CNC precision machined parts, etc...
One of our special advantages is the custom aluminum profile housing. Use state-of-the-art CNC processing equipment to manufacture enclosures based on customer's exact specifications. We can deliver finished products on time and in a timely manner.
1. Material: Aluminium alloy 6063,6082,6061, 6005,6060 or customized
2. Temper: T5, T6
3. Quality standard: GB5237-2008
4. Surface treatment: Mill finish,alodine, anodized, powder painted, electrophoresis, sand balsting etc. PVDF , wood grain painting, matted, polishing
5. Color avalilable: Silver, Bronze, champagne ,Matte,Natural for andodizing, Ral color
6. Packing details: Wooden case or pallet
7. Samples time:15days
8. Delivery: 25 days
9. Production Capacity: 5000MT/Month
10. MOQ: 1 ton
12. Payment terms: 30% deposit
13. Port: Shanghai Port
14. 44 press extruder
15. OEM & ODM service.
Warranty
1. GB5237-2008 equal to EN12020-1.2(2001);
2. GB6892-2006 equal to DIN 1725
3. Within 15 years without color changing, all life without surface peeling off;
Moulding
we open the new die within 10days
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
2. Specifications:
Excellent material with smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for industrial purposes.
Customized surface finishes are welcome.
Our Advantages:
1. 15+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to many countries;
2. ISO: 9001:2008, RoHS, SGS, Reach, D&B
3. 100% new material
4. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
