Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061 |
|---|---|---|---|
| Material: | Aluminium | Suface Treatment: | Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T5, T6 |

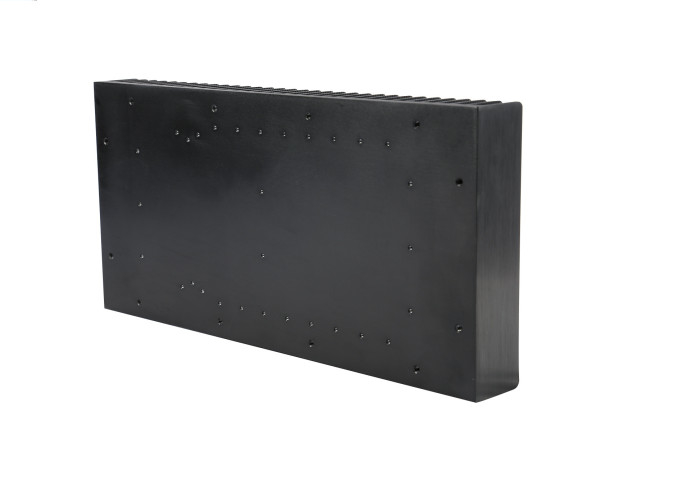

Bright Black Anodized Extruded Heat Sink Industrial Aluminium Profiles 6063-T5
Description :
| Product | Aluminum Heat Sink |
| Material | 6063, 6061, 6005, 6082 |
| Temper | T4/T5/T6/T66 |
| Surface treatment | Powder Coating in RAL Color, Anodizing(AA10/15/20/25), Sandblasting, Brushing, Passivation, Silk screen, Mechanical/Chemical Polishing, Wood grain coated /Wooden transfer, Galvanise,(Nickel/Tin/Chrome/Copper) Plating, PVDF, Matt, etc. |
| Shape | Flat/Square/Round/Hollow/Oval/Triangle U type/L type/T type /H type |
| Deep Process | Aluminium profile extruding, Precious milling, Cutting, Punching, Bending, Tapping, Drilling, CNC lathe etc. Tolerance: length can be ±0.2mm, hole can be ±0.05mm. |
| Wall thickness | > 0.9mm |
| Section size | Square: ≤ 150*150mm |
| Rectangle:≤ 250*50mm | |
| Round: ≤ ∅170mm | |
| Package | Inner plastic paper/PE paper interleaving each piece; Outer fixed by plywood or pallets with shipping mark; Or as required. |
| Delivery time | 15-25 days after deposit |
Our Advantages:
1. 17+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to 40+ countries;
2. ISO: 9001:2008, RoHS
4. 100% new material
5. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
6. Effective and strong technical support (30+ engineers) and excellent sales services .
7. Sufficient production capacity (22 extrusion lines; 3+ CNC machines).
8. Efficient communication (48-hour quote lead time).
Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1) Pure 99.7% aluminum materials without any scrap used
2) OEM welcome, we can design and cut die to meet customer's special demand
3) Wonderful surface treatment, we can meet customers required on surface
4) Strictly quality control process assured higher quality.
5) Packing safety and convenient.
