Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061 |
|---|---|---|---|
| Material: | Aluminium | Suface Treatment: | Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T5, T6 |

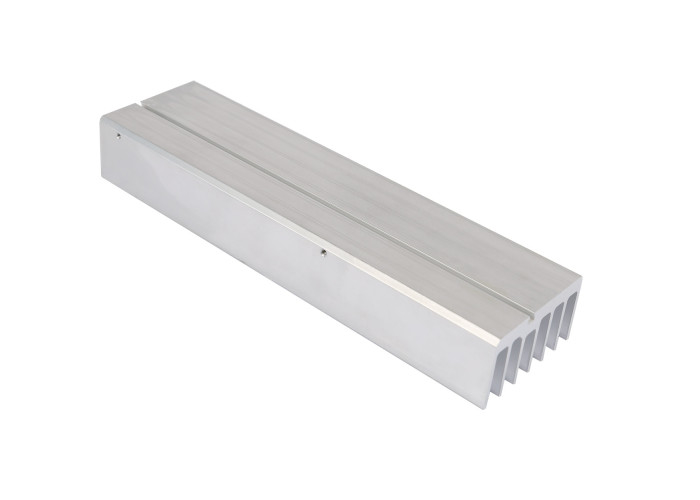

Bright Black Anodized Extruded Heat Sink Industrial Aluminium Profiles 6063-T5
Description :
| Product | Aluminum Heat Sink |
| Material | 6063, 6061, 6005, 6082 |
| Temper | T4/T5/T6/T66 |
| Surface treatment | Powder Coating in RAL Color, Anodizing(AA10/15/20/25), Sandblasting, Brushing, Passivation, Silk screen, Mechanical/Chemical Polishing, Wood grain coated /Wooden transfer, Galvanise,(Nickel/Tin/Chrome/Copper) Plating, PVDF, Matt, etc. |
| Shape | Flat/Square/Round/Hollow/Oval/Triangle U type/L type/T type /H type |
| Deep Process | Aluminium profile extruding, Precious milling, Cutting, Punching, Bending, Tapping, Drilling, CNC lathe etc. Tolerance: length can be ±0.2mm, hole can be ±0.05mm. |
| Wall thickness | > 0.9mm |
| Section size | Square: ≤ 150*150mm |
| Rectangle:≤ 250*50mm | |
| Round: ≤ ∅170mm | |
| Package | Inner plastic paper/PE paper interleaving each piece; Outer fixed by plywood or pallets with shipping mark; Or as required. |
| Delivery time | 15-25 days after deposit |
Advantages:
The aluminum alloy is better than some materials in the heat dissipation function of product.
The motor will generate a certain temperature during the working process, and the heat sink casing made of aluminum alloy material can maintain the temperature within a specific range after continuous working for many hours. We know that the thermal solubility of aluminum is relatively large.
The products made by aluminum extrusion are lighter.
Because the metal characteristics are relatively light, it is more convenient for mechanical transportation and installation. It also greatly reduces the weight of the entire motor product.
Good product plasticity. Due to the special physical properties of aluminum alloys, the ductility and plasticity of the product are much better than those of steel and casting iron.
Aluminum products have the advantages of light weight, small vibration and low noise, but also has the characteristics of waterproof, dust proof and corrosion resistance, energy saving, high performance, high efficiency and long service life. Environmentally friendly product.
Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1) Pure 99.7% aluminum materials without any scrap used
2) OEM welcome, we can design and cut die to meet customer's special demand
3) Wonderful surface treatment, we can meet customers required on surface
4) Strictly quality control process assured higher quality.
5) Packing safety and convenient.
