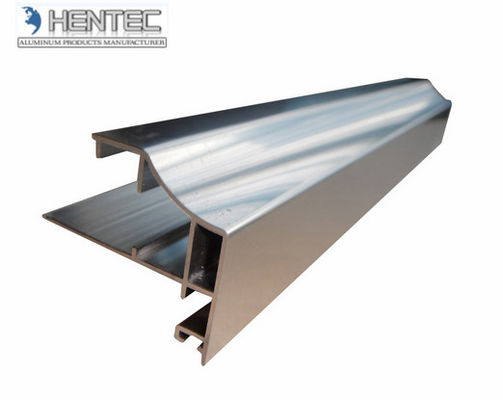

Clear Aluminum Window Extrusion Profiles T4 / T5 / T6 / T66 Colored

Clear Aluminum Window Extrusion Profiles T4 / T5 / T6 / T66 Colored
Clear Aluminum Window Extrusion Profiles T4 / T5 / T6 / T66 Colored

Large Image :  Clear Aluminum Window Extrusion Profiles T4 / T5 / T6 / T66 Colored

Product Details:
Place of Origin: China
Brand Name: HT
Certification: CA ,CE
Model Number: HD50
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: EP Paper ,kraft and pallet
Delivery Time: 20days
Payment Terms: T/T or L/C
Supply Ability: 100 000 ton each month
Detailed Product Description
High Light:

aluminum extrusion profiles

,

extruded aluminium profiles

Clear Anodized Aluminum Window Extrusion Profiles T4 / T5 / T6 / T66 Colored









Temper: T4, T5, T6 ,T66
Deep process:  Milling, Drilling, Bending,Cutting.
Alloy :6063,6061,6005 or according to customer’ s choice
Material:Aluminum
Color:clear, satin, bronze, black, golden, silver, other multicolor







Description:





The surface treatment :



1) Mill Finished

2) Anodized: Silver, champagne, light bronze, dark bronze, black, light titanium, dark titanium. Usually the thickness of the film is 10 um.

3) Electrophoretic coated: Silver, champagne, bronze, black, light bronze, dark bronze.

4) Powder spray coated: Normal color, special color. Thicknes: 60 to 80 um.

5) Fluorocarbon powder spray coated /PVDF Pain: Normal color, special color.

6) Drawbench

7) Steel polished

8) Wood grain coated /Wooden transfer: Imported paper, domestic paper.





Technical requirements



1) Standard: GB/75237-2004, Q/320281/PDWD-2008
2) Certification: ISO9001
3) OEM service offered

4) Material: Alloy 6063, 6061 or according to customer’ s choice

    Temper: T3, T4, T5, T6

5) Fabrication: 1. Milling; 2. Drilling; 3. Bending; 4. Cutting...

6) Window Accessories:  Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.
7) MOQ: 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

8) FOB Port: Shanghai Port





Applications



Used in casement doors and windows  for living room, dinner room, bathroom, office room, meeting room, restaurant, hotel,etc.





Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%



2. Specifications :

Clear Aluminum Window Extrusion Profiles T4 / T5 / T6 / T66 Colored 0





Competitive Advantage:



1)Engineering design and support.

2)Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.
