Home ProductsAluminum Window Extrusion Profiles

Finished Mchining Standard aluminium extrusion profiles GB / 75237-2004

China Hentec Industry Co.,Ltd certifications
China Hentec Industry Co.,Ltd certifications
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

Le succès de ce nouveau projet dépend du support de l’équipe HENTEC en termes de technologie de traitement. Merci à HENTEC de nous aider à contrôler les coûts de manière efficace et à répondre à nos exigences en termes de haute qualité. Nous nous réjouissons de notre future collaboration!

—— Yann Pauwels

I'm Online Chat Now

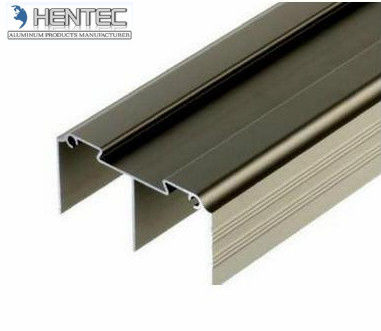

Finished Mchining Standard aluminium extrusion profiles GB / 75237-2004

Finished Mchining Standard aluminium extrusion profiles GB / 75237-2004
Finished Mchining Standard aluminium extrusion profiles GB / 75237-2004

Large Image :  Finished Mchining Standard aluminium extrusion profiles GB / 75237-2004

Product Details:

Place of Origin: China
Brand Name: Hentec
Certification: CA ,CE
Model Number: H548

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Packaging Details: EP Paper ,kraft and pallet
Delivery Time: 20days
Payment Terms: T/T or L/C
Supply Ability: 100 000 ton each month
Detailed Product Description
Material: Aluminum Alloy Temper: T5
Alloy: 6063 Surface: Powder Painting
Standard: GB/75237-2004, Q/320281/PDWD-2008
High Light:

aluminum extrusion profiles

,

extruded aluminium profiles

Finished Mchining Standard aluminium extrusion profiles GB / 75237-2004





The surface treatment :



1) Mill Finished

2) Anodized: Silver, champagne, light bronze, dark bronze, black, light titanium, dark titanium. Usually the thickness of the film is 10 um.

3) Electrophoretic coated: Silver, champagne, bronze, black, light bronze, dark bronze.

4) Powder spray coated: Normal color, special color. Thicknes: 60 to 80 um.

5) Fluorocarbon powder spray coated /PVDF Pain: Normal color, special color.

6) Drawbench

7) Steel polished

8) Wood grain coated /Wooden transfer: Imported paper, domestic paper.





Technical requirements



1) Standard: GB/75237-2004, Q/320281/PDWD-2008
2) Certification: ISO9001
3) OEM service offered

4) Material: Alloy 6063, 6061 or according to customer’ s choice

    Temper: T3, T4, T5, T6

5) Fabrication: 1. Milling; 2. Drilling; 3. Bending; 4. Cutting...

6) Window Accessories:  Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.
7) MOQ: 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

8) FOB Port: Shanghai Port





Applications



Aluminum extrusion profiles we supply: For windows ,doors ,fence , screen,Louver,

Curtain Wall,handrail,partition ,sunroom ,wardrobe, solar panel frames, exhibit shelf profile, LED Frames, production facility etc.





Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%



2. Specifications :

Finished Mchining Standard aluminium extrusion profiles GB / 75237-2004 0





Competitive Advantage:



Our Advantages:

1.     Offer OEM service.

2.     Surface Treatment: Mill finished, wooden finished, Anodized, Powder coated, Printed, Polished.

3.     Our Extrusion Machine are available to produce the thinnest of aluminium profile is 0.3 mm.

4.     Color Choice: any color you want for powder coated, but for anodized we have five normal color for your choice: Matte silver, Silver, Bronze, Dark, Champagne.

5.     Stable delivery time.

Finished Mchining Standard aluminium extrusion profiles GB / 75237-2004 1
