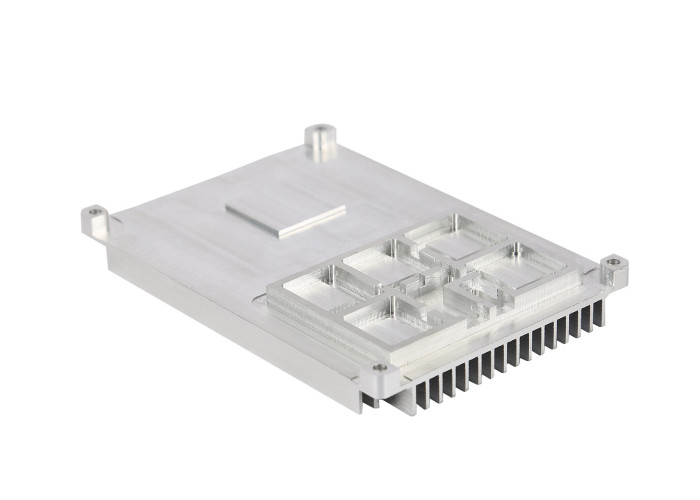

Natural Anodized Aluminium Electronic Heat sink Profiles With Milling / Drilling / Tapping

Large Image : Natural Anodized Aluminium Electronic Heat sink Profiles With Milling / Drilling / Tapping

Product Details:

Place of Origin:	China
Brand Name:	MetalPlus
Model Number:	Aluminum Heat Sink
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 ton
Packaging Details:	Ep paper ,kraft ,pallet
Delivery Time:	20days
Payment Terms:	T/T ,L/C
Supply Ability:	100 000ton each month

Contact Now

Detailed Product Description

Product Name:	Aluminium Heatsink Extrusion Profiles	Alloy:	6063,6061,6005
Material:	Aluminum	Suface Treatment:	Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process:	Milling, Drilling, Bending,Cutting	Temper:	T4, T5, T6 ,T66

Descrition:

MetalPlus is equipped with highly advanced machining equipment sets. All fine machining processes are accomplished by technicians with rich industry experience. Strict industrial standards are adopted during production to ensure fine machining precision and product quality.

Item	Natural Anodized Aluminium Electronic Heat sink Profiles With Milling / Drilling / Tapping
Surface Treatment	Polishing, Powder coating, Spraying, Anodisingand etc
Tolerance	+/-0.02~0.05mm
Equipments	a) CNC Machining Center b) Extrusion Mchine c) CNC Milling Machines d) Punching Machines e) Precision Cutting Machines f) Argon Welding Machines g) NC Bending Machine h) Anodized /Powder painted line
Preferred Formats	JPEG, PDF,CAD,IGS,STP
Preferred Industries	a) Communication Equipments b) Medical Equipments c) House Hardware d) Toy Air soft e) Mechanical Equipments f) Other customized Parts

Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...

Specifications:
1. Primary Technical Data
1)Chemical composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest
6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	-	0.15	0.1	0.15	Rest
6005	0.6-0.9	0.35	0.1	0.1	0.40-0.6	0.1	0.1	0.1	0.15	Rest

2) Mechanical property

Alloy	Temper	Tensile strength	Yield strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

High Precision T4 T5 T6 large extruded Aluminum Heat Sink for machine
Competitive Advantage:

Precision parts strictly according to customer&request drawing,packing and quality request
The most advanced CMM inspector to ensure the quality
Experienced technology engineers and well trained workers
Fast and timely delivery. Speedily&professional service
Give customer professional suggestion while in the process of customer designing to save costs.
Quality assurance in accordance with ISO9001:2008

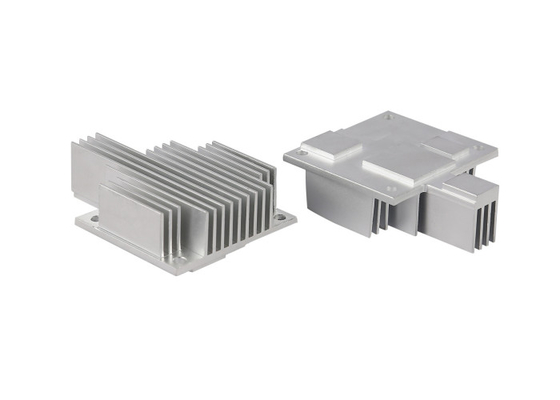

Natural Anodized Aluminium Electronic Heat sink Profiles With Milling / Drilling / Tapping 1
