40 Series 6000 Grade T5-T6 T-Slot Aluminum Profile System for High Load Applications

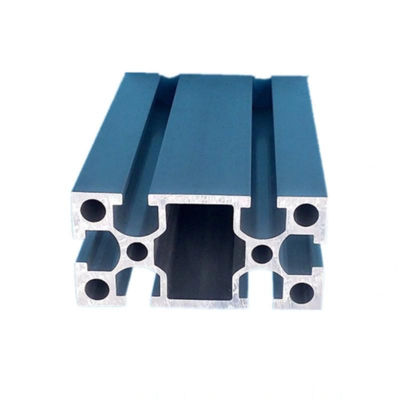

Large Image : 40 Series 6000 Grade T5-T6 T-Slot Aluminum Profile System for High Load Applications

Product Details:

Certification:	CE, ISO
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	2.99

Contact Now

Detailed Product Description

Model NO.:	Profile Systems	Type:	Industrial Aluminium Profile, Aluminum Profile System
Shape:	T - Profile	Grade:	6000 Series
Temper:	T3-T8	Alloy:	Alloy
Surface Finishing:	Anodic Oxidation	Alloying Ingredient:	6063
Surface Treatment:	Sandblasting Anodized	Specification:	2020, 3030, 4040, 4080, 3060, 8080mm
Production Capacity:	100000 Ton/ Year	Material:	Aluminium 6000 Series Alloy, Such As 6061, 6063,6060,6005 6082 Etc.
Tensile Strength:	≥ 160Mpa (T5), ≥ 205Mpa (T6), ≥ 265Mpa (6061 T6)	Yield Strength:	≥ 110Mpa (T5), ≥ 180Mpa (T6), ≥ 245Mpa (6061 T6)
Elongation:	≥ 8%
Highlight:	40 Series Aluminum Profile System , 6000 Grade T-Slot Aluminum Profile , T5-T6 Temper Aluminum Profile System

6063 6061 Customized CNC Machining T-Slot Aluminum Profile Systems with High Loads

T-slot aluminum profile systems are engineered for high-load applications including heavy work stations, fixtures, machine supporting structures, and transporting shuttles. The 40-dimension optimized load-carrying capacity provides a cost-effective, stable solution for design engineers. Lightweight dimensions can be used for less critical areas to optimize weight and cost efficiency.

Product Specifications

Item	Aluminum Assembly Line
Material	Aluminium 6000 series alloy (6061, 6063, 6060, 6005, 6082)
Temper	T4, T5, T6, T66
Size	Customized
Shape	Square, flat, round, hollow, oval, triangle, U-profile, L-profile, T-profile, H-profile, customized
Surface Treatment	Anodizing, Powder Painting, Mill Finished
Color	Silver, champagne, black, bronze, gold, white or customized
Deep Process	CNC, drilling, milling, cutting, tapping, welding, bending, assembling
MOQ	500 kgs per item (13-15 tons for 20GP, 25-28 tons for 40HQ)
OEM Service	Accepts customer drawings, samples, or design specifications
Production Capacity	2400-3000 Metric tons monthly
Brand Name	MetalPlus
Certifications	ISO, RoHS, SGS
Guarantee	Surface color stability for 10-20 years indoor use

Material Properties

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest
6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	-	0.15	0.1	0.15	Rest
6005	0.6-0.9	0.35	0.1	0.1	0.40-0.6	0.1	0.1	0.1	0.15	Rest

Mechanical Properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

Packaging & Shipping

Packaging: Standard export package with EP foam interior and craft paper/pallet/wooden case exterior. Custom packaging available upon request.

Shipping Options

Samples shipped via express (FEDEX, DHL, UPS, EMS) with freight paid by client
Mass production shipped FOB Shanghai Port
Delivery Time: 3 weeks after order confirmation

Company Profile

MetalPlus operates a 3600-ton extrusion press capable of producing heat sinks up to 600mm diameter. We specialize in custom aluminum extrusions for construction and industrial applications, offering complete services from mold making to fabrication and surface treatment.

Certifications

Company Milestones

2004: Recognized Brand of the Building Industry Material Market
2006: ISO9001 Certification & Product Exemption from Quality Inspection
2009: Jiangsu Famous Brand Certificate & Advanced Company Award
2012: Established partnerships with Panasonic and LG
2015: Became innovative supplier for European clients
2017: Developed new baseboard heater products
2019: Supplier to world's largest heater manufacturers
2023: Expanding global distributor network

Notable Projects

Soccer City Stadium, Johannesburg: As primary aluminum supplier for Africa's largest stadium (94,000 seats), our materials contributed to this landmark project's success.

Lobster Trailers: Our R&D team collaborates with this Nordic trailer manufacturer to optimize designs, reduce production costs, and enhance product performance through advanced aluminum solutions.

School Furniture Project: Supplied aluminum legs for school desks to local customer Dadn, demonstrating our capability to support education infrastructure projects.
