6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance

6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance
6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance

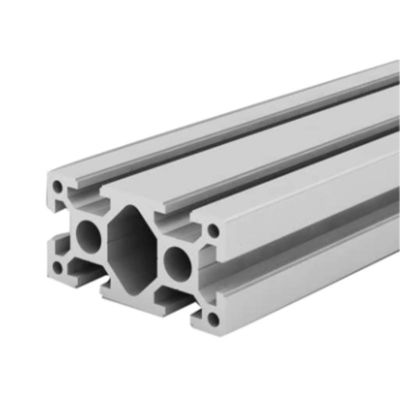

Large Image :  6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance

Product Details:
Certification: SONCAP, ISO, RoHS, TUV
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 1
Contact Now
Detailed Product Description
Model NO.: T-Slot Profile Grade: 6000 Series
Temper: T3-T8 Alloy: 6063
Surface Finishing: Anodic Oxidation Surfacet Treatment: Anodizing/Powder Painting
Colour: Customized Polish: Chemical/Mechanical Polish
Production Capacity: 50000PCS /Month Tensile Strength: ≥ 160Mpa (T5), ≥ 205Mpa (T6)
Yield Strength: ≥ 110Mpa (T5), ≥ 180Mpa (T6) Elongation: ≥ 8%
Max Diameter: 350mm Max Extruder: 6800 Ton
CNC Machining: PRATIC Machining Centers, Wegoma Cutting Machines
Highlight:

6060 6063 6005 Aluminium T-Slot Profile

,

20 Years Warranty Aluminium Profile System

,

5-10 Years Weather Resistance T-Slot Extruded Aluminum

6060 6063 6005 Anodized / Powder Painted Aluminium T-Slot Profile with Customized CNC Machining
Product Overview

High-quality aluminum T-slot profiles available in 6060, 6063, and 6005 alloys with customizable CNC machining and surface treatment options including anodizing and powder coating.

Key Specifications
Product Name 6063 T5 Anodized Aluminium T-Slot Profile
Material Aluminum
Size Customizable according to drawings, samples, or requests
Industry Standards DIN/ISO 9001:2015, RoHS compliant
Payment Term L/C, T/T
Product Features
  • 20 years warranty
  • High corrosion resistance
  • 5-10 years weather resistance
  • Excellent wear resistance & anti-scratch properties
  • Customizable sizes
  • Available in various alloy tempers: 6061-T6, 6063-T6, 6082-T6
  • Multiple surface treatment options: Mill finishes, Anodized, Powder coated, Wooden grain, Machine/Acid polished
Applications
  • Heavy duty racks
  • Robot safety fencing
  • Industrial material handling trolley
  • Work benches
  • Material handling systems
  • Conveyor frames
  • Parts racks
  • Machine guarding and enclosures
  • Lean manufacturing tools
  • Rolling carriages
  • Flexible work cells
  • Material handling carts
  • Machine bases and frames
  • Clean room frames
Technical Specifications
Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
Mechanical Properties
Alloy Temper Tensile strength Yield strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
6063 T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%
Technical Support

Our professional R&D team provides comprehensive support including:

  • Custom design based on your requirements
  • CAD drawings and 3D models for confirmation
  • Mold customization
  • Design optimization to reduce costs and improve performance
  • One-stop service from design to surface treatment
Production Capabilities
Extrusion

44 aluminum extrusion lines capable of producing profiles with maximum outer diameter of 350mm. Our largest 6800 ton extruder can handle industrial profiles up to 600mm diameter.

6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 0
Anodizing

6 anodizing production lines producing uniform oxidation film thickness in various colors including silver, black, gold, champagne, and imitation steel.

6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 1 6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 2
CNC Machining

Advanced machining equipment including 12 PRATIC machining centers, automatic cutting machines, 30 punching machines, and 10 stretch bending machines for precision processing.

6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 3 6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 4
Quality Assurance
  • Strict inspection process
  • RoHS compliance testing
  • Batch consistency control
  • Defective product elimination
6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 5
Certifications
6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 6 6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 7
Notable Projects

Soccer City Stadium, Johannesburg: Supplied aluminum materials for Africa's largest stadium with 94,000 seat capacity.

6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 8

Lobster Trailers: Provided customized aluminum solutions for this Nordic trailer manufacturer.

6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 9 6060 6063 6005 Aluminium T-Slot Profile with 20 Years Warranty and 5-10 Years Weather Resistance 10
