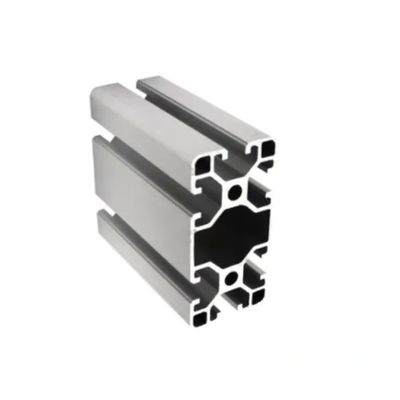

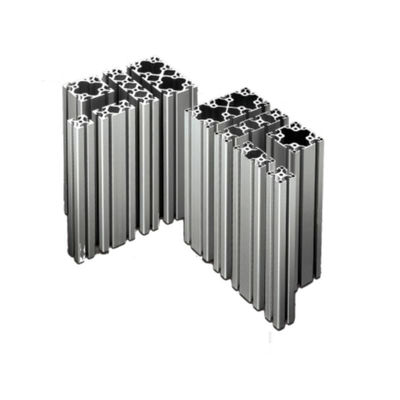

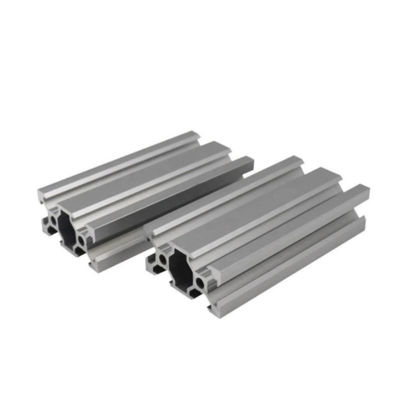

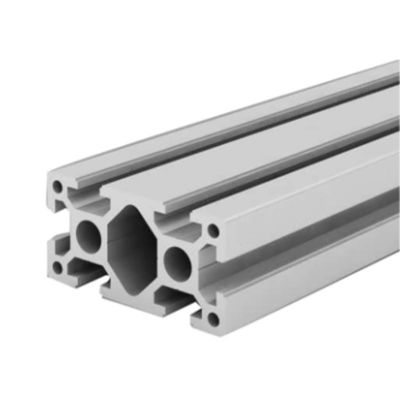

Customized CNC Machining 6063 6061 T5-T8 Temper Anodized Industrial Aluminium Profile System DIN/ISO 9001:2015

Large Image : Customized CNC Machining 6063 6061 T5-T8 Temper Anodized Industrial Aluminium Profile System DIN/ISO 9001:2015

Product Details:

Certification:	SONCAP, ISO, RoHS, TUV
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	1

Contact Now

Detailed Product Description

Grade:	6000 Series	Temper:	T3-T8
Alloy:	6063, 6061	Surface Finishing:	Anodic Oxidation
Surface Treatment:	Anodizing/Powder Painting	Polishing Method:	Chemical/Mechanical Polish
Production Capacity:	50000PCS /Month	Tensile Strength:	160-265Mpa
Yield Strength:	110-245Mpa	Elongation:	≥ 8%
Max Extrusion Diameter:	350mm	Max Extruder Capacity:	6800 Ton
CNC Machining Length:	Up To 6 Meters	Punching Thickness:	Over 5MM
Anodizing Colors:	Silver, Black, Gold, Champagne, Imitation Steel
Highlight:	T5-T8 Temper Aluminium Profile System , 60 Series Aluminum Extrusion Frame System , DIN/ISO 9001:2015 Custom Aluminum Extrusions

OEM 6063 6061 Customized CNC Machining Anodized Industrial Aluminium Profile System

MetalPlus produces an extensive assortment of top-quality, customized standardized casings. Our selection of industrial enclosures for electronics includes aluminum profile housings, die-cast aluminum boxes, standard aluminum chassis, rack mount enclosures, and CNC precision machined components.

Key Advantages

Custom aluminum profile housing manufactured using state-of-the-art CNC processing equipment
Precision manufacturing based on customer specifications
Reliable on-time delivery

Product Specifications

Product Name	Anodized Industrial Aluminium Profile System
Material	Aluminum
Size	Customized according to drawings, samples, or requests
Services	One-stop services including stamping, forging, casting, and machining
Design	Customized according to customer requirements
Industry Standards	DIN/ISO 9001:2015, RoHS compliant
Payment Term	L/C, T/T
Quality Control	RoHS tester

Additional Information

Sample orders and small quantities accepted
Fast shipping options available (DHL, EMS, UPS, FedEx)
Located in Jiangyin City, China's manufacturing base
Design support available for product applications

Technical Specifications

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest

Mechanical Properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

Technical Support

Custom design services including CAD drawings and 3D models
Professional R&D team for design analysis and optimization
One-stop service from design to final product
Strict quality control throughout production process

Manufacturing Capabilities

Extrusion

44 aluminum extrusion lines capable of producing profiles with maximum outer diameter of 350mm. Largest extruder is 6800 ton unit for industrial profiles up to 600mm diameter.

Anodizing

6 anodizing production lines producing uniform oxidation film in various colors including silver, black, gold, champagne, and imitation steel.

CNC Machining

12 PRATIC machining centers for complex profile machining
Fully automatic cutting machines from Wegoma
30 punching machines (50-100 ton capacity)
10 stretch bending/bending machines
10 milling machines for various machining requirements

Certifications

Notable Projects

Soccer City Stadium, Johannesburg: Supplied aluminum components for Africa's largest capacity stadium (94,000 seats).

Lobster Trailers: Partnered with Nordic trailer giant for aluminum components.

School Furniture: Supplied aluminum legs for school desks.
