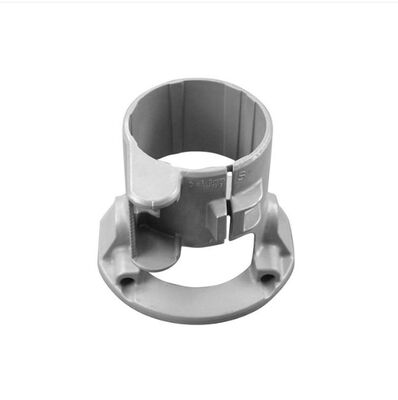

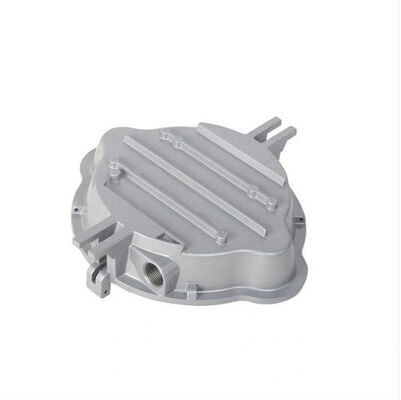

Customized Dimensions Aluminum Die Casting with CT7 Tolerance Grade and Ra 12.5um Surface Roughness

Large Image : Customized Dimensions Aluminum Die Casting with CT7 Tolerance Grade and Ra 12.5um Surface Roughness

Product Details:

Certification:	ISO 9001:2000
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	1.99

Contact Now

Detailed Product Description

Material:	Aluminum Alloy	Tolerance Grade:	7
Surface Roughness:	Ra 12.5um	Weight Range:	0.1-100kg
Max Linear Size:	1200mm	Max Diameter Size:	600mm
Machining Precision:	0.008mm	Reposition Accuracy:	0.006mm
Machining Roughness:	Ra0.8~6.3um	Max Spindle Travel:	1800mmx850mmx700mm
Max Turning Diameter:	1000mm	Casting Process:	High Pressure Die Casting
Production Capacity:	10000 Pieces/Year	Extruder Capacity:	6800 Ton
Max Profile Diameter:	600mm
Highlight:	CT7 Tolerance Grade Aluminum Die Casting , Ra 12.5um Surface Roughness Aluminum Casting , Customized Dimensions Precision Die Casting

Aluminum Casting & Industrial Profiles

MetalPlus specializes in aluminum industrial profile design and manufacturing with a 100,000+ square meter production base and annual capacity exceeding 100,000 tons.

Product Portfolio

Aluminum Profile Systems	Die Casting Solutions
Aluminum Profile System Aluminum Extrusion Enclosure LED Aluminum Extrusion Profiles Aluminum Frame Customized Aluminum Profile Aluminum Heat Sink Electric Motor Housing Aluminum Profile Construction Aluminum Profile Aluminum Extrusion Tube	Die Casting LED Housing Stainless Steel Casting Aluminum Casting Aluminum Composite Panel (ACP)

Aluminum Casting Process

Aluminum is the primary material for producing lightweight parts through casting. Low pressure casting of aluminum alloy involves filling molds and solidifying under low working pressure (0.06-0.15MPa) to achieve high-quality castings.

Precision die casting parts are widely used in hardware components, automotive motor parts, machinery components, and medical equipment.

Technical Specifications

Parameter	Specifications
Material	Aluminum Alloy, Carbon Steel, Alloy Steel, Stainless Steel
Process Flow	Drawings → Mould Making → Die Casting → Rough Machining → CNC Machining → Surface Treatment → Product Checking → Packing → Delivery
Casting Dimension Tolerance	CT7-CT8
Casting Surface Roughness	Ra 12.5μm
Casting Weight Range	0.1-100kg
Casting Size	Max linear size: 1200mm, Max diameter size: 600mm
Machining Precision	Positioning accuracy 0.008mm, Repeat positioning accuracy 0.006mm
Machining Surface Roughness	Ra 0.8-6.3μm
Max Travel Of Spindle	1800mm × 850mm × 700mm
Max Turning Diameter	1000mm
Material Standards	GB, ASTM, AISI, DIN, BS, JIS, NF, AS, AAR
Surface Treatment	Electroplating, Chrome Plating, Zinc Plating, Nickel plating, Electrophoresis, Anodization, Polishing, Powder coating, Sandblasting, Passivation, Spray painting
Casting Process Types	High Pressure Die Casting (HPDC), Vertical Low Pressure Die Casting (LPDC), Precision Sand Casting, Lost Foam Casting, Investment Casting, Metal Casting
Service Available	OEM & ODM
Quality Control	0 defects, 100% inspection before packing
Applications	Train & railway, automobile & truck, construction machinery, forklift, agricultural machinery, shipbuilding, petroleum machinery, construction, valve and pumps, electric machine, hardware, power equipment
MOQ	1 TON
Payment Terms	T/T, L/C at sight
Port	Shanghai Port

Company Advantages

17+ Years Experience

Extensive manufacturing expertise in aluminum extrusion with regular exports to US and European markets.

Advanced Design Capabilities

Strong R&D team for design, extrusion, CNC machining, milling, and turning with fast turnaround.

Complete Processing Facilities

Comprehensive metal processing including laser cutting, CNC bending, welding, and stamping.

Quality Assurance

Rigorous control throughout manufacturing process ensures long-term stability and excellent quality.

Technical Support Services

Custom design services for extruded profiles including CAD drawings and 3D models
Design analysis and optimization by professional R&D team to reduce costs and improve performance
One-stop service from product design to surface treatment with complete quality control

Manufacturing Capabilities

Extrusion Facilities

44 aluminum extrusion lines with PLC control systems, including a 6800-ton extruder for profiles up to 600mm diameter. Custom mold production for complex structures.

Anodizing

6 anodizing production lines with uniform oxidation film thickness and color options including silver, black, gold, champagne, and imitation steel.

Painting

4 powder spraying lines using Gema Switzerland nozzles with environmentally friendly, durable paints.

CNC Machining

Advanced machining equipment including 12 PRATIC machining centers, automatic cutting machines, 30 punching machines, and bending equipment for precise manufacturing.
