Customized Dimensions Round LED Lighting Housing Aluminum Casting Shell with CNC Machining and Polished Surface

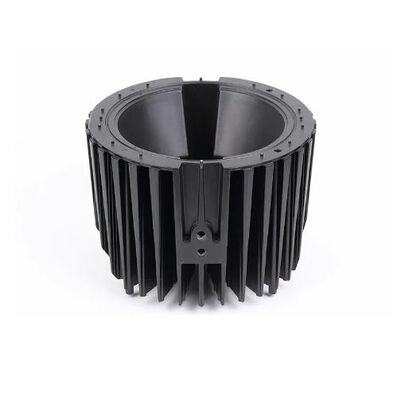

Large Image : Customized Dimensions Round LED Lighting Housing Aluminum Casting Shell with CNC Machining and Polished Surface

Product Details:

Certification:	ISO 9001:2000
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	1.99

Contact Now

Detailed Product Description

Material:	Aluminum Alloy	Surface Preparation:	Polishing
Pressure Chamber:	Customized	Tolerance Grade:	7
Surface Quality:	12.5	Processing Method:	Pressure Casting
Production Capacity:	10000 Pieces/Year	Alloy Options:	6063, 6061, 6060, 6005, 6082
Temper Options:	T5, T6	Tensile Strength:	160-265Mpa
Yield Strength:	110-245Mpa	Elongation:	≥8%
Extrusion Capacity:	350mm Max Diameter	Machining Equipment:	12 PRATIC Centers
Anodizing Lines:	6 Production Lines
Highlight:	Customized Dimensions LED Lighting Housing , CNC Machining Aluminum Casting Shell , Polished Surface Precision Die Casting

Round LED Venue Lighting Housing Aluminum Casting Precision Shell

Metalplus specializes in aluminum industrial profile design and manufacturing with a production base of more than 100,000 square meters and annual capacity exceeding 100,000 tons.

Product Specifications

Material: Aluminum alloy 6063, 6061, 6061, 6082, 6005 or according to requirement
Temper: T5, T6
Quality standard: GB5237-2008
Surface treatment: Mill finish, anodized, powder coated, electrophoresis, sand blasting, PVDF coating, wood grain painting, matted, polishing bright
Color available: Silver, Bronze, champagne, Matte, Natural for anodizing, RAL for powder coating
Packing details: Protected film inside and shrinking film outside
Samples time: Two weeks after receiving mold fee
Delivery: 20 days after deposit
Production Capacity: 100,000 tons/year
MOQ: 1 TON
Payment terms: T/T, L/C at sight
Port: SHANGHAI PORT
17 press extruder capacity
OEM & ODM service available

Manufacturing Process

Die design → Die making → Extruding → Cutting → CNC Machining → Surface treatment → Packing

Company Advantages

Over 17 years of manufacturing experience in aluminum extrusion
Strong design, extrusion, CNC machining, milling, and turning capabilities
Complete metal processing machines including laser cutting, CNC bending, and welding
Comprehensive quality control throughout manufacturing process
Regular exports to United States and Europe with established customer base

Material Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest
6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	-	0.15	0.1	0.15	Rest
6005	0.6-0.9	0.35	0.1	0.1	0.40-0.6	0.1	0.1	0.1	0.15	Rest

Mechanical Properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
6063	T5	≥ 160MPa	≥ 110MPa	≥ 8%
6063	T6	≥ 205MPa	≥ 180MPa	≥ 8%
6061	T6	≥ 265MPa	≥ 245MPa	≥ 8%

Technical Support

Custom design services including CAD drawings and 3D models
Professional R&D team for design analysis and optimization
One-stop service from product design to surface treatment
Quality control throughout production process
Cost reduction and performance improvement through design optimization

Production Capabilities

Extrusion

44 aluminum extrusion lines with maximum outer diameter of 350mm, including 6800 ton unit for profiles up to 600mm diameter.

Anodizing

6 anodizing production lines with uniform oxidation film thickness and color options including silver, black, gold, champagne, and imitation steel.

Painting

4 powder spraying lines using high-quality Gema Switzerland spray nozzles with environmentally friendly, durable paint.

CNC Machining

Advanced machining equipment including 12 PRATIC machining centers, automatic cutting machines, 30 punching machines, and bending equipment.

Quality Assurance & Packaging

Strict warehouse management with manual packaging and comprehensive inspection before delivery.

Notable Projects

Soccer City Stadium, Johannesburg

Main aluminum supplier for Africa's largest capacity stadium (94,000 seats).

Lobster Trailers

Collaboration with Nordic trailer giant featuring design optimization and advanced processing.

Dadn School Project

Supplier of aluminum legs for school desks with strong design and manufacturing capabilities.
