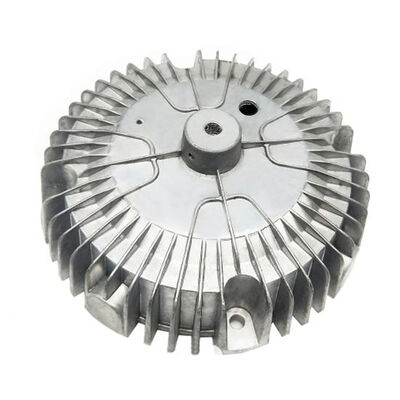

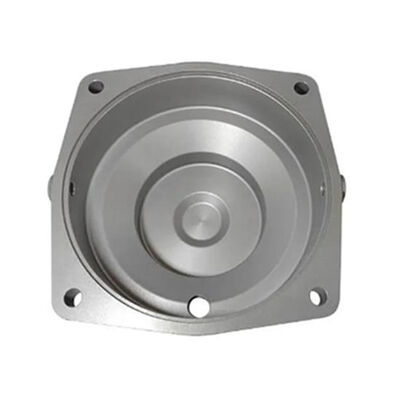

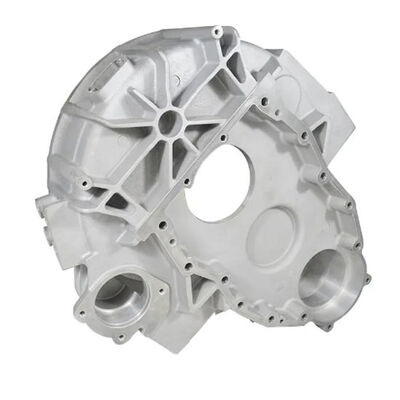

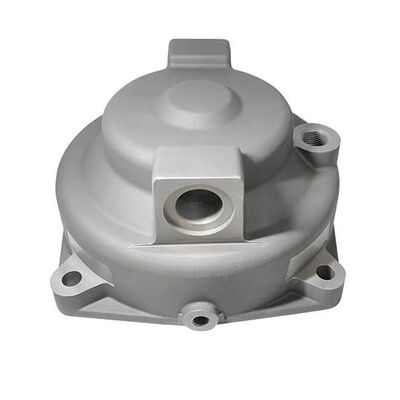

Actuator Motor Housing ADC12 Aluminum Investment Die Casting

Large Image : Actuator Motor Housing ADC12 Aluminum Investment Die Casting

Product Details:

Certification:	ISO 9001:2000
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	1.99

Contact Now

Detailed Product Description

Material:	Aluminum Alloy	Tolerance Grade:	7
Surface Treatment:	Anodizing	Casting Dimension Tolerance:	CT7-CT8
Casting Surface Roughness:	Ra 12.5um	Casting Weight Range:	0.1-100kg
Casting Size:	Max Linear Size:1200mm, Max Diameter Size: 600mm	Machining Precision:	Positioning Accuracy 0.008mm, Rep. Position. Accuracy 0.006mm
Machining Surface Roughness:	Ra0.8~6.3um	Max Travel Of Spindle:	1800mmx850mmx700mm
Max Turning Diameter:	1000mm	Casting Process Type:	High Pressure Die Casting (HPDC), Vertical Low Pressure Die Casting (LPDC), Precision Sand Casting, Lost Foam Casting, Investment Casting, Metal Casting
Production Capacity:	10000 Pieces/Year	Surface Preparation:	Polishing
Alloy:	Stainless Steel, Aluminum, Etc.
Highlight:	ADC12 aluminum actuator motor housing , aluminum die casting actuator housing , investment die casting motor housing

Actuator Motor Housing ADC12 Aluminum Investment Die Casting

Metalplus specializes in aluminum industrial profile design and manufacturing with a production base of over 100,000 square meters and annual capacity exceeding 100,000 tons.

Aluminum Profile	Aluminum Fan Blade Profiles
Aluminum Profile System	Customized Aluminum Profile
Aluminum Extrusion Enclosure	Aluminum Heat Sink
LED Aluminum Extrusion Profiles	Electric Motor Housing Aluminum profile
Aluminum Frame	Construction Aluminum Profile

Product Description

Aluminum is the most frequently used material for aluminum castings to produce lightweight parts. The basic principle of low pressure casting involves filling aluminum molds with liquid aluminum alloy under low working pressure (0.06-0.15MPa) to obtain high-quality castings through controlled solidification.

Precision die casting parts are widely used in hardware components, automotive motor parts, machinery components, medical equipment, and various industrial applications.

Specifications

Parameter	Details
Material	Aluminum Alloy, Carbon Steel, Alloy Steel, Stainless Steel
Process	Drawings → Mould Making → Die Casting → Rough Machining → CNC Machining → Surface Treatment → Product Checking → Packing → Delivery
Casting Dimension Tolerance	CT7-CT8
Casting Surface Roughness	Ra 12.5um
Casting Weight Range	0.1-100kg
Casting Size	Max linear size: 1200mm, Max diameter size: 600mm
Machining Precision	Positioning accuracy 0.008mm, Repeat positioning accuracy 0.006mm
Machining Surface Roughness	Ra0.8~6.3um
Max Travel Of Spindle	1800mm x 850mm x 700mm
Max Turning Diameter	1000mm
Material Standard	GB, ASTM, AISI, DIN, BS, JIS, NF, AS, AAR
Surface Treatment	Electroplating, Chrome Plating, Zinc Plating, Nickel plating, Electrophoresis, Anodization, Polishing, Powder coating, Sandblasting, Passivation, Spray painting
Casting Process Type	High Pressure Die Casting (HPDC), Vertical Low Pressure Die Casting (LPDC), Precision Sand Casting, Lost Foam Casting, Investment Casting, Metal Casting
Service Available	OEM & ODM
Quality Control	0 defects, 100% inspection before packing
Application	Train & railway, automobile & truck, construction machinery, forklift, agricultural machinery, shipbuilding, petroleum machinery, construction, valve and pumps, electric machine, hardware, power equipment
MOQ	1 TON
Payment Terms	T/T, L/C at sight
Port	SHANGHAI PORT

Our Advantages

We export the majority of our customized products to the United States and Europe, building long-term relationships with regular customers. Our extensive experience enables us to easily satisfy diverse customer requirements.

Over 17 years of manufacturing experience in Aluminum Extrusion
Strong design capabilities with fast extrusion, CNC machining, milling, and turning services
Complete metal processing capabilities including stamping, laser cutting, CNC bending, and welding
Comprehensive quality control throughout the manufacturing process for long-term stability and excellent quality

Technical Support

Our comprehensive technical support services include:

Custom design services for extruded profiles with CAD drawings and 3D models
Professional R&D team analysis and design optimization to reduce production costs and improve product performance
One-stop service model covering product design, custom molds, aluminum bar melting, extrusion profiling, precision machining, and surface treatment

Factory Equipment

Extrusion

Equipped with 44 aluminum extrusion lines capable of producing commercial and industrial aluminum profiles with maximum outer diameter of 350mm. Our largest 6800-ton extruder handles industrial profiles up to 600mm diameter for complex structures including radiators, industrial fan blades, motor enclosures, and solar cell frames.

Anodizing

Six anodizing production lines create uniform oxidation films for improved corrosion resistance, hardness, and wear resistance. Available in silver, black, gold, champagne, and imitation steel colors with custom options available.

Painting

Four powder spraying lines using high-quality Gema Switzerland spray nozzles with safe, environmentally friendly paint featuring strong adhesion and durable color retention.

CNC Machining

Advanced machining equipment operated by experienced technicians ensures precision and quality:

12 PRATIC machining centers for milling, drilling, and tapping profiles up to 6 meters
Fully automatic Wegoma cutting machines for precise cutting with continuous material feeding
30 punching machines (50-100 tons capacity) for thick profiles over 5mm
10 stretch bending machines for precise arc and angle bending
10 milling machines for various plane, bevel, and groove machining

Packing & Shipping

Manual packaging with strict warehouse management procedures, organized storage sections, comprehensive transaction recording, and pre-delivery examination.

Certifications

Company History

2004: Recognized Brand of the Building Industry Material Market
2006: Product Exemption from Quality Surveillance Inspection Certificate & ISO9001
2009: Advanced Company, Jiangsu Famous Brand Certificate, Credible Product of Quality in Jiangsu Province
2012: Established business relationships with Panasonic and LG
2015: Innovative producer and supplying partner for European clients
2017: Developed new baseboard heater products
2019: Cooperated with world's largest heater manufacturers, supplying aluminum shells
2023: Expanding overseas distributor network for win-win benefits

Project Portfolio

Soccer City Stadium, Johannesburg: As main aluminum supplier for Africa's largest 94,000-seat stadium, we contributed to this major South African construction project.

Lobster Trailers: Collaboration with Nordic trailer giant featuring design analysis, improvement, and optimized processing to minimize costs and enhance product performance.

School Project: Supplied aluminum legs for school desks, supporting local customer Dadn's successful bid with strong design capabilities and mature technology.
