XPS TILE BACKER BOARD

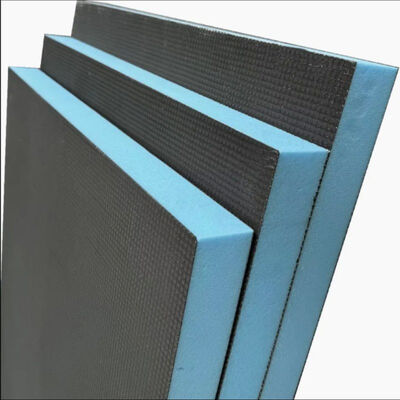

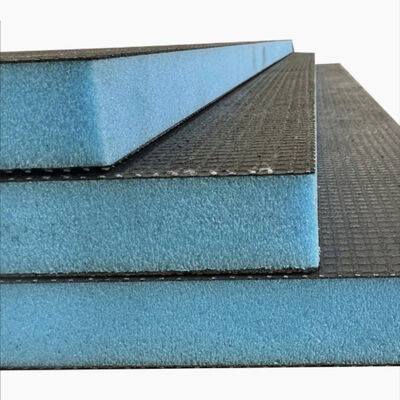

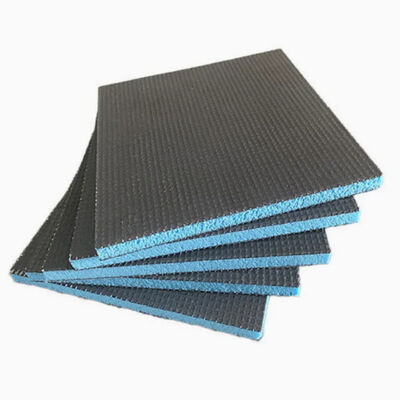

XPS (Extruded Polystyrene) Tile Backer Board is a high-performance construction materials, crafted from extruded polystyrene foam with a fiber-reinforced cement coating.
Its lightweight yet rigid, easy to cut and shape properties, mold-resistant makes it ideal for wet environments, preventing structural damage from water penetration.
It also serves as an underlayment for radiant floor heating systems and provides thermal insulation for walls, roofs or floors.
Compared to traditional cement boards, it reduces structural load, simplifies installation, and ensures dimensional stability in humid conditions. Whatever for both residential and commercial projects, it serves as a reliable alternative to traditional cement boards or plywood, ensuring long-lasting even in high-humidity areas.
Product Description
Our high quality XPS foam board can be produced according to the following parameters or customers' special requirements.
| Product type |
polystyrene foam sheets |
| Thickness |
10mm-150mm |
| Width |
600mm - 1220mm |
| Length |
According to customer's request |
| Color |
Blue/Pink/Yellow/White/Customized |
| Density |
28~50 Kg/M3 |
| Comperssive strength |
200~800 Kpa |
| Application |
Floor Heating / Floor Insulation / Roof Insulation / Wall / |
| Function |
Heat insulation / waterproof / fireproof / sound proof |
| Surface |
Withskin / Without skin / Grooved / Smooth Planing / Roughing |
Metalplus specializes in XPS Board &Aluminum profiles manufacturing.
Has a production base of more than 100,000 square meters, capacity more than 720 000 M3 XPS boards annually.
Core Product Advantages
-
Excellent Waterproof & Moisture Resistance: Adopts fully closed-cell XPS foam core structure with nearly zero water absorption. The double cement-coated fiberglass surface completely resists water penetration and moisture erosion, effectively preventing wall dampness, mildew, peeling, and tile falling off in bathroom and shower areas.
-
Superior Thermal Insulation Performance: XPS core features outstanding heat insulation and low thermal conductivity. It effectively reduces indoor and outdoor heat exchange, keeps indoor temperature stable, saves heating and cooling energy consumption, and is perfectly compatible with underfloor heating systems to improve heating efficiency.
-
Lightweight & High Strength: Compared with traditional cement backer boards, our XPS tile backer board is lighter in weight, easy to transport and handle, while maintaining high compression resistance and structural stability. It will not hollow, deform or crack after long-term use.
-
Easy & Fast Construction: The board can be easily cut into any size and shape with a common utility knife, supporting custom processing for shower niches, shower benches, and pipe boxing. It can be directly bonded or mechanically fixed on walls, floors and stud frames, realizing one-step wall forming.
-

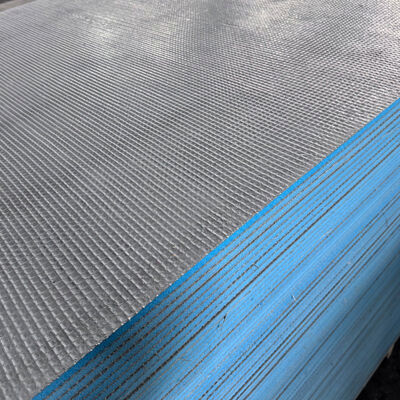

Direct Tiling Surface: The rough cement-coated surface provides strong adhesion for tile adhesive. Ceramic tiles, porcelain tiles, natural stone and mosaic can be tiled directly on the board surface without additional plastering or leveling treatment.
-
Durable & Eco-friendly: Made of high-quality environmentally friendly materials, non-toxic and odorless. It features strong aging resistance, corrosion resistance and long service life, adapting to various harsh humid indoor environments.
Installation Guidelines
XPS Tile Backer Board supports two standard installation methods (bonding fixing and mechanical fixing), suitable for different base wall conditions. Strict joint sealing treatment is required to ensure overall waterproof performance.
1, Base Requirement
The installation base (concrete wall, brick wall, wooden or steel stud frame, cement floor) must be clean, dry, flat, firm and free of dust and loose layers.
2,Two Installation Methods
Method 1: Adhesive Bonding (Most Popular)
Apply uniform flexible C2 grade cement-based tile adhesive on the base or board surface with a notched trowel, then press and paste the backer board firmly on the wall or floor. This method is widely used for new decoration and old house renovation projects.
Method 2: Mechanical Fixing
For hollow stud frame walls, use special waterproof screws with gaskets to fix the board. Screw heads need to be sunk slightly below the board surface without damaging the board core structure.
3, Key Waterproof Sealing Steps
The board itself is 100% waterproof, but gaps are the main leakage risks. All board joints, internal and external corners, screw holes, and pipe cut-outs must be fully sealed with professional waterproof joint tape and waterproof sealant. After the sealing layer is completely cured, tile construction can be carried out.
4,Tiling Instruction
Use flexible tile adhesive for thin-layer tiling. Do not use ordinary cement mortar to avoid insufficient adhesion and tile falling off.
Wide Applications
1, Residential Applications
-
Shower walls, shower floors and full wet rooms
-
Bathroom wall and floor tiling substrate
-
Kitchen splashback and floor wet areas
-
Balcony and terrace waterproof tiling projects
-
Underfloor heating insulation and tiling base
-
Custom shower niche, shower bench and pipe boxing fabrication
-
Laundry room moisture-proof wall renovation
2,Commercial Applications
-
Hotel, apartment and villa bathroom renovation
-
SPA club, sauna room and leisure wet areas
-
Shopping mall, office and public restrooms
-
Swimming pool surrounding walls and floors
-
Basement moisture-proof and tiling engineering
-
School, hospital and public building wet area projects
