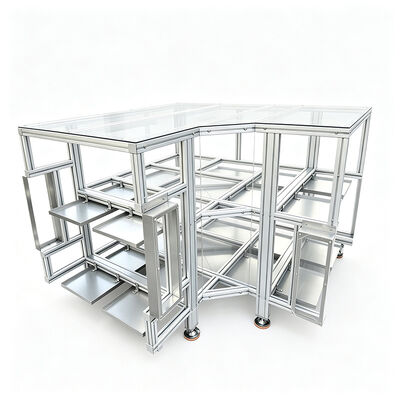

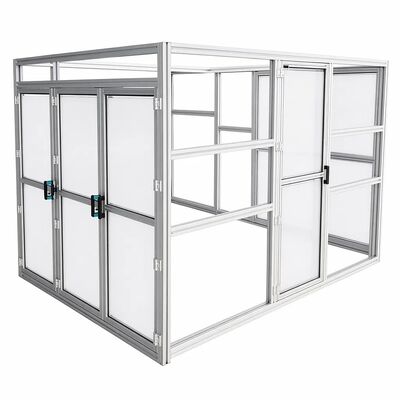

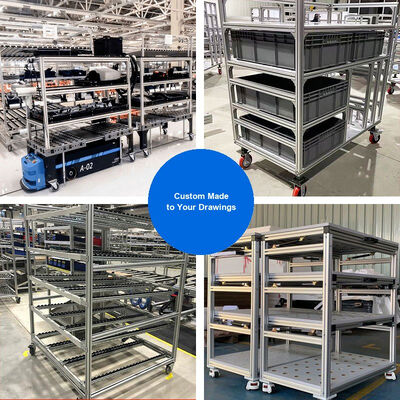

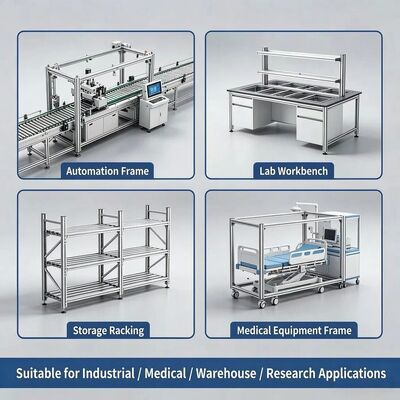

Custom T-Slot Aluminum Profile Structures: Industrial Workbenches, Storage Racking, Modular Platforms & Partition Rooms

Large Image : Custom T-Slot Aluminum Profile Structures: Industrial Workbenches, Storage Racking, Modular Platforms & Partition Rooms

Product Details:

Certification:	CE, ISO
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	9.9

Contact Now

Detailed Product Description

Alloy Grade:	6000 Series (6063, 6061, 6060, 6005)	Temper:	T3-T8 (T4, T5, T6)
Profile Dimensions:	20x20mm, 25x25mm, 30x30mm, 30x40mm, 40x40mm, 80x80mm, 100x100mm	Slot Width:	6mm, 8mm, 10mm
Standard Length:	6m Per Piece	Surface Treatment:	Sandblasting Anodized, Powder Coating, Brushing, Passivation, Polishing, Wood Grain, Plating, PVDF
Anodizing Thickness:	AA10, AA15, AA20, AA25	Tensile Strength:	≥160MPa (6063-T5), ≥205MPa (6063-T6), ≥265MPa (6061-T6)
Yield Strength:	≥110MPa (6063-T5), ≥180MPa (6063-T6), ≥245MPa (6061-T6)	Elongation:	≥8%
Profile Shape:	T-Profile, Square, Round, Customized	Extrusion Force:	3600 Ton
Max Heat Sink Diameter:	600mm	Package Dimensions:	200cm X 4cm X 4cm
Package Gross Weight:	1.000kg
Highlight:	custom T-slot aluminum workbenches , modular aluminum storage racking , aluminum partition room structures

MetalPlus engineers and manufactures anodized AA25 T-slot aluminum extrusion systems for industrial workbenches, storage racking, modular platforms, and partition rooms. With a production base exceeding 100,000 m² and annual capacity above 100,000 tons, we deliver precision aluminum profile solutions from mold design through extrusion, surface treatment, and final fabrication.

Product Range & Capabilities

Aluminum ProfilesAluminum profile systems, extrusion enclosures, LED extrusion profiles, aluminum frames, customized profiles, heat sinks, electric motor housings, construction profiles, and extrusion tubes.

Die CastingDie-cast LED housings, stainless steel castings, and aluminum castings.

ACPAluminum composite panels for architectural and industrial applications.

Fan BladesAluminum fan blade profiles engineered for balance and durability.

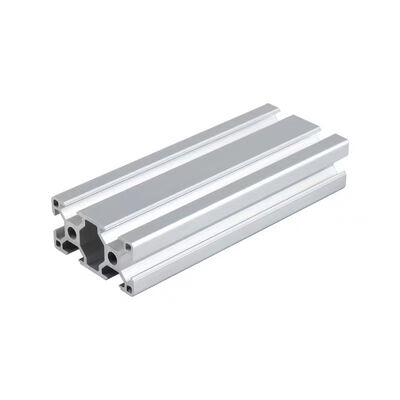

T-Slot Aluminum Profile Specifications

Product	T-Slot Aluminum Profiles Extrusion Frame
Material	6000 series aluminum alloy
Temper	T4, T5, T6
Surface Treatment	Powder coating in RAL colors, anodizing (AA10/15/20/25), sandblasting, brushing, passivation, silk screen, mechanical/chemical polishing, wood grain coating/wooden transfer, galvanizing, (nickel/tin/chrome/copper) plating, PVDF, matte finishes, and more
Size	40×40 mm, 30×30 mm, 30×40 mm, 25×25 mm
Slot Width	6 mm, 8 mm, 10 mm
Length	Standard 6 m per piece; precision free cutting to any size with dedicated cutting equipment
Appearance	Square, round, T-shaped, or fully customized
Color	Wood grain, aluminum silver, brilliant black, cream white, chocolate brown, bronze, champagne, golden yellow, and custom colors

Product Parameters

1) Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2–0.6	0.35	0.1	0.1	0.45–0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4–0.8	0.7	0.15–0.4	0.15	0.8–1.2	0.04–0.35	0.25	0.15	0.15	Rest
6060	0.3–0.6	0.1–0.3	0.1	0.1	0.35–0.6	—	0.15	0.1	0.15	Rest
6005	0.6–0.9	0.35	0.1	0.1	0.40–0.6	0.1	0.1	0.1	0.15	Rest

2) Mechanical Properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
6063	T5	≥ 160 MPa	≥ 110 MPa	≥ 8%
6063	T6	≥ 205 MPa	≥ 180 MPa	≥ 8%
6061	T6	≥ 265 MPa	≥ 245 MPa	≥ 8%

Packaging & Shipping

Packaging: Standard export packaging is used by default; custom packaging requirements from clients are also accepted.

Shipping:

Samples are shipped by express courier (FedEx, DHL, UPS, EMS); freight is paid by the client.
Mass production ships FOB Shanghai; freight terms are confirmed based on specific conditions.
Delivery time: 3 weeks after all order details are confirmed.

Company Profile

MetalPlus invested in a 3,600-ton express extrusion machine in 2007, enabling our factory to produce heat sinks with a maximum diameter of 600 mm. Shapes can be fully customized to customer requirements and project specifications.

We specialize in a wide range of aluminum extrusions for construction and industry. Depending on client needs, we provide mold making, extrusion, surface treatment, and fabrication as a complete service.

Certifications

Company History

2004Recognized Brand of the Building Industry Material Market.
2006Certificate for Product Exemption from Quality Surveillance Inspection; ISO9001 certification.
2009Advanced Company; Jiangsu Famous Brand Certificate; Certificate for Credible Product of Quality in Jiangsu Province.
2012Established business relationships with Panasonic and LG.
2015Became an innovative producer and supplying partner for European clients.
2017Developed new baseboard heater products.
2019Cooperated with the world's largest heater manufacturers, supplying aluminum shells and earning a strong reputation.
2023Expanded overseas distributor development to grow the market for win-win benefits.

Project References

Soccer City Stadium — Johannesburg, South Africa

Soccer City Stadium is one of South Africa's major projects, with a 94,000-seat capacity making it the largest stadium in Africa. MetalPlus is honored to have participated in its construction as the main aluminum supplier. The stadium received unanimous praise after completion.

Lobster Trailers — Nordic Trailer Manufacturer

Lobster Trailers is a Nordic trailer giant, and MetalPlus is proud to cooperate with them. Our professional R&D team analyzes and improves upon Lobster's designs, then processes them with excellent equipment and exquisite technology. We minimize production costs and improve product performance through our optimization expertise.

School Project — Dadn

Our local customer Dadn won the bid for a school project, and MetalPlus supplied the aluminum legs for the school desks. With strong design capabilities and mature techniques, we help more customers win tenders.
