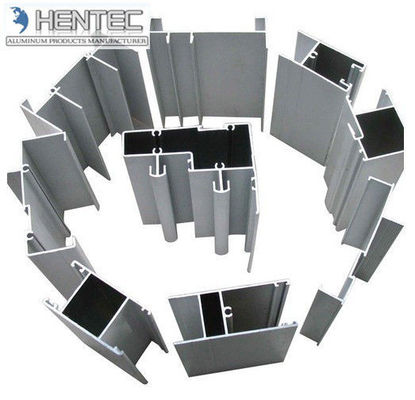

Powder Painted Aluminium Door Profiles For Deep - Processing

Powder Painted Aluminium Door Profiles For Deep - Processing
Powder Painted Aluminium Door Profiles For Deep - Processing

Large Image :  Powder Painted Aluminium Door Profiles For Deep - Processing

Product Details:
Place of Origin: China
Brand Name: HT
Certification: CA ,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: EP Paper ,kraft and pallet
Delivery Time: 20days
Payment Terms: T/T or L/C
Supply Ability: 100 000 ton each month
Detailed Product Description
Material: Aluminum Alloy Temper: T5 / T6
Alloy: 6063 / 6061 / 6060 Surface: Powder Painted
Color: Customerized
High Light:

extruded aluminium profiles

,

profile aluminum extrusions

Descrition:



Powder Painted  Aluminum Window Extrusion Profiles , Customerized Colour

Material :6063 6060 6061 6005 6082 T4 T5 T6 T66

Surface : Mill Finished,  Powder Coating ,Chemical and Mechanical Polishing, Sand Blasting , Satin, Bronze, Black, Golden, Silver, Anodizing, Electrophoresis

MOQ :500 kgs . Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

Packing :

EPE, wrapped with waterproof paper ,pallet ,wooden case .

Sample delivery time : Two weeks (one week for mould +one week making sample)

Maximum extruder machine : 4000 tons;

Minimum extruder machine : 500 tons




Order,payment,terms,shipment


1, Minimum order: 500kg per trial order 1 piece of sample free of charge provided by approval and kept for future mass production.
2, Sample Lead Time: 25 working days(15 days for making the tool and 10 days making the samples. Before sending the samples to customer, samples should pass strict test in our lab. )Production Lead time: it depends on customers' order quantity ( 30 working days after deposit).
3, Payment: (Can negotiate with customers, our usual practices are as follow)
4, Tooling:100% prepaid by T/T.
5, Parts:30% upon order confirmation and balance before delivery by T/T



Applications:

Aluminum profile used for making aluminum door .There are many colors can be selected for surface treatment .The strength can be increased by higher wall thickness . It is possible to produce according to customized design .



Powder painted / Anodized Aluminium Window Profiles , aluminium extrusion sections

Specifications:

1. Primary Technical Data

1) Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest





2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%







Competitive Advantage:



1. Top Aluminium profile manufacturer for more than 10 years in China.
2. Diverse Products used in the fields of construction, industry and deep-processing.
3. Quality Control is put in the core position of our production.
4.  Customized Production shows our capability in product design and process control.
5. Perfect Customer Services include careful packaging, quick delivery and good
     after-sale service.



Powder painted / Anodized Aluminium Window Profiles , aluminium extrusion sections
