Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Alloy: | 6060 6061 |
|---|---|---|---|
| Temper: | T5 T6 | Surface: | Anodizing |
| Color: | Silvery , Black | Logo: | Printing |
| High Light: | aluminum electrical enclosures,extruded aluminum enclosure boxes |
||

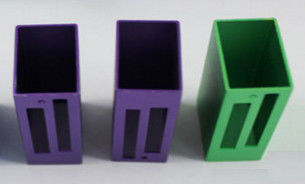

Colored Anodizing Aluminum Electrical Shell / Electrical Cover / Heat Exchanger
1.Alloy :6063,6061,6005 or according to customer’ s choice
2.Material:Aluminum
3.Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4.Deep process: Milling, Drilling, Bending,Cutting.
Description:
| Type | Electrical Cover |
| Profile | General profile for square tube, round tube, rails, corner, handrail and etc. Doors&windows profile, Curtain wall profile, Closet door profile, furniture profile, Pontoon profile, Heat sink, air conditioner profile |
| Finish products | Electrical Shell / Cover |
| Item | Original Product | Alternatives |
| Shape | general | Round, Square, Triangle, Rectangle etc. and Customized shapes are welcomed. |
| Alloy | 6063 alloy | 6061,6082,6060,6005,6N01Alloy etc. |
| Temper | T5 | T4,T5,T6 can be discussed. |
| Finishing | Painted | Mill finished, Anodized, Electrophoresis, Powder coated,Sand blasted, Painted, Wood grain, Heat-insulating etc. |
| Standard for Extrusion | Mill finish | GB 5237.1-2008 |
| Standard for anodic oxidation | GB 5237.2-2008 | |
| Standard for Electrophoresis | GB 5237.3-2008 | |
| Standard for Powder coated | GB 5237.3-2008 | |
| Standard for Heat-insulating | GB 5237.6-2008 | |
| Etc | ||
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2)Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
2.Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Competitive Advantage:
1. 15 years experience in providing ONE-STOP customized aluminium extrusion and doors&windows finish product solution; 14+ years of exporting to 46+ countries;
2. ISO: 9001:2008, TUV, RoHS, SGS, Reach, D&B
3. 100% new aluminum material
4. Competitive prices with short lead-time
5. Effective and strong technical support (40+ engineers) and excellent sales services (80+ sales representatives).
6. Sufficient production capacity:
65 extruding lines with capacity 600tons to 7000tons;
15 environment-friendly casting rod lines;
8 lines of anodic oxidation and electrophoresis each;
7 powder spraying lines;
3fluorocarbon spraying line;
18 heat-insulating lines;
5 wood-grain line.
