| Material: | Aluminum | Surface: | Bright Anodize |
|---|---|---|---|
| Warranty: | 15years | Alloy: | 6063/6060/6005/6061 |
| Water Proof: | Water Proof | Logo: | Silk Screen |
| Highlight: | aluminum electrical enclosures,extruded aluminum enclosure boxes |
||

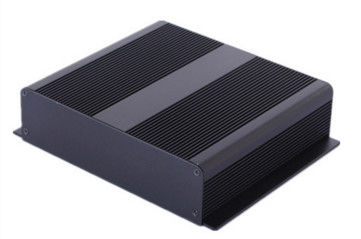

Bright Black Anodizing Aluminum Electrical Shell / 6063 / 6061 / 6005
Advance:
| Our Advance |
| (1).Direct from factory |
| (2).Low(1-2%)scrap rate |
| (3).All kinds of metal&plastic material is available |
| (4). High Tolerance: +/- 0.02mm(Metal shaft), +/-0.03mm(plastic) |
| (5). 100% inspection(offer QC report) |
| (6). Sample is available |
| (7). Short lead time (5-20 days). |
| (8). One-stop customized service |
Description:
Product Details
| Item | Custom 6000 Series Anodised Aluminium Extrusion LED Profile |
| Material | Aluminium 6000 series alloy: such as 6063 6005 6061 |
| Temper | T4 T5 T6 |
| length | 3-6 Meter per piece, or as your inquire |
| Shape | Round,square,flat,hollow,oval,triangle,U-profile,L-profile,T-profile,customized avaiable |
| Thickness | General profile Thickness: 0.7 - 5.0mm |
| Deep process | CNC ,drilling ,milling ,cutting ,bending ,tapping ,welding ,assembling ,punching |
Surface treatment
| Surface treatment | Mill-finish,Anodized,Powder coated,Electropheresis,Wood grain,Brushed, Polishing |
| Anodized thickness | 8 - 25um |
| Anodized Color | Silver,black,chanpagne,bronze,gold or customized |
| Electropheresis Color | Silver,black,chanpagne,bronze,gold or customized |
| Powder coated Color | All color by RAL ,or customer's color sample |
| Powder coated thickness | 40 - 120um |
| Wood grain | customized |
| Guarantee | surface Brightly can be stable for 10 - 20years |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2)Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
2.Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
