Product Details:
Payment & Shipping Terms:
|
Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
---|---|---|---|
Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 ,T66 |
Highlight: | aluminium heatsink extrusion,aluminium extrusion heat sink profiles |
Descrition:
Hentec Industry Company is the professional manufacturer of the aluminum extrusion profiles , and able to provide various of aluminum products and part with different surface treatment and finished machining .
Item |

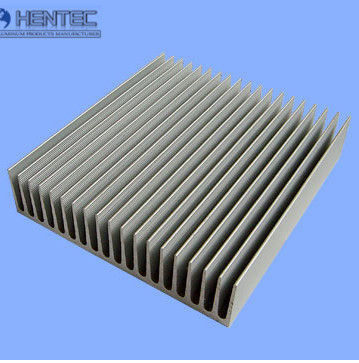

Clear Anodized Aluminum Heatsink Extrusion Profiles , Aluminum Industrial Porifle |
Alloy |
6061,6060,6063,6005 etc |
Temper |
T4, T5, T6,T66 |
Finishing |
Mill finished, Anodized, Electrophoresis, Powder coated, Painted, Sliver matt, Sand blasted, PVDF, Silkscreened etc. |
Shape |
Round, Square, Triangle, Rectangle etc...and Customized shapes are welcomed. |
Technology Supports |
1, Engineering design |
Standard for Extrusion |
GB /T5237-2008 .EN-755-2/3/6/8, BS-1474, BS 1161 (British Standards),JIS H4100 (Japanese Standard),AS/NZS1866-1997 (Australian New Zealand Standard) |
Machining & Fabrication |
Cutting, Shearing, Deburring, Tumbling, Punching, Drilling, Tapping, Chamfering, Cold-drawing, Honing, Bending, Stamping, Forming, Polishing, Grinding, Brushing, Sandblasting, Welding Numerical Control Lathing, Milling, Sophisticated CNC Precision Machining |
Packing method |
1. Standard packing: Eachprofile will be wrapped in the EPE sheet in order to protect the profiles' surfaces, kraft paper wrapped in bundles. |
Order,payment,terms,shipment
1, Minimum order: 500 kg per trial order 1 piece of sample free of charge provided by approval and kept for future mass production.
2, Sample Lead Time: 25 working days(15 days for making the tool and 10 days making the samples. Before sending the samples to customer, samples should pass strict test in our lab. )Production Lead time: it depends on customers' order quantity ( 30 working days after deposit).
3, Payment :30% T/T in advance the balance after the copy of BOL .
Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...
Specifications:
1. Primary Technical Data
1)Chemical composition
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1, This aluminum extraction profile for heat sink offers excellent engineering design and technical support .
2, With the deep processing ,it will be cut ,punched ,drilled ,milled and then fabricated into the finished product .
3, It is guaranteed on the excellent performance for as long as 15 years .
