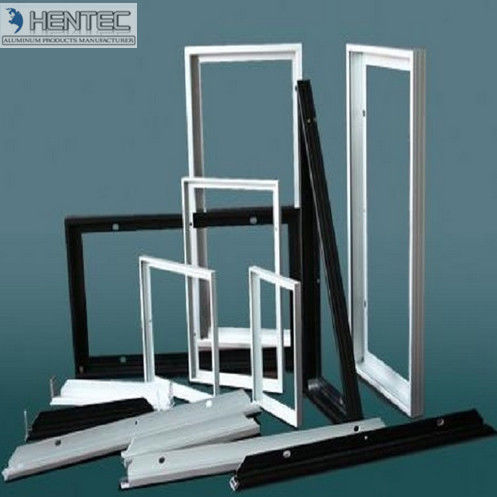

Portable Solar Panel Aluminum Frame Solar Ground Mount Frame

Portable Solar Panel Aluminum Frame Solar Ground Mount Frame
Portable Solar Panel Aluminum Frame Solar Ground Mount Frame

Large Image :  Portable Solar Panel Aluminum Frame Solar Ground Mount Frame

Product Details:
Place of Origin: China
Brand Name: HT
Certification: CA ,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Packed with EP ,Carton ,Pallet or wooden case
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 3000tons each month
Detailed Product Description
Product Name: Aluminum Solar Panel Frame Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T4, T5, T6
High Light:

anodized aluminum frame

,

solar panel aluminum frame



Portable Solar Panel Aluminum Frame Solar Ground Mount Frame

Product Description

Solar panels (photovoltaic modules) aluminum frame
A. Solar module aluminum frame Size Description:
1) 17 * 17, 20 * 20, 23 * 17, 25 * 25, 28 * 25mm, etc., suitable for solar street lamps and other small solar power generation equipment;
2) 30 * 25, 35 * 30mm, suitable for 30-100W solar modules;
3) 35 * 35mm, suitable for 80-180W solar modules, length is generally 1580 * 808mm (the most common frame size);
4) 40 * 35mm, suitable for 120-200W solar modules, length is generally 1580 * 808mm;
5) 45 * 35mm, suitable for 180-250W solar modules, length is generally 1580 * 808 and 1650 * 992mm;
6) 50 * 35mm, suitable for 200-300W solar modules, length is generally 1650 * 992 and 1960 * 992mm;
7) Many other customized according to customer's special sizes, such as 40 * 28mm, 40 * 30mm, 42 * 35mm, 46 * 30mm, 46 * 35mm, 46 * 40mm, 46 * 48mm, 46 * 50mm, 46 * 60mm, 60 * 35mm and so on.

B. Two types:
1) 90 Angle (screw border)
2) 45 corner (Corner Borders)

C. Surface treatment:
1) Anodized (silver, bronze, black, gold, silver, other colors)
2) Electrophoresis
3) powder coating, PVDF, polishing, sand blasting

Standard: GB/T5237 - 2004, Q/320281PDW01-2008
Size: According to your design drawings, model
Note: 1. Various sizes for our existing solar frame, without open new mold.
2 aluminum frame is very popular in Europe.
3. We can follow your design drawings requirements.





Portable Solar Panel Aluminum Frame Solar Ground Mount Frame 0






Our Advantages!

1. 22 years' experiences of manufacturing .

2. STRONG R&D: Help customers finalize the design, strong tool design ability,excellent pressing and surface treament technology.

3.Strict quality management: ISO Administration system.

4. 24 hours on-line communication.Professional, Patient, Flexible.

5. High capacity of manufaturing and wide range of products.

6. Be able to provide secondary fabricating.

7. Small order is accepted.

8. Be able to provide one-stop supply solution.

9. Multiple payment methods: TT, LC. DP,OA.


Portable Solar Panel Aluminum Frame Solar Ground Mount Frame 1

Portable Solar Panel Aluminum Frame Solar Ground Mount Frame 2

Portable Solar Panel Aluminum Frame Solar Ground Mount Frame 3

Portable Solar Panel Aluminum Frame Solar Ground Mount Frame 4

Portable Solar Panel Aluminum Frame Solar Ground Mount Frame 5

Portable Solar Panel Aluminum Frame Solar Ground Mount Frame 6


Applications:

1) Living house and home building.
2) Commercial building, factory, shopping mall, school, stadium etc.
3) Power station, field operation and some huge engineer construction.


Competitive Advantage:

In addition to high quality ,we at Hentec office offer customer complete service .Our aluminum solar frame comes with a 15 year warranty .Maintenance service is also available .





Portable Solar Panel Aluminum Frame Solar Ground Mount Frame 7
