T5 / T6 6000 Series Anodized Aluminum Solar Panel Frame ISO9001 Certification

T5 / T6 6000 Series Anodized Aluminum Solar Panel Frame ISO9001 Certification
T5 / T6 6000 Series Anodized Aluminum Solar Panel Frame ISO9001 Certification

Large Image :  T5 / T6 6000 Series Anodized Aluminum Solar Panel Frame ISO9001 Certification

Product Details:

Place of Origin: China
Brand Name: HT
Certification: CA ,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Packaging Details: Packed with EP ,Carton ,Pallet or wooden case
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 3000tons each month
Detailed Product Description
Product Name: Aluminum Solar Panel Frame Alloy: 6063,6061,6005,6060
Material: Aluminum Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T5,T6
High Light:

aluminium solar panel frame

,

anodized aluminum frame





T5 / T6 6000 Series Anodized Aluminum Solar Panel Frame ISO9001 Certification



Solar Panel Frame.pdf

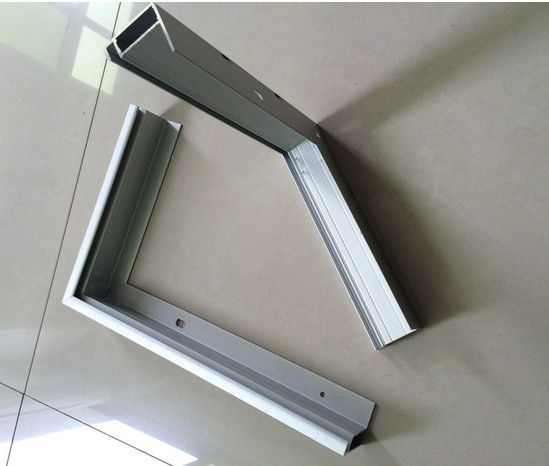

6000 Series Aluminum Solar Panel Frame With ISO9001 Certification Anodized Aluminum Frame



Hentec Industry is one of the largest Auminium Extrusion Manufacturers with 15 years of experience experience .



We Supply quality Solar Panel Frames to a number of the world's leading companies.



We are cooperating with SHARP , BOSCH , PANASONIC , AKCOME...

T5 / T6 6000 Series Anodized Aluminum Solar Panel Frame ISO9001 Certification 0



Item 6000 series aluminium solar panel frame
Shape square, round, rectangular, customized
Application In furniture, windows&doors, decorations ,industry, construction and so on
Colors Ref powder coating color sheet and customized color available
Deep process CNC, drilling, milling, cutting, welding, bending, assembling
MOQ 500kgs for each item
Packing Details (1)Inside : packed with plastic protective film to protect each piece
(2) Outside: Wrap to be bundles by waterproof craft paper
Delivery time (1)Die Developing and Sample testing: 12-18 days .
(2) Mass Production completed: 20-30days after sample is confirmed by Buyer.
Payment terms T/T 30% for deposit, balance before shipping.
Settlement term Charge by final actual weight or by drawing theoretical weight.
Production capacity 5000 tons monthly, 60000 tons annually.
Certificate & Standard CQM, SGS, CE, BV, SONCAP / GB, ISO, JIS, AS, NZS, QUALICOAT, QUOLANOD available
Guarantee Surface color can be stable for 10~20 years indoor using.
Aluminium Alloy Chemical Composition
Alloy 6063 (%) 6063A (%) 6061 (%) 6082 (%)
Si 0.2~0.60 0.3~0.60 0.4~0.80 0.7~1.30
Fe 0.35 0.15~0.35 0.7 0.5
Cu 0.1 0.1 0.15~0.40 0.1
Mn 0.1 0.15 0.15 0.40~1.0
Mg 0.45~0.90 0.60~0.90 0.80~1.20 0.6~1.20
Cr 0.1 0.05 0.04~0.35 0.25
Zn 0.1 0.15 0.25 0.2
Ti 0.1 0.1 0.15 0.1
Other (each) 0.05 0.05 0.05 0.5
Other (total) 0.15 0.15 0.15 0.15
Al Remainder Remainder Remainder Remainder



Description:


Standard : European standard , CHINA GB.


Surface treatment : Anodize , Electrophosis , or according to customer's special request .



Joint Method: 1)Corner Joint 2) screw joint

We will install the Corker Key to two short side , it will be very easy to install after you receive the goods .





Our solar panel frame has the following characteristics:


(1) We have the mature processing technology, our solar frame can adapt to a variety of environmental, with good weather resistance.


(2) Mature surface treatment technic , the surface of our frame is zero-defected , our solar panel frame has good wear resistance, corrosion resistance. So our solar panels with more than 30 years life .


(3) We have customized products for SHARP, East-China and many other international companies, we have the experience to provide you what you need .





Hentec owns 44 extrusion production line introduced from Taiwan .
T5 / T6 6000 Series Anodized Aluminum Solar Panel Frame ISO9001 Certification 1







Hentec has 6 units aluminum oxide surface treatment production line .

T5 / T6 6000 Series Anodized Aluminum Solar Panel Frame ISO9001 Certification 2





Powder Sparying Workshop

T5 / T6 6000 Series Anodized Aluminum Solar Panel Frame ISO9001 Certification 3





Our Machining Workshorp

T5 / T6 6000 Series Anodized Aluminum Solar Panel Frame ISO9001 Certification 4



T5 / T6 6000 Series Anodized Aluminum Solar Panel Frame ISO9001 Certification 5
