3D / CAD Design Die Casting Products With Aluminium Die Casting Process

3D / CAD Design Die Casting Products With Aluminium Die Casting Process
3D / CAD Design Die Casting Products With Aluminium Die Casting Process
video play

Large Image :  3D / CAD Design Die Casting Products With Aluminium Die Casting Process

Product Details:
Place of Origin: CHINA
Brand Name: HENTEC
Certification: ISO9001-2008
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard Export Box
Delivery Time: 2-5 weeks
Payment Terms: T/T
Detailed Product Description
Material: Zinc/Aluminum Ingot Or Customized Surface Treatment: Polishing,duburring,powder Painted,painted,heat Treatment
Color: All Color Availlable Dimensions: Common Praction Or Customized
Design: 3D Or CAD Package: Standard Export Box
High Light:

Die Casting Parts

,

Aluminum Die Casting

Key Specifications/Special Features:
    Aluminum tripod is used for the auto level,the odolite and total stations.This surveying tripod accommodates 5/8''×11 instruments. It has telescoping legs ,allowing for setup at various heights.This tripod is ideal for mounting auto levels.This tripods extends 1600mm and retracts 950mm and features a flat head.

Product Details:

Item Name Aluminum/Zinc Die-casting For Die-casting For Aluminum Tripod Parts
Material Aluminum/Zinc Igot or customized
Surface Treatment Polishing,duburring,powder painted,painted,heat treatment
Dimensions Common praction or customized
Applications Aluminium Tripod for the auto level, the odolite and total stations
Processing Pattering-molding-maching-cleaning-finishing
Machine Size Hot die-casting machine 90T, Cold die-casting machine180T/400T/950T
Weight Per Unit Can cast from 0.02-25KG per pieces
Tooling Lead Time 2-5weeks for mold design and fabrication
Tolerance Grade 0.5mm can reach 0.05mm after CNC job


Products description as below:

3D / CAD Design Die Casting Products With Aluminium Die Casting Process 0

Model:J-1A

Fully Extended Length:1700mm

Retracted Length:1070mm

Thread:5/8'' or M16

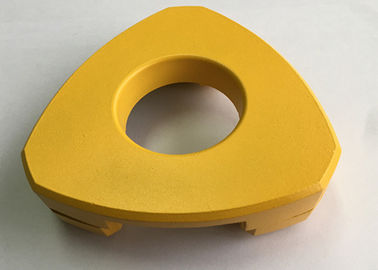

Head Size:142mm

Head Bore:58mm

Weight:4.2kg


Factory Introduction:
Workshop
Mold Workshop
In house tooling design and fabrication, normally one day one mold produced. we have vertical machining center, planar machining center as well as tens of high-precision equipments such as WEDM-LS cutting machines and EDM machines.
Die Casting Workshop
We have a total of 20 high-precision die-casting machines, 60 Germany Vinohans Machines, and hundreds of CNC lathes and 30 porous drilling machines. Material feeding, discharging, cleaning and conveying are all automatically finished by mechanical arms. There are 4 lines can meet your mass production requirements.
Auto Spray Workshop
We have independently researched and developed six spraying systems with characteristics of environmental protection, full-automation and full-enclosure and have technique patent.It adopts electrostatic spraying and owns dust exhaust system.



Product Procedure:

3D / CAD Design Die Casting Products With Aluminium Die Casting Process 1

Produce range:

▪Machinery parts ▪Auto/motor parts
▪Hardware parts ▪Lighting components
▪Electric motor parts ▪Agriculture Machinery
▪Medical Equipment parts ▪Electrical appliances


Primary Competitive Advantage:

▪Packaging ▪Price
▪Product Performance ▪Prompt Delivery
▪Quality Approvals ▪Service
▪Small Order Accepted ▪Military Specification


Main Export Markets:

▪Asia ▪Australasia
▪Central/South America ▪Eastern Europe
▪Mid East/Africa ▪North America
▪Western Europe


Applications:
    Precision die-casting parts are widely used in the hardware parts ,the production of auto parts,machinery parts and medical equipment and so on.

Machined parts production range:
   We are a professional manufacturer with most of our products being applied to the production of instrument die-casting,sewing machine die-casting,washing machine die-casting,explosion -proof motor box and other components.

FAQ
Q: How to get a quotation and start business relationship with your company?
A: Please send us email and our sales representative will contact you as soon as we receive your email.

Q: How to receive a quotation in the shortest time?
A: When you send us an enquiry, please try to provide more details, such as product size, photo or drawing, order quantity, etc. With these, the sales representative can offer you an accurate quotation

Q: How to start an OEM project with your company?
A: Please send us your designed drawings or original samples so that we can offer a quotation first. If all details are confirmed, we will arrange sample production once received your deposit.

Q: What's your MOQ?
A: The MOQ depends on the design and production processes of the products. Normally if we have your product in stock, 100 pieces is also OK. But it can be much more or less depending on different product types. Therefore, we recommend you to tell us your required quantity first.

Q: How long can I receive an order?
A: That depends on the specific items and your order quantity. The lead-time varies from 7 to 90 days.


    Our company have the advanced cutting and stamping equipments.We can cut,stamp and other process according to the size of different aluminum.

    Our company can undertake the production of zinc/aluminum alloy die-casting mold,stainless steel stamping die.Hot die casting machine 90T,Cold die casting 180T/400T/950T and all spray polishing equipments provide the external processing.

    We sincerely serve every customer. Welcome customers from all over the world to establish good & long business relationship with us and benefit from our rich experience and resource. You may rest assured that we will satisfy you by providing quality products, competitive price, timely delivery and good services.
