Anodised Fan Blade Aluminium Industrial Profile Extrusions High Volume Low Speed

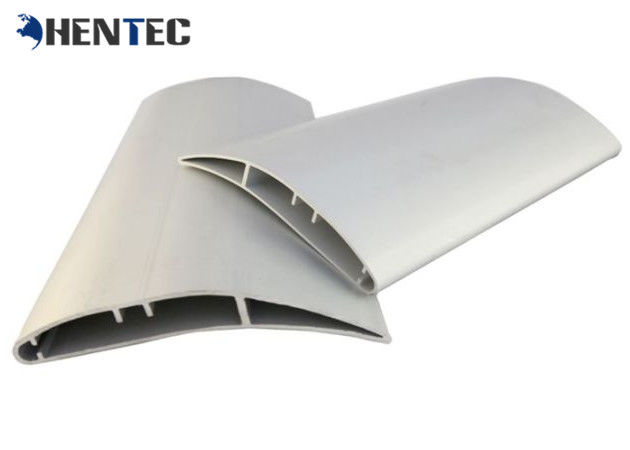

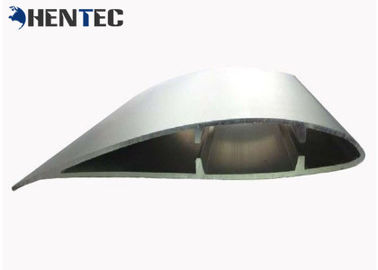

Large Image : Anodised Fan Blade Aluminium Industrial Profile Extrusions High Volume Low Speed

Product Details:

Place of Origin:	China
Brand Name:	HENTEC
Certification:	CA ,CE
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	500set
Packaging Details:	Ep paper , pallet or wooden case
Delivery Time:	20days
Payment Terms:	T/T ,L/C
Supply Ability:	100 000sets each month

Contact Now

Detailed Product Description

Product Name:	Industrial Fan Blade	Material:	Aluminum
Temper:	T4, T5, T6	Surface:	Anodizing
Machining:	1. Milling; 2. Drilling; 3. Bending; 4. Cutting ...	Certificate:	ISO14001:2004, ISO9001:2000
Highlight:	replacement fan blade , palm frond fan blades

Anodised Fan Blade Aluminium Industrial Profile Extrusions High Volume Low Speed

Description:

NO.	ITEM	Aluminum Fan Blade
1	Material	Aluminum alloy 6000 series
2	Temper	T4/T5/T6
3	Length	Up to 12 meters
4	Width	140MM to 240mm
5	Height	Up to 40 mm
6	Wall thickness	At least 1 mm
7	Surface finish	Anodic Oxidation,powder coating,etc.
8	Standard China	GB5237-2008
9	Packing way	Packed with EP foam individually
10	Manufacturing process	Aluminum extrusion process

Specifications:

Chemical composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest
6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	-	0.15	0.1	0.15	Rest
6005	0.6-0.9	0.35	0.1	0.1	0.40-0.6	0.1	0.1	0.1	0.15	Rest

2)Mechanical property

Alloy	Temper	Tensile strength	Yield strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

Competitive Advantage:

1)Engineering design and support.
2)Deeply processing of Industrial Fan Blade :cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.

Applications:

Industrial Fan Blade used in factory, buildings, trains machinery ,electronics, medical and other industrial filed .
Anodised Fan Blade Aluminium Industrial Profile Extrusions High Volume Low Speed 0
