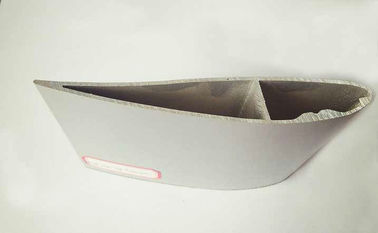

Anodized Al Extrusion Profile For Draught Fan / Air Cooling Tower

China Anodized Al Extrusion Profile For Draught Fan / Air Cooling Tower supplier
Anodized Al Extrusion Profile For Draught Fan / Air Cooling Tower supplier Anodized Al Extrusion Profile For Draught Fan / Air Cooling Tower supplier

Large Image :  Anodized Al Extrusion Profile For Draught Fan / Air Cooling Tower

Product Details:

Place of Origin: China
Brand Name: HT
Certification: CA ,CE

Payment & Shipping Terms:

Minimum Order Quantity: 500set
Packaging Details: Ep paper , pallet or wooden case
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000sets each month
Contact Now
Detailed Product Description
Product Name: Fan Blade Item: Aluminum Extrusion Profile Of Industrial Fan Blade
Temper: T5, T6 Surface: Anodize
Material: Aluminum Machining: 1. Milling; 2. Drilling; 3. Bending; 4. Cutting
High Light:

exhaust fan blades

,

palm frond fan blades

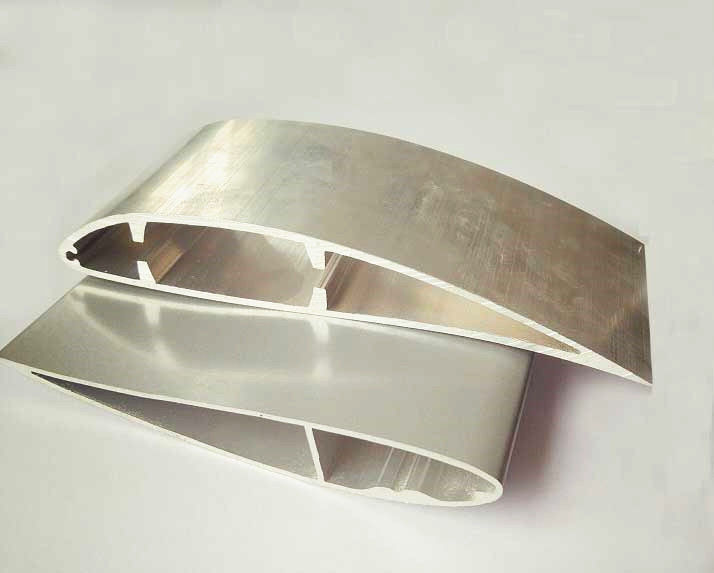

Anodized Aluminum Extrusion Profile Of Industrial Fan Blade , For Draught Fan / Air Cooling Tower / Industrial Fan


1. Reliable quality is certified by ISO9001:2008 and RoHS compliant
2. Competitive prices with short lead-time for both tooling and parts
3. Effective and strong technical support by over 40 engineers
4. Excellent sales services: Best attention to even the smallest detail
5. Sufficient production capacity
6. Efficient communication (48-hour quote lead time)
7. Strict Quality Control with Advanced Test & Inspection Equipments




Aspects Details Notice
Material Mainly aluminum alloy 6063,6061
Temper T4 , T5 , T6 , T66
Surface Treatment Mill Finish
Powder coating
Anodized
Electrophoresis
Sand- blasting
PVDF coating
Wood grain
corrosion resistance
impact resistance
long term durability
Thickness of film:
Andozied
≥10 microns
Powder coating
60-120 microns
Color Upon your need
Length according customer's request
Standard GB
Certification Qualicoat, BSI/TS16949, GJB9001B:2009, DNV/ISO9001:200, BSI/ISO9001:2008, GB/T23331:2012, ISO50001:2011, ISO9001:2008, ISO14001:2004, OHSAS18001:2007, CNCA-LC-0103:2014, CQC3116:2009
Production Capacity 400000 tons annually
Application for window and door/curtain wall/partition, wardrobe/handrail/ solar panel and so on Upon your need
Profile Package Standard export package kraft , wooden case ,  pallet  Or upon your need
Delivery 20-25 days per 40FT container
after confirmation of the order


Specifications:
1. Primary Technical Data
1) Chemical composition


2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%


3. Surface Treatment of Sections



(Class)

(μm),not diminish than

acid-resistant

abrasion resistance

(Min-average film
thickness)

(Min-part film
thickness)

CASS

   (S)



(h)

Class

(f, g /μm)

AA10

10

8

16

≥9

≥50

≥300

AA15

15

12

32

≥9

≥75

≥300

AA20

20

16

56

≥9

≥100

≥300

AA25

25

20

72

≥9

≥125

≥300




Competitive Advantage:

1.High hardness, hard aluminum series.
2.Fair corrosion resistance. Heat treatable
3.Good workability. Good appearance
4.High quality and reasonable price.
5.Our product is your best choice.

Anodized Al Extrusion Profile For Draught Fan / Air Cooling Tower 0




metal fan blades

,Aluminum fan blades

axial fan blade
