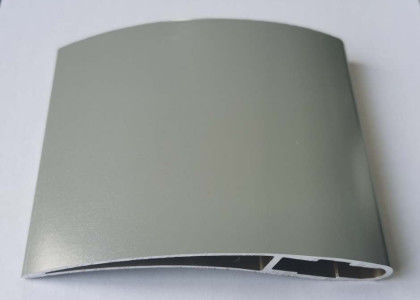

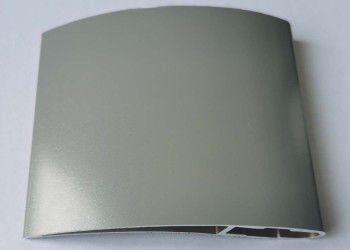

Powder Painted Cutting / Drilling T5 Ceiling Fan Blades

Powder Painted Cutting / Drilling T5 Ceiling Fan Blades
Powder Painted Cutting / Drilling T5 Ceiling Fan Blades Powder Painted Cutting / Drilling T5 Ceiling Fan Blades

Large Image :  Powder Painted Cutting / Drilling T5 Ceiling Fan Blades

Product Details:

Place of Origin: China
Brand Name: HENTEC
Certification: ROHS

Payment & Shipping Terms:

Minimum Order Quantity: 500set
Packaging Details: Ep paper , pallet or wooden case
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000sets each month
Detailed Product Description
Product Name: Industrial Fan Blade Item: Industrial Fan Blade Profile
Temper: T5, T6 Surface: Silvery Anodize
Material: Aluminum Machining: 1. Milling; 2. Drilling; 3. Bending; 4. Cutting
High Light:

6061 aluminum extrusion

,

6061 anodized aluminum



Silvery Anodized Ceiling Fan Blades Aluminium Extruded Profiles With Cutting / Drilling



Hentec Industry Co., Ltd is one China Manufactory, professional at aluminum extrusion profiles, both semi and final products, such as Aluminum fan blade .

Hentec can design and manufacture custom industrial aluminum extrusion fan balde profile according to your specific performance or design requirements , with our expertise and experience in fan blade profile design, tooling, prototypes, testing, balancing and large scale production.


Our 4500T grade extrusion machine enable us to produce any section within 400*150mm and φ360.
Your drawings are definitely welcomed.

Description
Product Name Aluminum Fan Blade
Material 6063 aluminium alloy
Temper T4 T5 T6
Surface treatment Mill finish, powder coating, anodizing, wooden grain coating, polishing, eletrophoresis, PVDF, sanding blasting, etc.
Size As customer's special request
Slot width 6MM,8MM,10MM
Color Natural silver, can be customised.
Surface Mill finish, Anodizeding, Sand Blasting, Powder coating, etc.
Deep processing Cutting, Drilling, Treading, Bending, etc.
Application Building, Industry, Machinery
Certification ISO9001






Specifications:

1. Primary Technical Data
1) Chemical composition

2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%


3. Surface Treatment of Sections



(Class)

(μm),not diminish than

acid-resistant

abrasion resistance

(Min-average film
thickness)

(Min-part film
thickness)

CASS

   (S)



(h)

Class

(f, g /μm)

AA10

10

8

16

≥9

≥50

≥300

AA15

15

12

32

≥9

≥75

≥300

AA20

20

16

56

≥9

≥100

≥300

AA25

25

20

72

≥9

≥125

≥300




Competitive Advantage:


1) Pure 99.7% aluminum materials without any scrap used
2) OEM welcome, we can design and cut die to meet customer's special demand
3) Wonderful surface treatment, we can meet customers required on surface
4) Strictly quality control process assured higher quality.
5) Hard alloy longer life span
6) Packing safety and convenient.



Application:
We produce all kinds of aluminum profiles,including:

1. Aluminum profile for window and door
2. Aluminum profile for curtain wall
3. Aluminium profile for furniture

4. Aluminium profile for bathroom
5. Aluminum profile for wardrobe door
6. Aluminum profile for kitchen cabinet
7. Aluminium profile for decoration using
8. Aluminium profile for vehicle and other industry using
9. Aluminium profile for lighting
10. Aluminum profile for handrail
11. Aluminum profile for fence
12. Aluminum rectangular,square,round tube,etc.DIY and standard profile
13. Aluminum profile for louver/shutter
14. Aluminium profile for solar panel
15. Aluminium profile for frame
16. Aluminium profile for equipment platform
17. Aluminum profile for LED strip,transportation,etc.
18. Aluminium profile for heat sink
