Cooling Towers Ceiling T5 Aluminum Fan Blade

Cooling Towers Ceiling T5 Aluminum Fan Blade
Cooling Towers Ceiling T5 Aluminum Fan Blade Cooling Towers Ceiling T5 Aluminum Fan Blade

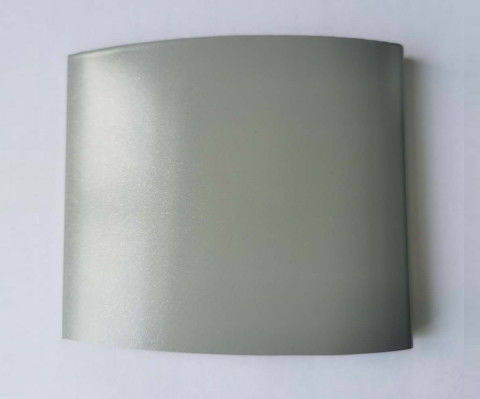

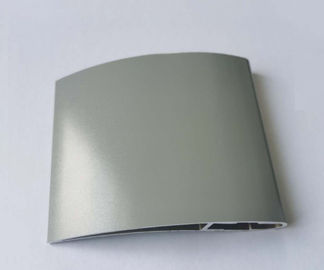

Large Image :  Cooling Towers Ceiling T5 Aluminum Fan Blade

Product Details:
Place of Origin: China
Brand Name: HENTEC
Certification: CA ,CE
Payment & Shipping Terms:
Minimum Order Quantity: 500set
Packaging Details: Ep paper , pallet or wooden case
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000sets each month
Detailed Product Description
Product Name: Industrial Fan Blade Item: Aluminum Extrusion Profile Of Industrial Fan Blade
Temper: T5, T6 ,T66 Surface: Anodize
Material: Aluminium Machining: 1. Milling; 2. Drilling; 3. Bending; 4. Cutting ...
High Light:

10mm aluminium profile

,

10mm aluminum extrusion



Cooling Towers Extruded Aluminum Profiles , Ceiling Aluminum Fan Blade



We are one of the biggest  aluminium factory in the east of China . Owning the most species-wide of aluminum profie in the world. Marketing occupancy of Fan blade profile in China is No. 1 .Deep Processing Ability for aluminum and CNC: Fabrication, Drill hole, milling, de-burr, chamfer, stretch bending, welding and so on.



Descrition:



1. Various sections for industrial application--heat radiators, flow line, elevators, textile industry, solar energy, vehicle lamps, medical treatment, ship building industry, etc
2. Raw materials varies from pure aluminum to alloy duralumin,
3. Material Type: 6063, 6061,6060,6005, etc;
4. Heat Treat.:T4/T5/T6
5. Surface Treatment: Anodized, Powder Coating, Electrophoresis, Wooden-pattern transfer, Thermal-break, Sand blasting, mechanical polishing,etc;
6. Color: Any color as per customer demand;
7. Packing: with foam and film in bales.



Specifications:
1. Primary Technical Data
1) Chemical composition


2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%


3. Surface Treatment of Sections



(Class)

(μm),not diminish than

acid-resistant

abrasion resistance

(Min-average film
thickness)

(Min-part film
thickness)

CASS

   (S)



(h)

Class

(f, g /μm)

AA10

10

8

16

≥9

≥50

≥300

AA15

15

12

32

≥9

≥75

≥300

AA20

20

16

56

≥9

≥100

≥300

AA25

25

20

72

≥9

≥125

≥300




Competitive Advantage:

1. High hardness, hard aluminum series.

2. Fair corrosion resistance. Heat treatable

3. Good workability. Good appearance

4. High quality and reasonable price.

5. Our product is your best choice.



Advantages of our company:
1. Owe 600-4000 tons extruders.We could produce big size of profile.
2. Monthly production capacity:4000 tons.
3. 99.9% raw aluminum ingot.General ALLOY:6063, 6061,6005, 6060,6082 .
4. We accept small QTY for special alloy.




    Cooling Towers Ceiling T5 Aluminum Fan Blade 0

FAQ:
Q1:Are you a factory or trading company?
A:We're a big-scale self-own factory,provide one-stop service for our customer,from material to various surface treatments,and from technical sales to shipping and to after-sales,so we can save the cost for client,control the quality and lead time,provide best service.

Q2:Where is your factory located?How can I visit there?
A:Our factory is located Wuxi City , JiangsuProvince,China.
The nearest port is Shanghai Port which is just about 1 hour by car away from our factory.

Q3:What's the production time for new molds and mass production?
A:7-15 days(up to the different size) to build new molds.Mass production usually take around 20 days from one order which can be from 1 ton to 300 tons.And we can process urgently if needed.

Q4:What is the payment terms?
A:30% deposit by TT and balance settled before shipping or against BL copy.And LC is also acceptable.

Q5:What's the quality level of your product?
A:Our product are 100% quality checked.The quality are totally according to clients' requirements.And we have many kinds of quality certificate,such as ISO9001,RohS,SGS,etc.

Q6:Which markets are you selling to?
A:We have been selling to many countries,such as Germany,Japan,South Korea,UK,Singapore,France,Russia,Spain,Belgium,South Africa,Nigeria,Madagascar,Costa Rico,Dominica,Panama,Mexico,Vietnam,Malaysia,Indonesia,Philippines,etc.
