Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Fan Blade | Item: | Aluminum Extrusion Profile Of Industrial Fan Blade |
|---|---|---|---|
| Temper: | T5, T6 ,T66 | Surface: | Anodize |
| Material: | Aluminium | Machining: | 1. Milling; 2. Drilling; 3. Bending; 4. Cutting ... |
| High Light: | anodize aluminum ceiling fan blades,t5 aluminum ceiling fan blades,6060 aluminum ceiling fan blades |
||

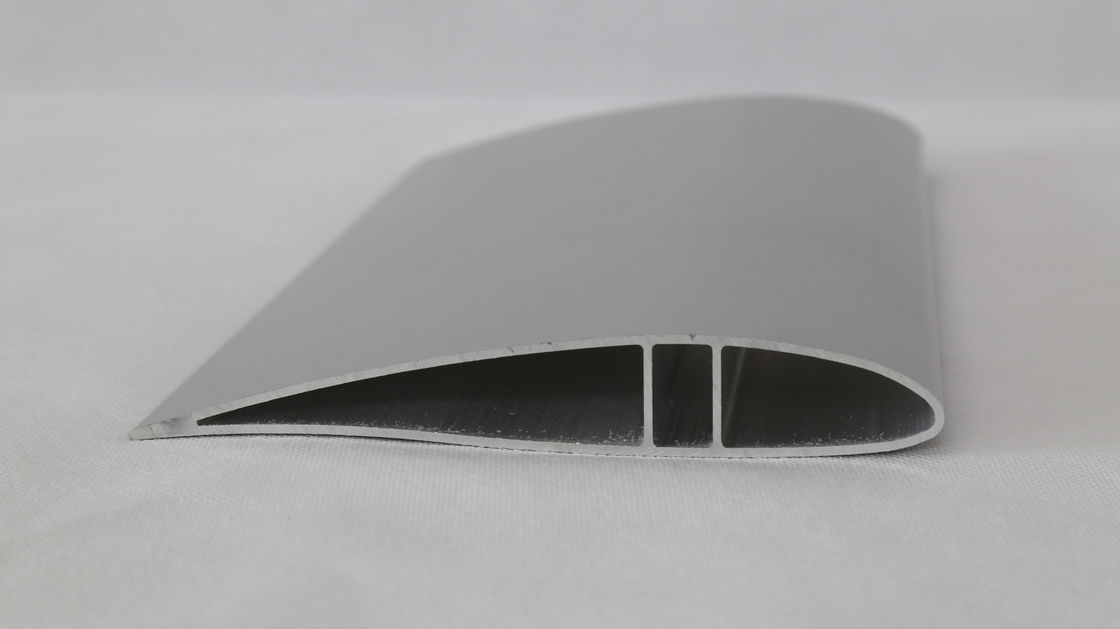

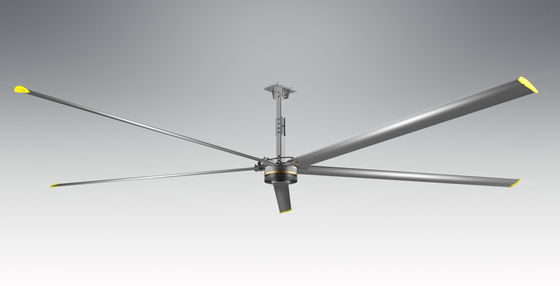

Aluminum Industrial Fan Blade , Ceiling Aluminum Fan Blades
Hentec can design and manufacture custom industrial aluminum extrusion fan balde profile according to your specific performance or design requirements , with our expertise and experience in fan blade profile design, tooling, prototypes, testing, balancing and large scale production.
Since 2007 Hentec invested the express extrusion machine with 6800ton extrusion force , enable us to produce the profiles with a maximum diameter of 600mm. So we are able to produce the fan blade with large section for you .
Descrition:
1. Various sections for industrial application--heat radiators, flow line, elevators, textile industry, solar energy, vehicle lamps, medical treatment, ship building industry, etc
2. Raw materials varies from pure aluminum to alloy duralumin,
3. Material Type: 6063, 6061,6060,6005, etc;
4. Heat Treat.:T4/T5/T6
5. Surface Treatment: Anodized, Powder Coating, Electrophoresis, Wooden-pattern transfer, Thermal-break, Sand blasting, mechanical polishing,etc;
6. Color: Any color as per customer demand;
7. Packing: with foam and film in bales.
Specifications:
1. Primary Technical Data
1) Chemical composition
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
3. Surface Treatment of Sections
|
|
(μm),not diminish than |
acid-resistant |
abrasion resistance |
|||
|
(Min-average film |
(Min-part film |
CASS |
(S) |
|
||
|
(h) |
Class |
(f, g /μm) |
||||
|
AA10 |
10 |
8 |
16 |
≥9 |
≥50 |
≥300 |
|
AA15 |
15 |
12 |
32 |
≥9 |
≥75 |
≥300 |
|
AA20 |
20 |
16 |
56 |
≥9 |
≥100 |
≥300 |
|
AA25 |
25 |
20 |
72 |
≥9 |
≥125 |
≥300 |
Competitive Advantage:
1. High hardness, hard aluminum series.
2. Fair corrosion resistance. Heat treatable
3. Good workability. Good appearance
4. High quality and reasonable price.
5. Our product is your best choice.
Advantages of our company:
1. Owe 600-4000 tons extruders.We could produce big size of profile.
2. Monthly production capacity:4000 tons.
3. 99.9% raw aluminum ingot.General ALLOY:6063, 6061,6005, 6060,6082 .
4. We accept small QTY for special alloy.
