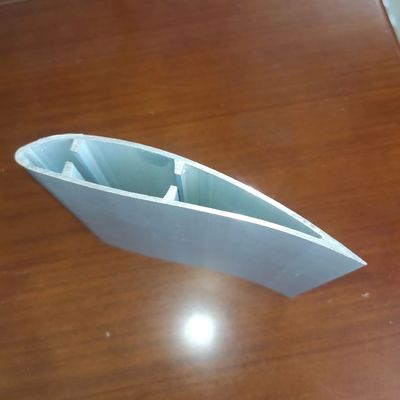

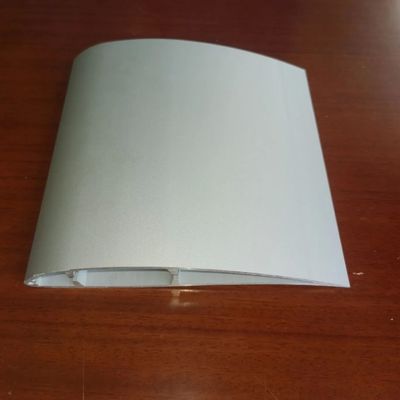

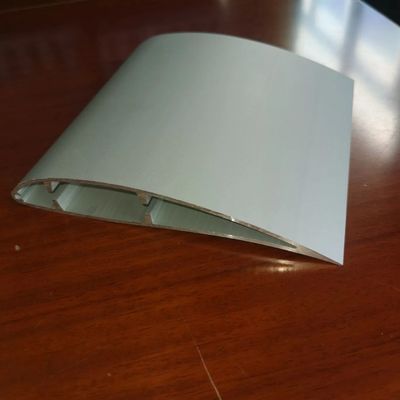

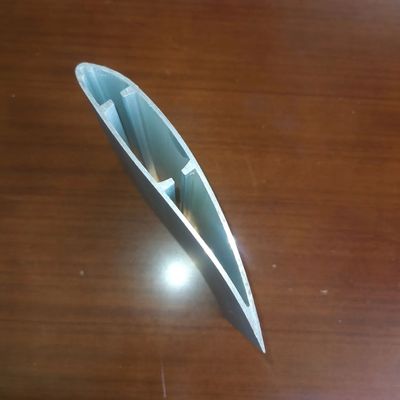

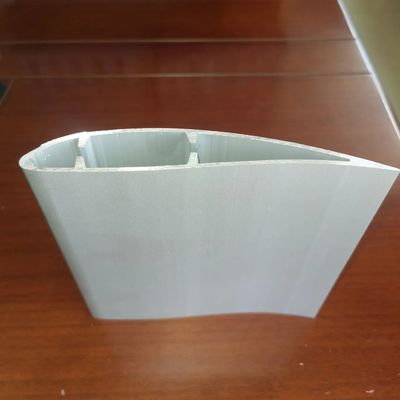

Silvery Anodized Anti Scratch Aluminium 6063 T5 Industrial Fan Blade / Ceiling Fan Blade
MetaPlus specializes in designing and manufacturing custom industrial aluminum extrusion fan blade profiles to meet specific performance and design requirements. With extensive expertise in fan blade profile design, tooling, prototyping, testing, balancing, and large-scale production, we deliver superior quality products.
Since 2007, MetalPlus has operated a 6800-ton extrusion machine capable of producing profiles with maximum diameters of 600mm, enabling production of large-section fan blades.
We supply zero-defect aluminum profiles for our customers!
Product Specifications
| Material | Aluminium alloy 6063 T5, or according to customer's request |
|---|
| Surface treatment | Mill finish, anodized, powder coated, electrophoresis, sand blasting, PVDF coating, wood grain painting, matted, polishing bright |
|---|
| Color | Silver, Bronze, Champagne, Matte, Natural for anodizing, RAL for powder coating, or customized colors |
|---|
| Length | Standard 5.8m to 6m, or customized lengths |
|---|
| Packing details | Protective film for each profile, paper/shrinking film for each bundle |
|---|
| Delivery time | 15-30 days after deposit and mold testing completion |
|---|
| Molds policy | 7-15 days for mold opening and testing; mold fee refunded when order reaches 5 tons per mold |
|---|
| Production Capacity | 150,000 tons/year |
|---|
| MOQ | 1 ton |
|---|
| Port | Shanghai Port |
|---|
| Machine | 44 advanced aluminum profile extrusion machines |
|---|
Primary Technical Data
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
|---|
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
Mechanical Properties
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
|---|
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| 6063 | T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Competitive Advantages
- Pure 99.7% aluminum materials without any scrap used
- OEM welcome - we design and cut dies to meet special requirements
- Superior surface treatment options to meet customer specifications
- Strict quality control processes ensure higher quality
- Hard alloy construction for longer lifespan
- Safe and convenient packaging
Technical Support
- Custom design services including CAD drawings and 3D models
- Professional R&D team for design analysis and optimization
- Complete "one-stop" service from design to surface treatment
- Strict control of alloy composition and production accuracy
Factory Equipment
Extrusion
With 44 aluminum extrusion lines including a 6800-ton unit, we produce industrial profiles up to 600mm diameter for applications including radiators, fan blades, motor enclosures, and solar cell frames.
Anodizing
Our 6 anodizing lines produce uniform oxidation films in various colors (silver, black, gold, champagne) with strict quality inspection processes.
Painting
4 powder spraying lines using high-quality Gema Switzerland nozzles and environmentally friendly paints with strong adhesion and color retention.
CNC Machining
Advanced equipment including 12 PRATIC machining centers, Wegoma cutting machines, 30 punching machines (50-100 ton), and 10 stretch bending machines for precision processing.
Packing and Shipping
Finished products are carefully packaged with protective film and undergo strict warehouse management procedures with detailed inspection before delivery.
Certifications
Company History
- 2004: Recognized Brand of the Building Industry Material Market
- 2006: ISO9001 Certification and Product Exemption from Quality Surveillance Inspection
- 2009: Advanced Company, Jiangsu Famous Brand Certificate
- 2012: Established partnerships with Panasonic and LG
- 2015: Innovative supplier for German clients
- 2017: Developed new baseboard heater products
- 2019: Supplier for world's largest heater manufacturers
- 2023: Expanding global distribution network
Notable Projects
Soccer City Stadium, Johannesburg - Main aluminum supplier for Africa's largest stadium (94,000 seats)
Lobster Trailers - Nordic trailer manufacturer partnership with optimized designs and production processes
School Furniture Project - Supplied aluminum legs for school desks
