Anodized Surface Powder Painted Aluminum HVLS Fan Blade with Customized Color for Industrial Use

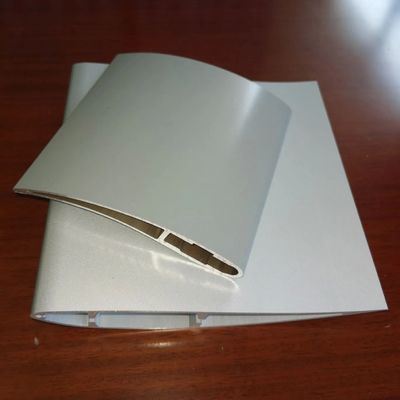

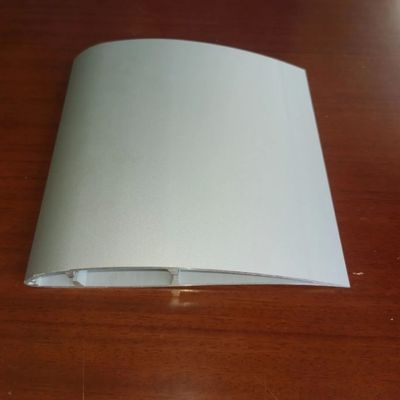

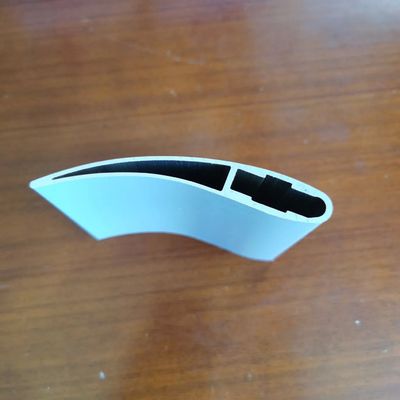

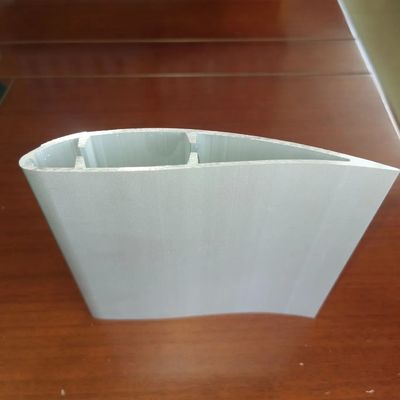

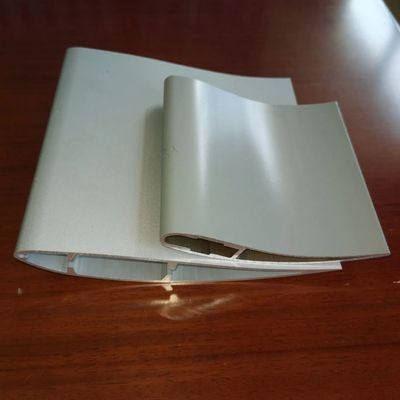

Large Image : Anodized Surface Powder Painted Aluminum HVLS Fan Blade with Customized Color for Industrial Use

Product Details:

Certification:	SONCAP, ISO, RoHS, TUV
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	1

Contact Now

Detailed Product Description

Model NO.:	HVLS Fan Blade Profile	Grade:	6000 Series
Temper:	T3-T8	Alloy:	6063, 6061, 6060, 6005
Surface Finishing:	Anodic Oxidation	Surfacet Treatment:	Anodizing/Powder Painting /Electrophoresis
Polish:	Chemical/Mechanical Polish	Machining:	Tapping, Cutting, Milling
Production Capacity:	50000PCS /Month	Tensile Strength:	160-265Mpa
Yield Strength:	110-245Mpa	Elongation:	≥ 8%
Max Diameter:	600mm	Extrusion Force:	6800ton
Heat Treat:	T4/T5/T6
Highlight:	Anodized Surface HVLS Fan Blade , Powder Painted Aluminum Fan Blade , Customized Color Industrial Fan Blade

6063 6061 6005 6060 6082 Bright Color Anodizing / Powder Painted Aluminum HVLS Fan Blade Profile

MetalPlus specializes in designing and manufacturing custom industrial aluminum extrusion fan blade profiles to meet specific performance and design requirements. With extensive expertise in fan blade profile design, tooling, prototyping, testing, balancing, and large-scale production, we deliver zero-defect aluminum profiles for industrial applications.

Key Features

Multiple alloy options: 6063, 6061, 6060, 6005, 6082
Various heat treatment options: T4/T5/T6
Custom surface treatments: Anodized, Powder Coating, Electrophoresis, Wooden-pattern transfer, Thermal-break, Sand blasting, mechanical polishing
Available in any color per customer specifications
Secure packing with foam and film in bales
Maximum profile diameter of 600mm

Material Specifications

Chemical Composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest
6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	-	0.15	0.1	0.15	Rest
6005	0.6-0.9	0.35	0.1	0.1	0.40-0.6	0.1	0.1	0.1	0.15	Rest

Mechanical Properties:

Alloy	Temper	Tensile strength	Yield strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

Competitive Advantages

Pure 99.7% aluminum materials without scrap
OEM services with custom design and die cutting
Superior surface treatment capabilities
Strict quality control processes
Hard alloy for extended lifespan
Safe and convenient packaging

Technical Support

Our comprehensive services include:

Custom profile design with CAD drawings and 3D models
Design optimization by our professional R&D team
One-stop production from design to surface treatment
Precise control of alloy composition and product accuracy

Production Capabilities

Extrusion:

44 aluminum extrusion lines including a 6800-ton press for profiles up to 600mm diameter. Capable of producing complex industrial profiles including radiators, fan blades, motor enclosures, and solar cell frames.

Anodizing:

6 anodizing lines producing uniform oxidation films in various colors (silver, black, gold, champagne, imitation steel) with enhanced corrosion resistance and hardness.

Painting:

4 powder spraying lines using Gema Switzerland nozzles and environmentally friendly paints with strong adhesion and durable color retention.

CNC Machining:

12 PRATIC machining centers for complex profile machining
Wegoma automatic cutting machines for precise cutting
30 punching machines (50-100 ton capacity)
10 stretch bending/bending machines
10 milling machines for various machining operations

Packing and Shipping

Finished products are carefully packaged with foam and film protection. Our strict warehouse management ensures quality control before delivery.

Certifications

Company History

2004: Recognized Brand of the Building Industry Material Market
2006: ISO9001 Certification
2009: Jiangsu Famous Brand Certificate
2012: Established partnerships with Panasonic and LG
2015: Innovative supplier for German clients
2019: Supplier for world's largest heater manufacturers

Notable Projects

Soccer City Stadium, Johannesburg:

As the main aluminum supplier for Africa's largest stadium (94,000 seats), we contributed to this landmark project that received widespread acclaim.

Lobster Trailers:

Collaboration with this Nordic trailer giant, where our R&D team optimized designs and production processes to enhance performance while reducing costs.
