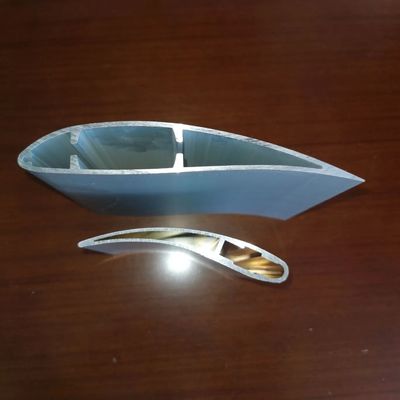

High Precision Aluminum Fan Blade with Customized Size for Industrial Application

Large Image : High Precision Aluminum Fan Blade with Customized Size for Industrial Application

Product Details:

Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	900

Contact Now

Detailed Product Description

Material:	6063,6061,6005,6082,6060,2A12,2024,7075,7055,7150	Temper:	T5/T6
Surface Treatment:	Anodizing	Width:	90mm To 250mm
Tensile Strength:	160Mpa To 265Mpa	Yield Strength:	110Mpa To 245Mpa
Elongation:	≥8%	Film Thickness:	10μm To 25μm
Acid Resistance:	≥9 CASS	Abrasion Resistance:	≥300h
Production Capacity:	50000PCS/Month	Surface Options:	Mill Finish, Powder Coating, Anodizing, Wooden Grain Coating, Polishing, Electrophoresis, PVDF, Sand Blasting
Deep Processing:	Cutting, Drilling, Threading, Bending	Color Options:	Natural Silver, Black, Customizable
Alloy Purity:	99.7%
Highlight:	Customized Size Aluminum Fan Blade , Industrial Application Aluminum Fan Blade , High Precision Aluminum Fan Blade

Aluminum Extrusion Profile for 24FT 20FT 16FT 10FT HVLS Fan Blades / Aluminum Industrial Fan Blade

MetalPlus aluminum extrusion fan blades are designed for industrial applications including warehouse cooling, tower cooling, and production line ventilation. These ultra-thin, high-precision aluminum alloy blades generate exceptional airflow while minimizing noise levels through their optimized blade design.

Premium Quality Aluminum Profiles

Product Specifications

Product Name	Aluminum Fan Blade
Material	6063, 6061, 6005, 6082, 6060, 2A12, 2024, 7075, 7055, 7150 or custom aluminum alloy
Temper	T5/T6
Surface Treatment	Mill finish, powder coating, anodizing, wooden grain coating, polishing, electrophoresis, PVDF, sand blasting
Size	Custom specifications available
Width	90mm to 250mm or customized
Color	Natural silver, black, or custom colors
Application	Building, industrial, and machinery applications
Certification	ISO9001

Technical Specifications

Mechanical Properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

Surface Treatment Specifications

Class	Min-Average Film Thickness (μm)	Min-Part Film Thickness (μm)	CASS	Acid-Resistant (S)	Abrasion Resistance (h)	Class (f, g /μm)
AA10	10	8	16	≥9	≥50	≥300
AA15	15	12	32	≥9	≥75	≥300
AA20	20	16	56	≥9	≥100	≥300
AA25	25	20	72	≥9	≥125	≥300

Competitive Advantages

Manufactured with pure 99.7% aluminum materials (no scrap used)
OEM services available with custom die design for special requirements
Premium surface treatment options to meet exact customer specifications
Strict quality control processes ensure superior product quality
Hard alloy construction for extended lifespan
Secure and convenient packaging solutions
