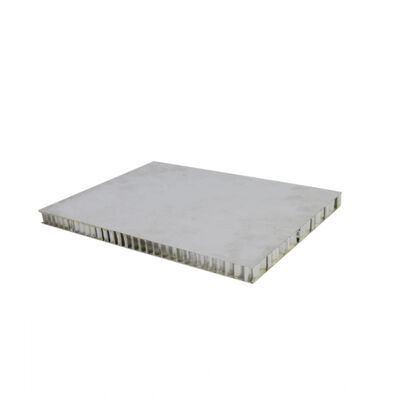

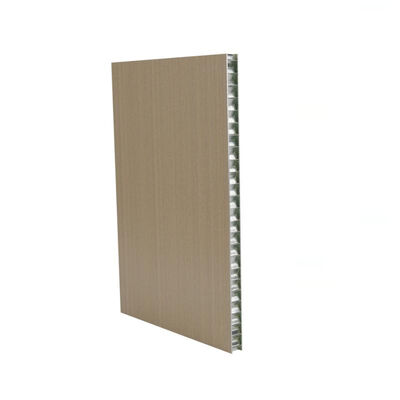

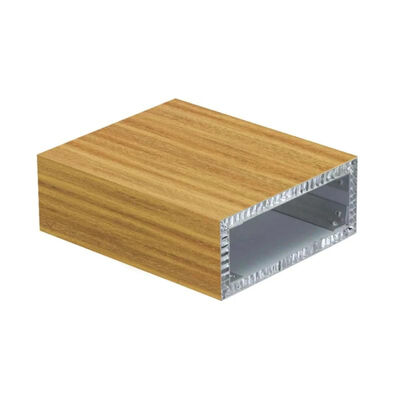

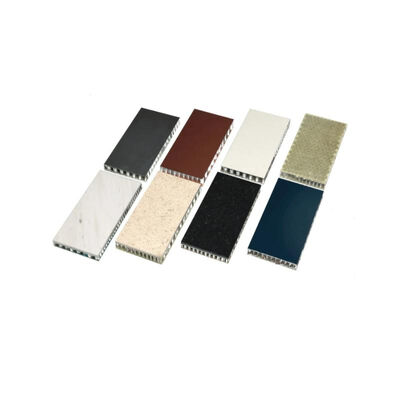

Corrosion Resistant Fireproof B1 Light Weight Aluminium Honeycomb Panel for Building Walls

Large Image : Corrosion Resistant Fireproof B1 Light Weight Aluminium Honeycomb Panel for Building Walls

Product Details:

Certification:	CCC, ISO9001
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	12.5

Contact Now

Detailed Product Description

Model NO.:	Aluminium Honeycomb Panels	Fire Rating:	B1
Width:	1220/1250/1550mm	Length:	Within 6400mm
Panel Thickness:	8mm	Aluminum Thickness:	0.5mm
Transport Package:	Pallet	Specification:	1220*2400mm
Production Capacity:	100000 Ton/ Year	Top Alu Skin:	0.5-1.0mm
Bottom Alu Skin:	0.4-1.0mm	Standard Length:	Any Length Within 6400mm
Extrusion Lines:	44	Max Extrusion Diameter:	350mm
Anodizing Lines:	6
Highlight:	Corrosion Resistant Aluminium Honeycomb Panel , Fireproof B1 Aluminum Core Composite Panel , Light Weight ACC Panel

OEM Corrosion Resistant Aluminium Honeycomb Panels

Top quality corrosion resistant aluminium honeycomb panels designed for building walls with anti-scratch properties. These panels combine aerospace material technology with civil construction applications.

Company Overview

Metalplus specializes in aluminum industrial profile design and manufacturing with a production base exceeding 100,000 square meters and annual capacity over 100,000 tons.

Product Range

Aluminum Profile	Die Casting	ACP
Aluminum Profile System	Die Casting Led Housing	Aluminum Composite Panel
Aluminum Extrusion Enclosure	Stainless Steel Casting
LED Aluminum Extrusion Profiles	Aluminum Casting
Aluminum Frame
Customized Aluminum Profile
Aluminum Heat Sink
Electric Motor Housing Aluminum Profile
Construction Aluminum Profile
Aluminum Extrusion Tube

Product Applications

Aluminum honeycomb panels are suitable for civil construction, vehicle and ship decoration, utilizing aerospace material technology in civil applications. The entire manufacturing process is completed using modern hot press molding technology.

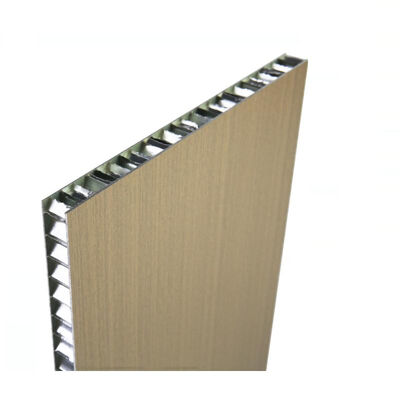

Panel Structure

Technical Specifications

Total Thickness	Top Alu Skin	Bottom Alu Skin	Width	Standard Length
3mm	0.5-1.0mm	0.4-1.0mm	1220/1250/1500mm	Any length within 6400mm
4mm	0.5-1.0mm	0.4-1.0mm	1220/1250/1500mm	Any length within 6400mm
5mm	0.5-1.0mm	0.5-1.0mm	1220/1250/1500mm	Any length within 6400mm
6mm	0.7-1.0mm	0.5-1.0mm	1220/1250/1500mm	Any length within 6400mm
7mm	0.7-1.0mm	0.5-1.0mm	1220/1250/1500mm	Any length within 6400mm
8mm	1.0mm	1.0mm	1220/1250/1500mm	Any length within 6400mm

Technical Support Services

Custom design services including CAD drawings and 3D models for customer confirmation
Professional R&D team for design analysis and optimization to reduce costs and improve performance
Complete one-stop service from product design to surface treatment with quality control throughout

Manufacturing Capabilities

Extrusion

44 aluminum extrusion lines with PLC control systems, capable of producing profiles up to 350mm outer diameter. Largest extruder is 6800 ton unit for profiles up to 600mm diameter.

Anodizing

6 anodizing production lines producing uniform oxidation film thickness in various colors including silver, black, gold, champagne, and imitation steel. Strict quality control ensures consistent color and quality.

Painting

4 powder spraying lines using high-quality Gema Switzerland spray nozzles with environmentally friendly, durable paint featuring strong adhesive force and color retention.

CNC Machining

Advanced machining equipment including 12 PRATIC machining centers, automatic cutting machines from Wegoma, 30 punching machines (50-100 tons), bending machines, and milling machines for complex profile processing.
