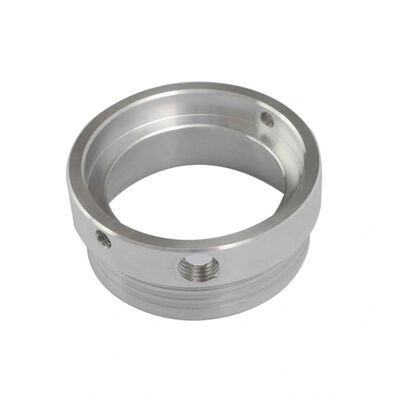

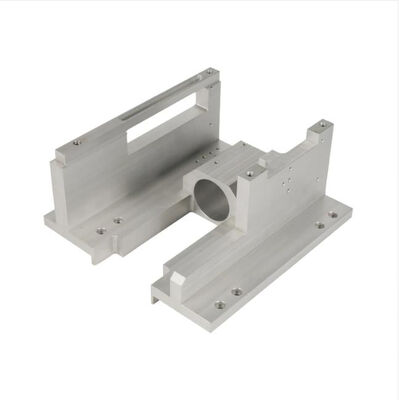

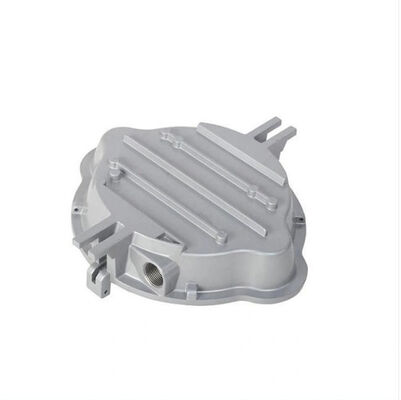

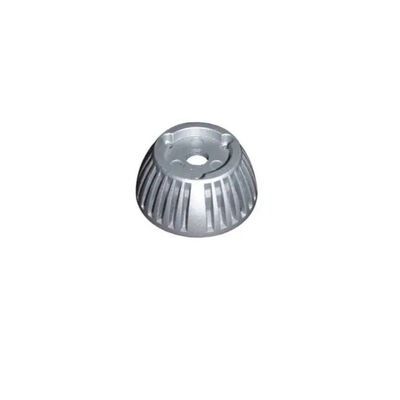

Customized Hardware Accessories Aluminum Pressure Casting Parts
Aluminum is the preferred material for casting lightweight components. Our low pressure casting process ensures high-quality aluminum alloy parts by filling molds and completing solidification under controlled pressure (0.06-0.15MPa). These precision die casting parts serve various industries including hardware, automotive, machinery, and medical equipment.
Product Specifications
| Material |
Aluminum Alloy, Carbon Steel, Alloy Steel, Stainless Steel |
| Process |
Drawings → Mould Making → Die Casting → Rough Machining → CNC Machining → Surface Treatment → Product Checking → Packing → Delivery |
| Casting Dimension Tolerance |
CT7-CT8 |
| Casting Surface Roughness |
Ra 12.5um |
| Casting Weight Range |
0.1-100kg |
| Casting Size |
Max linear size: 1200mm, Max diameter size: 600mm |
| Machining Precision |
Positioning accuracy 0.008mm, Repeat positioning accuracy 0.006mm |
| Machining Surface Roughness |
Ra0.8~6.3um |
| Max Travel Of Spindle |
1800mm x 850mm x 700mm |
| Max Turning Diameter |
1000mm |
| Material Standard |
GB, ASTM, AISI, DIN, BS, JIS, NF, AS, AAR |
| Surface Treatment |
Electroplating, Chrome Plating, Zinc Plating, Nickel plating, Electrophoresis, Anodization, Polishing, Powder coating, Sandblasting, Passivation, Spray painting, etc. |
| Casting Process Types |
High Pressure Die Casting (HPDC), Vertical Low Pressure Die Casting (LPDC), Precision Sand Casting, Lost Foam Casting, Investment Casting, Metal Casting |
| Service Available |
OEM & ODM |
| Quality Control |
0 defects, 100% inspection before packing |
| Application |
Train & railway, automobile & truck, construction machinery, forklift, agricultural machinery, shipbuilding, petroleum machinery, construction, valve and pumps, electric machine, hardware, power equipment |
| MOQ |
1 TON |
| Payment Terms |
T/T, L/C at sight |
| Port |
SHANGHAI PORT |
Our Manufacturing Advantages
17+ Years Experience
Extensive expertise in aluminum extrusion and manufacturing
Advanced Design Capabilities
Strong R&D team for fast design, extrusion, CNC machining, milling, and turning
Complete Processing Facilities
Comprehensive metal processing including stamping, laser cutting, CNC bending, and welding
Quality Assurance
Strict control throughout manufacturing process for long-term stability and excellent quality
Technical Support Services
Complete Design & Production Support
- Custom design services for extruded profiles with CAD drawings and 3D models
- Professional R&D team for design analysis and optimization
- One-stop service from product design to surface treatment
- Raw material composition control and production process accuracy maintenance
Factory Equipment & Capabilities
Extrusion Facilities
Equipped with 44 aluminum extrusion lines with PLC control systems, capable of producing commercial and industrial aluminum profiles up to 350mm outer diameter. Our largest 6800-ton extruder handles complex industrial profiles up to 600mm diameter for applications including radiators, fan blades, motor enclosures, and solar cell frames.
Anodizing Department
6 anodizing production lines creating uniform oxidation films for enhanced corrosion resistance, hardness, and wear resistance. Available in silver, black, gold, champagne, and imitation steel colors with custom options. Strict quality control ensures consistent batch quality.
Painting Facilities
4 powder spraying lines equipped with Gema Switzerland nozzles, using environmentally friendly paints with strong adhesion and durable color retention.
CNC Machining Center
Advanced machining equipment operated by experienced technicians ensuring precision and quality:
- 12 PRATIC machining centers for multi-angle milling, drilling, and tapping of profiles up to 6 meters
- Fully automatic Wegoma cutting machines for precise, efficient cutting
- 30 punching machines (50-100 tons capacity) for thick profiles over 5mm
- 10 stretch bending machines for precise arc and angle bending
- 10 milling machines for various plane, bevel, and groove machining
Quality Assurance & Packaging
Manual packaging with strict warehouse management procedures. Comprehensive inspection before delivery with detailed transaction records and product examination.
Certifications
Company History & Milestones
2004 - Recognized brand of building industry material market
2006 - Product exemption from quality surveillance inspection & ISO9001 certification
2009 - Advanced company, Jiangsu famous brand, credible product of quality in Jiangsu Province
2012 - Established business relationships with Panasonic and LG
2015 - Innovative producer and supplying partner for European clients
2017 - Developed new baseboard heater products
2019 - Cooperated with world's largest heater manufacturers, supplying aluminum shells
2023 - Expanding overseas distributor network for win-win market benefits
Notable Projects
Soccer City Stadium, Johannesburg
Main aluminum supplier for Africa's largest capacity stadium (94,000 seats). Our aluminum components contributed to this major South African construction project.
Lobster Trailers Partnership
Collaboration with Nordic trailer giant featuring design optimization, excellent processing equipment, and advanced technology to minimize production costs while improving product performance.
Educational Furniture Supply
Supplied aluminum legs for school desks through local customer Dadn, supporting educational infrastructure projects with strong design capabilities and mature manufacturing techniques.
