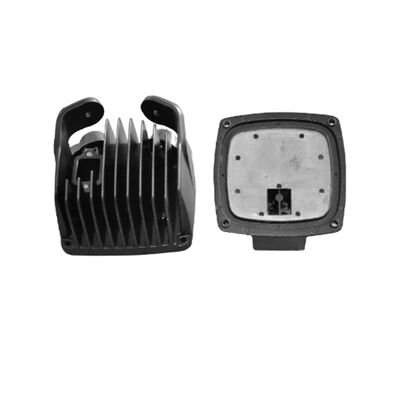

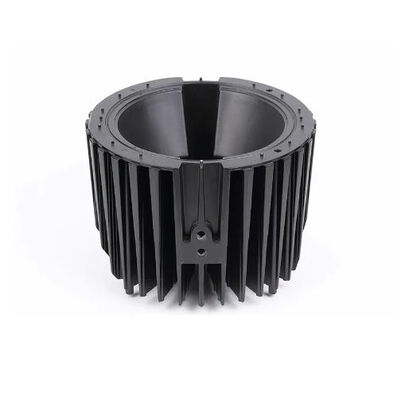

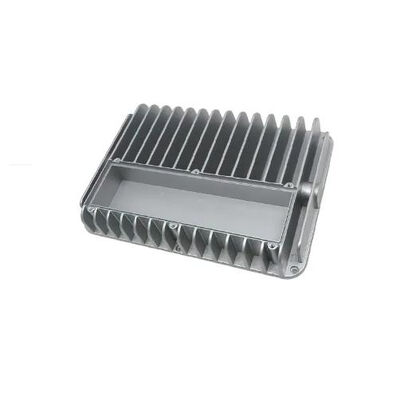

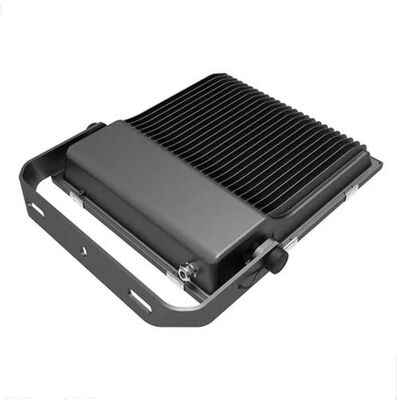

Exhibition LED Flood Light Aluminum Housing Casting
Metalplus specializes in aluminum industrial profile design and manufacturing with a production base of more than 100,000 square meters and annual capacity exceeding 100,000 tons.
Product Portfolio
| Aluminum Profile |
Die Casting |
- Aluminum Profile System
- Aluminum Extrusion Enclosure
- LED Aluminum Extrusion Profiles
- Aluminum Frame
- Customized Aluminum Profile
- Aluminum Heat Sink
- Electric Motor Housing Aluminum Profile
- Construction Aluminum Profile
- Aluminum Extrusion Tube
|
- Die Casting LED Housing
- Stainless Steel Casting
- Aluminum Casting
- ACP | Aluminum Composite Panel
|
Aluminum Casting Technology
Aluminum is the primary material for producing lightweight parts through casting processes. Our low pressure casting technology fills aluminum molds and completes solidification under controlled pressure (0.06-0.15MPa), ensuring high-quality castings suitable for hardware components, automotive motor parts, machinery components, and medical equipment.
Technical Specifications
| Parameter |
Specifications |
| Material |
Aluminum Alloy, Carbon Steel, Alloy Steel, Stainless Steel |
| Process |
Drawings → Mould Making → Die Casting → Rough Machining → CNC Machining → Surface Treatment → Product Checking → Packing → Delivery |
| Casting Dimension Tolerance |
CT7-CT8 |
| Casting Surface Roughness |
Ra 12.5um |
| Casting Weight Range |
0.1-100kg |
| Casting Size |
Max linear size: 1200mm, Max diameter size: 600mm |
| Machining Precision |
Positioning accuracy 0.008mm, Repeat positioning accuracy 0.006mm |
| Machining Surface Roughness |
Ra0.8~6.3um |
| Max Travel Of Spindle |
1800mm x 850mm x 700mm |
| Max Turning Diameter |
1000mm |
| Material Standard |
GB, ASTM, AISI, DIN, BS, JIS, NF, AS, AAR |
| Surface Treatment |
Electroplating, Chrome Plating, Zinc Plating, Nickel plating, Electrophoresis, Anodization, Polishing, Powder coating, Sandblasting, Passivation, Spray painting |
| Casting Process Types |
High Pressure Die Casting (HPDC), Vertical Low Pressure Die Casting (LPDC), Precision Sand Casting, Lost Foam Casting, Investment Casting, Metal Casting |
| Service Available |
OEM & ODM |
| Quality Control |
0 defects, 100% inspection before packing |
| Application |
Train & railway, automobile & truck, construction machinery, forklift, agricultural machinery, shipbuilding, petroleum machinery, construction, valve and pumps, electric machine, hardware, power equipment |
| MOQ |
1 TON |
| Payment Terms |
T/T, L/C at sight |
| Port |
Shanghai Port |
Company Advantages
17+ years manufacturing experience in aluminum extrusion
Strong design capabilities with fast extrusion, CNC machining, milling, and turning
Complete metal processing machines including laser cutting, CNC bending, and welding
Comprehensive quality control throughout manufacturing process
Technical Support Services
Complete One-Stop Service
- Custom design services including CAD drawings and 3D models
- Professional R&D team for design analysis and optimization
- End-to-end production: product design, mold customization, aluminum bar melting, extrusion profiling, precision machining, and surface treatment
- Raw material composition control and production process accuracy maintenance
Manufacturing Capabilities
Extrusion Operations
44 aluminum extrusion lines with PLC control systems, including a 6800-ton extruder capable of producing industrial profiles up to 600mm diameter for radiators, industrial fan blades, motor enclosures, and solar cell frames.
Anodizing Facilities
6 anodizing production lines creating uniform oxidation films in silver, black, gold, champagne, and imitation steel colors with enhanced corrosion resistance and hardness.
Painting Services
4 powder spraying lines using Gema Switzerland nozzles with environmentally friendly, durable paint featuring strong adhesion and color retention.
CNC Machining
Advanced machining equipment including 12 PRATIC machining centers for profiles up to 6 meters, automatic cutting machines, 30 punching machines (50-100 tons), bending machines, and milling machines for complex profile processing.
Packaging & Shipping
Manual packaging with strict warehouse management procedures and comprehensive quality examination before delivery.
Quality Certifications
Company History & Milestones
- 2004: Recognized brand of building industry material market
- 2006: Product exemption from quality surveillance inspection certificate and ISO9001 certification
- 2009: Advanced company, Jiangsu famous brand certificate, credible product of quality in Jiangsu Province
- 2012: Established business relationships with Panasonic and LG
- 2015: Innovative producer and supplying partner for European clients
- 2017: Developed new baseboard heater products
- 2019: Supplied aluminum shells for world's largest heater manufacturers
- 2023: Expanding overseas distributor network for market growth
Notable Projects
Soccer City Stadium, Johannesburg
Main aluminum supplier for Africa's largest capacity stadium (94,000 seats), contributing to this major South African construction project.
Lobster Trailers Partnership
Collaboration with Nordic trailer giant featuring design optimization and advanced processing to minimize production costs and enhance product performance.
School Furniture Project
Supplied aluminum legs for school desks through strong design capabilities and mature manufacturing techniques, supporting local customer tender success.
