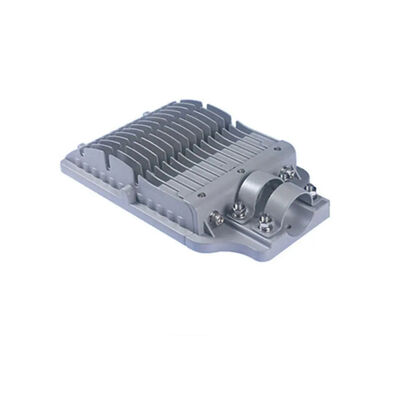

Customized Dimensions Aluminum Casting LED Lighting Heatsink with CNC Machining and Aluminum Alloy Construction

Large Image : Customized Dimensions Aluminum Casting LED Lighting Heatsink with CNC Machining and Aluminum Alloy Construction

Product Details:

Certification:	ISO 9001:2000
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	1.99

Contact Now

Detailed Product Description

Material:	Aluminum Alloy	Tolerance Grade:	7
Surface Quality:	12.5	Processing Method:	Pressure Casting
Alloy Composition:	6063, 6061, 6082, 6005	Temper:	T5, T6
Surface Treatment:	Anodized, Powder Coated, Electrophoresis	Tensile Strength:	160-265Mpa
Yield Strength:	110-245Mpa	Elongation:	≥8%
Extrusion Capacity:	100,000 Tons/year	Max Extrusion Diameter:	600mm
CNC Machining:	Milling, Drilling, Tapping	Anodizing Lines:	6
Powder Coating Lines:	4
Highlight:	Customized Dimensions Aluminum Casting , CNC Machining LED Lighting Heatsink , Aluminum Alloy Aluminum Die Casting

LED Lighting Heatsink Floodlight Downlight Aluminum Casting

Metalplus specializes in aluminum industrial profile design and manufacturing with a production base of more than 100,000 square meters and annual capacity exceeding 100,000 tons.

Product Range

Aluminum Profile	Aluminum Fan Blade Profiles
Aluminum Profile System	Aluminum Extrusion Enclosure
LED Aluminum Extrusion Profiles	Aluminum Frame
Customized Aluminum Profile	Aluminum Heat Sink
Electric Motor Housing Aluminum Profile	Construction Aluminum Profile
Aluminum Extrusion Tube	Die Casting
Die Casting LED Housing	Stainless Steel Casting
Aluminum Casting	ACP (Aluminum Composite Panel)

Product Specifications

Material: Aluminum alloy 6063, 6061, 6061, 6082, 6005 or according to requirement
Temper: T5, T6
Quality Standard: GB5237-2008
Surface Treatment: Mill finish, anodized, powder coated, electrophoresis, sand blasting, PVDF coating, wood grain painting, matted, polishing bright
Available Colors: Silver, Bronze, Champagne, Matte, Natural for anodizing, RAL for powder coating
Packing: Protected film inside and shrinking film outside
Samples Time: Two weeks after receiving mold fee
Delivery: 20 days after deposit
Production Capacity: 100,000 tons/year
MOQ: 1 TON
Payment Terms: T/T, L/C at sight
Port: Shanghai Port
Equipment: 17 press extruders
Services: OEM & ODM service

Manufacturing Process

Die Design → Die Making → Extruding → Cutting → CNC Machining → Surface Treatment → Packing

Company Advantages

17+ Years Experience

Extensive expertise in aluminum extrusion manufacturing

Advanced Design & Manufacturing

Strong capabilities in design, extrusion, CNC machining, milling, and turning

Complete Processing Facilities

Comprehensive metal processing including laser cutting, CNC bending, and welding

Quality Control

Strict process control ensuring long-term stability and excellent quality

We export the majority of our customized products to the United States and Europe, building long-term relationships with satisfied customers.

Product Parameters

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest
6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	-	0.15	0.1	0.15	Rest
6005	0.6-0.9	0.35	0.1	0.1	0.40-0.6	0.1	0.1	0.1	0.15	Rest

Mechanical Properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
6063	T5	≥ 160 MPa	≥ 110 MPa	≥ 8%
6063	T6	≥ 205 MPa	≥ 180 MPa	≥ 8%
6061	T6	≥ 265 MPa	≥ 245 MPa	≥ 8%

Technical Support

Custom design services including CAD drawings and 3D models for customer confirmation
Professional R&D team for design analysis and optimization to reduce production costs
One-stop service from product design to surface treatment with complete quality control

Factory Equipment & Capabilities

Extrusion

44 aluminum extrusion lines with PLC control systems, including a 6800-ton unit capable of producing profiles up to 600mm diameter for radiators, industrial fan blades, motor enclosures, and solar cell frames.

Anodizing

6 anodizing production lines producing uniform oxidation films in silver, black, gold, champagne, and imitation steel colors with strict quality inspection.

Painting

4 powder spraying lines using high-quality Gema Switzerland nozzles with environmentally friendly, durable paint.

CNC Machining

12 PRATIC machining centers for milling, drilling, and tapping of profiles up to 6 meters
Fully automatic cutting machines from Wegoma for precise cutting with high efficiency
30 punching machines (50-100 tons) and 10 stretch bending machines
10 milling machines for complex machining requirements

Packing & Shipping

Strict warehouse management with manual packaging and comprehensive quality examination before delivery.

Company History & Milestones

2004: Recognized brand of the building industry material market
2006: ISO9001 certification and product quality surveillance exemption
2009: Advanced company status and Jiangsu famous brand certification
2012: Established business relationships with Panasonic and LG
2015: Innovative producer and supplier for European clients
2017: Developed new baseboard heater products
2019: Supplier for world's largest heater manufacturers
2023: Expanding overseas distributor network for win-win benefits

Notable Projects

Soccer City Stadium, Johannesburg

Main aluminum supplier for Africa's largest capacity stadium (94,000 seats), contributing to this major South African construction project.

Lobster Trailers

Collaboration with Nordic trailer giant, providing design optimization and manufacturing services to minimize production costs and improve product performance.

Dadn School Project

Supplier of aluminum legs for school desks, supporting local customer in winning school project bids through strong design and mature technology.
